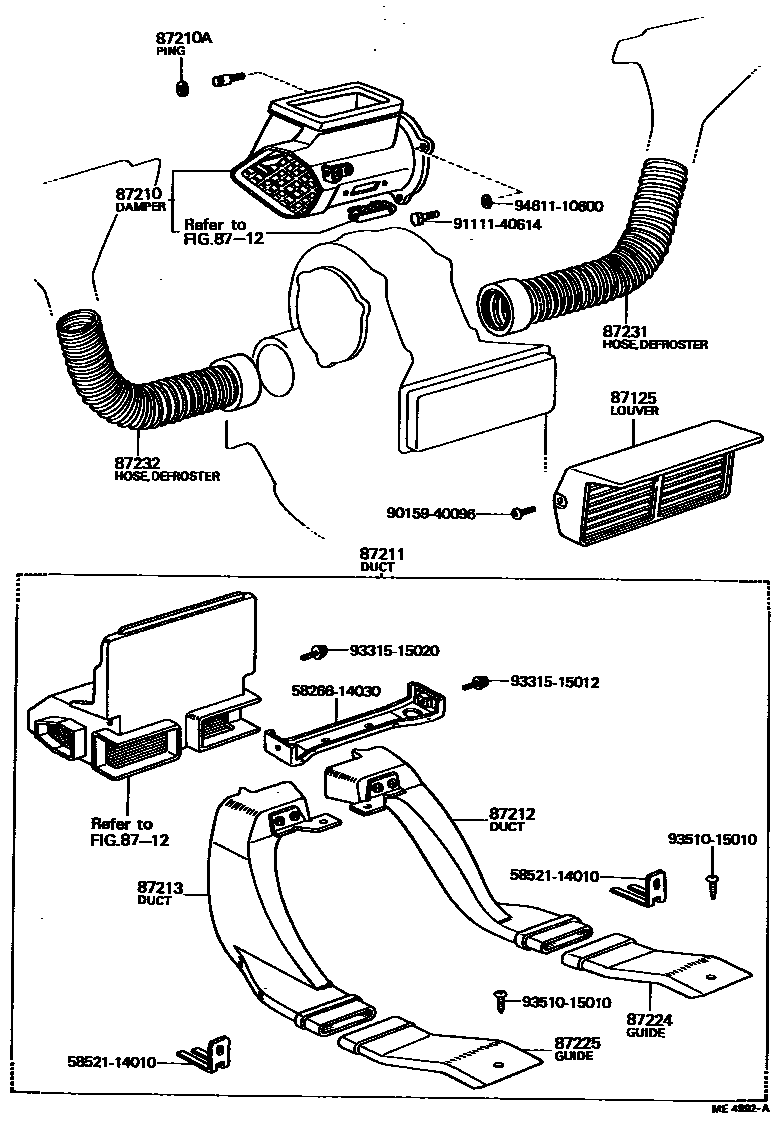

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

8712

87125LOUVER, VENTILATION

main58902-14010iTA1#197208-197509

main87125-14010iTA1#197012-197109

main87125-14011iTA1#197109-197207

main87125-14020iTA1#197012-197207

FOR BOOST VENTILATOR

sub87125-22010

87210DAMPER ASSY, AIR

main87210-14010iTA12..RHD197208-197306

sub87210-14011

main87210-14011iTA12..RHD197306-197509

main87210-14020iTA1#..LHD197208-197306

sub87210-14021

main87210-14021iTA1#..LHD197306-197509

main87210-20020iTA1#..RHD197012-197207

main87210-20030iTA1#..LHD197012-197207

87210ARING, SNAP(FOR HEATER AIR DAMPER)

main90099-07016iTA1#197012-197509

87211DUCT, AIR, NO.1

main87201-14010iTA1#197401-197509

main87201-14020iTA14..RHD197510-197707

main87201-14030iTA14..LHD197510-197707

87212DUCT, AIR, REAR NO.1

main87202-14010iTA14197510-197707

main87212-14010iTA1#197401-197509

87213DUCT, AIR, REAR NO.2

main87212-14030iTA1#197401-197509

87224GUIDE, AIR DUCT, RH

main87212-14020iTA1#197401-197509

87225GUIDE, AIR DUCT, LH

main87212-14040iTA1#197401-197509

87231HOSE, HEATER DEFROSTER, RH

main87231-14010iTA1#..RHD197012-197110

sub87231-14011

main87231-14011iTA1#..RHD197110-197509

main87231-14020iTA1#..LHD197110-197509

FOR BOOST VENTILATOR

main87231-20070iTA1#..LHD197012-197110

87232HOSE, HEATER DEFROSTER, LH

main87231-14020iTA1#..LHD197110-197509

main87231-14020iTA1#197401-197509

FOR BOOST VENTILATOR

main87231-14030iTA1#..RHD197110-197509

main87231-14040iTA1#..LHD197401-197410

main87231-20070iTA1#..LHD197012-197110

main87232-20060iTA1#..RHD197012-197110

5826614030BRACKET, CONSOLE BOX SUPPORT, FRONT

main58266-14030

5852114010HOOK, MALE, NO.1

main58521-14010

9015940096

main90159-40096

9111140614

main91111-40614

9331515012

main93315-15012

9331515020

main93315-15020

9351015010

main93510-15010

9461110600

main94611-10600

19 parts on this diagram · 3 diagrams in section
