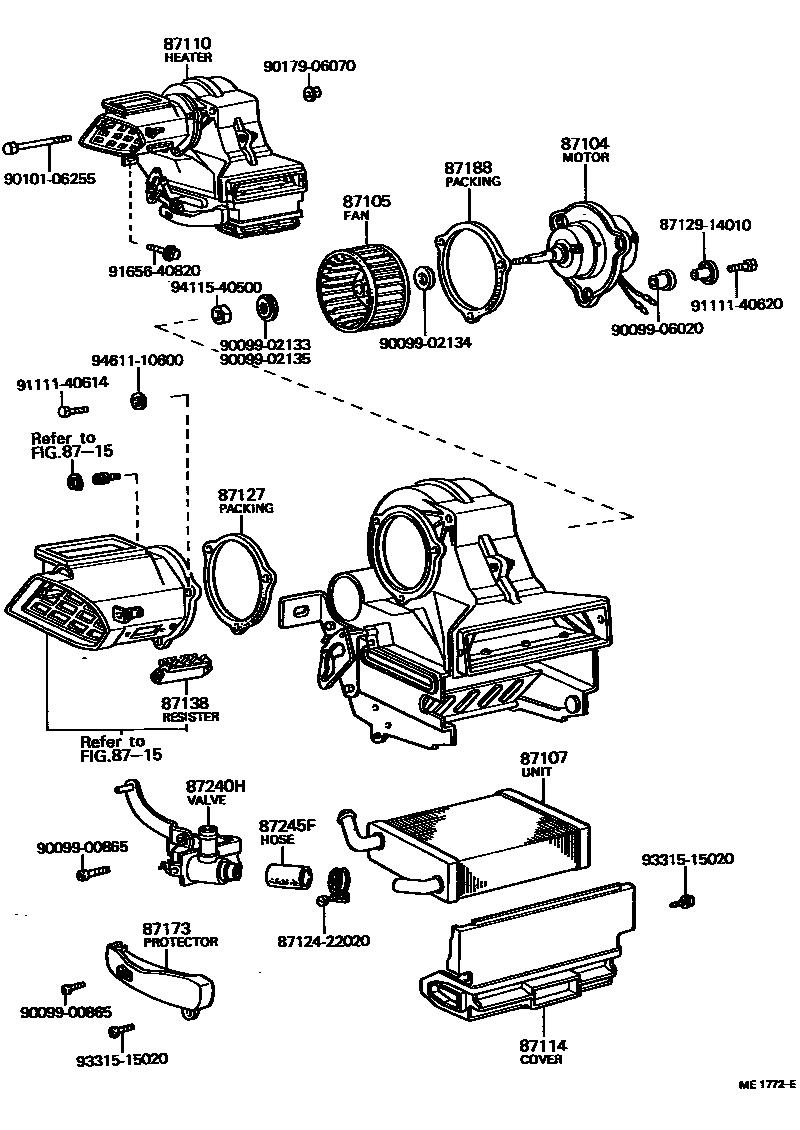

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1 0004 1 0005 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-14010iTA1#..RHD197012-197207

main87104-14011iTA12..RHD197208-197509

main87104-14020iTA1#..LHD197012-197207

main87104-14021iTA1#..LHD197208-197509

main87104-14040iTA14..RHD197510-197707

main87104-14050iTA14..LHD197510-197707

main87104-20060iTA12..RHD197208-197509

W/BOOST VENTILATOR OR COOLER

sub87104-14030

main87104-20070iTA1#..LHD197208-197408

W/BOOST VENTILATOR OR COOLER

sub87104-22050

main87104-22010iTA1#..RHD197012-197207

W/BOOST VENTILATOR OR COOLER

main87104-22020iTA1#..LHD197012-197207

W/BOOST VENTILATOR OR COOLER

main87104-22050iTA1#..LHD197409-197509

HEAVY DUTY HT.OR BOOST VENT.

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14010iTA14..LHD197510-197707

sub87105-14030

main87105-20080iTA14..RHD197510-197707

sub87105-14020

main87105-22010iTA1#..RHD197012-197509

main87105-22020iTA1#..LHD197012-197509

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-14010iTA1#197012-197509

main87107-14040iTA1#197409-197509

HEAVY DUTY HEATER

main87107-14050iTA14..RHD197510-197707

main87107-14060iTA14..LHD197510-197707

sub87107-14080

main87107-14070iTA14..LHD197510-197707

HEAVY DUTY HEATER

sub87107-14080

87110HEATER ASSY

main87110-14010iTA1#..RHD197012-197112

main87110-14011iTA1#..RHD197112-197205

main87110-14012iTA1#..RHD197205-197207

sub87110-14013

main87110-14013iTA12..RHD197208-197509

main87110-14030iTA1#..LHD197012-197108

sub87110-14031

main87110-14031iTA1#..LHD197108-197112

sub87110-14033

main87110-14032iTA1#..LHD197112-197205

sub87110-14033

main87110-14033iTA1#..LHD197205-197207

main87110-14034iTA1#..LHD197208-197308

sub87110-14035

main87110-14035iTA1#..LHD197308-197509

main87110-14042iTA1#..LHD197112-197205

W/COOLER

sub87110-14043

main87110-14043iTA1#..LHD197205-197207

W/COOLER

main87110-14044iTA1#..LHD197208-197308

W/COOLER

main87110-14045iTA1#..LHD197308-197409

W/COOLER

main87110-14046iTA1#..LHD197409-197509

HEAVY DUTY HEATER,W/COOLER

main87110-14100iTA1#..LHD197409-197509

HEAVY DUTY HEATER

sub87110-14046

87114COVER, HEATER

main87114-14010iTA1#197012-197509

main87114-14020iTA1#197401-197509

FOR REAR DUCT

87127PACKING, HEATER AIR DAMPER

main87127-22010iTA1#197012-197509

87138RESISTOR, HEATER BLOWER

main87138-14010iTA1#197208-197509

main87138-14020iTA14197510-197707

main87138-22010iTA1#197012-197207

8715

87173PROTECTOR, WATER VALVE, HEATER

main87115-14010iTA1#197012-197205

main87173-14010iTA1#197205-197509

main87173-14020iTA1#..LHD197308-197509

87188PACKING, HEATER BLOWER MOTOR

main87128-22010iTA1#197012-197509

87240HVALVE ASSY, WATER UNIT

main87240-14010iTA1#197012-197112

sub87240-14011

sub87240-14020

main87240-14011iTA1#..RHD197112-197202

sub87240-14012

sub93315-15020

main87240-14012iTA1#..RHD197202-197509

main87240-14020iTA1#..LHD197109-197202

sub87240-14021

sub87245-14012

sub87245-14020

main87240-14021iTA1#..LHD197202-197308

main87240-14022iTA1#..LHD197308-197509

87245FHOSE, HEATER WATER, INLET F

main99552-30055iTA1#197012-197509

L=55

sub99552-30075

8712422020CLAMP, HEATER

main87124-22020

8712914010

main87129-14010

9009900865

main90099-00865

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9009906020

main90099-06020

9010106255

main90101-06255

9017906070

main90179-06070

9111140614

main91111-40614

9111140620

main91111-40620

9165640820

main91656-40820

9331515020

main93315-15020

9411540500

main94115-40500

9461110600

main94611-10600

27 parts on this diagram · 5 diagrams in section
