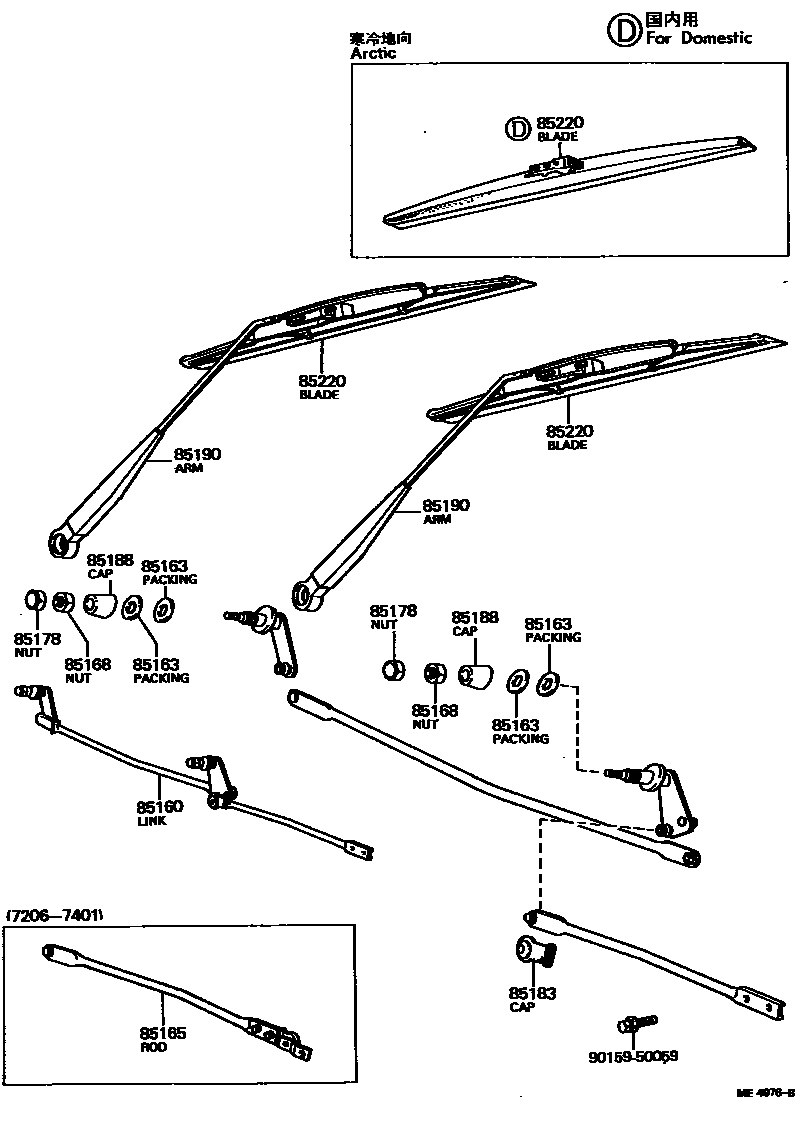

WINDSHIELD WIPER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

85160LINK ASSY, WINDSHIELD WIPER

main85160-14051iTA14..RHD197510-197707

main85160-14061iTA14..LHD197510-197707

main85160-20040iTA1#..RHD197012-197206

main85160-20041iTA1#..RHD197206-197304

main85160-20042iTA12..RHD197304-197509

main85160-20050iTA1#..LHD197012-197206

main85160-20051iTA1#..LHD197206-197304

main85160-20052iTA1#..LHD197304-197509

85163PACKING, WINDSHIELD WIPER PIVOT

main85163-20040iTA1#197012-197509

85165ROD, WINDSHIELD WIPER LINK W/CRANK

main85166-20040iTA1#..RHD197206-197304

main85166-20042iTA12..RHD197304-197509

main85166-20050iTA1#..LHD197206-197304

main85166-20052iTA1#..LHD197304-197509

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85186-12090iTA1#197506-197509

main85186-12170iTA14197609-197707

BLACK,EUR.SPEC.

sub85186-12171

main85186-12210iTA14197510-197707

sub85186-12171

main85186-20040iTA1#197012-197506

sub85186-12090

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08005iTA1#197506-197610

main90176-08008iTA1#197012-197401

sub90176-08005

main90176-08012iTA14197610-197707

main90176-08018iTA1#197401-197506

sub90999-99052

main90176-08019iTA14197609-197707

BLACK,EUR.SPEC.

85183CAP OR ROD, WINDSHIELD WIPER SHIELD

main85183-30030iTA1#197206-197207

sub85183-30031

main85183-30031iTA1#197208-197509

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85179-14050iTA14197510-197707

sub85179-14080

main85179-14080iTA14197609-197707

BLACK,EUR.SPEC.

main85185-20040iTA1#197012-197509

sub85179-20040

85190ARM ASSY, WINDSHIELD WIPER

main85190-14090iTA12..ST197208-197509

WIRE TYPE

sub85190-14H91

main85190-14120iTA14..RHD..(DLX,STD)197610-197707

sub85190-12221

main85190-14130iTA14..LHD197610-197707

main85190-14140iTA14..RHD..(DLX,STD)197609-197707

BLACK,EUR.SPEC.

main85190-14150iTA14..RHD..ST197609-197707

BLACK,EUR.SPEC.

main85190-14220iTA14..RHD..ST197610-197707

main85190-14230iTA14..LHD197609-197707

BLACK,EUR.SPEC.

main85190-20140iTA1#..RHD197012-197401

sub85190-20130

main85190-20150iTA1#..LHD..(DLX,STD)197012-197401

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12140iTA14..RHD..(DLX,STD)197609-197707

BLACK,EUR.SPEC.

main85220-12190iTA14..LHD..(DLX,STD)197609-197707

BLACK,EUR,SPEC.

main85220-14011iTA12..ST197208-197509

WIRE TYPE

main85220-14060iTA14..RHD..ST197610-197707

main85220-14070iTA14..LHD..ST197610-197707

main85220-14080iTA14..RHD..ST197609-197707

BLACK,EUR.SPEC.

main85220-14090iTA14..LHD..ST197609-197707

BLACK,EUR.SPEC.

main85220-20050iTA1#..DLX,STD197012-197401

main85220-20070iTA14..RHD..(DLX,STD)197610-197707

sub85220-12140

main85220-20090iTA14..LHD..(DLX,STD)197610-197707

9015950059

main90159-50059

10 parts on this diagram · 6 diagrams in section
