WIRING & CLAMP

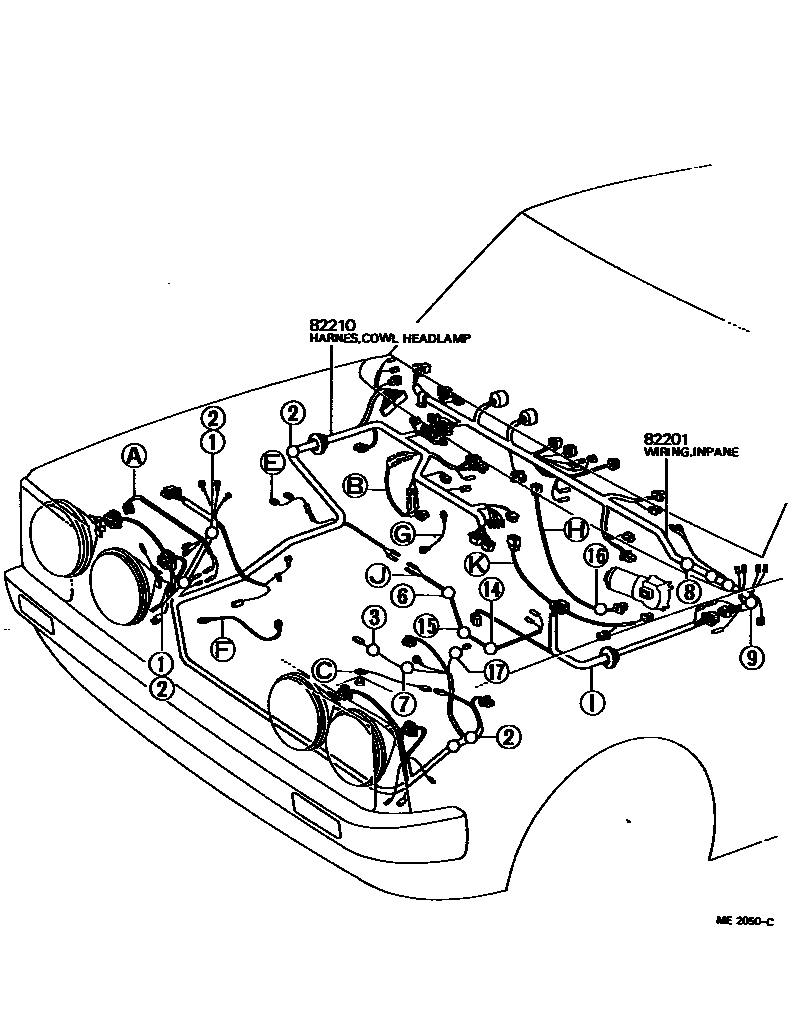

Parts diagram
82201WIRING SUB-ASSY, INSTRUMENT PANEL
main82201-14110i197012-197207
main82201-14111i197208-197401
main82201-14112i197401-197509
main82201-14120i197012-197207
main82201-14121i197208-197401
sub82201-14111
main82201-14122i197401-197509
sub82201-14112
main82201-14140i197012-197207
main82201-14141i197208-197401
main82201-14142i197401-197509
main82201-14150i197012-197207
main82201-14151i197208-197401
sub82201-14141
main82201-14152i197401-197509
sub82201-14142
82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
main82210-14100i197012-197207
main82210-14101i197208-197401
main82210-14102i197401-197509
main82210-14110i197012-197207
main82210-14111i197208-197401
main82210-14112i197401-197501
main82210-14113i197501-197509
main82210-14350i197510-197707

2 parts on this diagram · 9 diagrams in section
