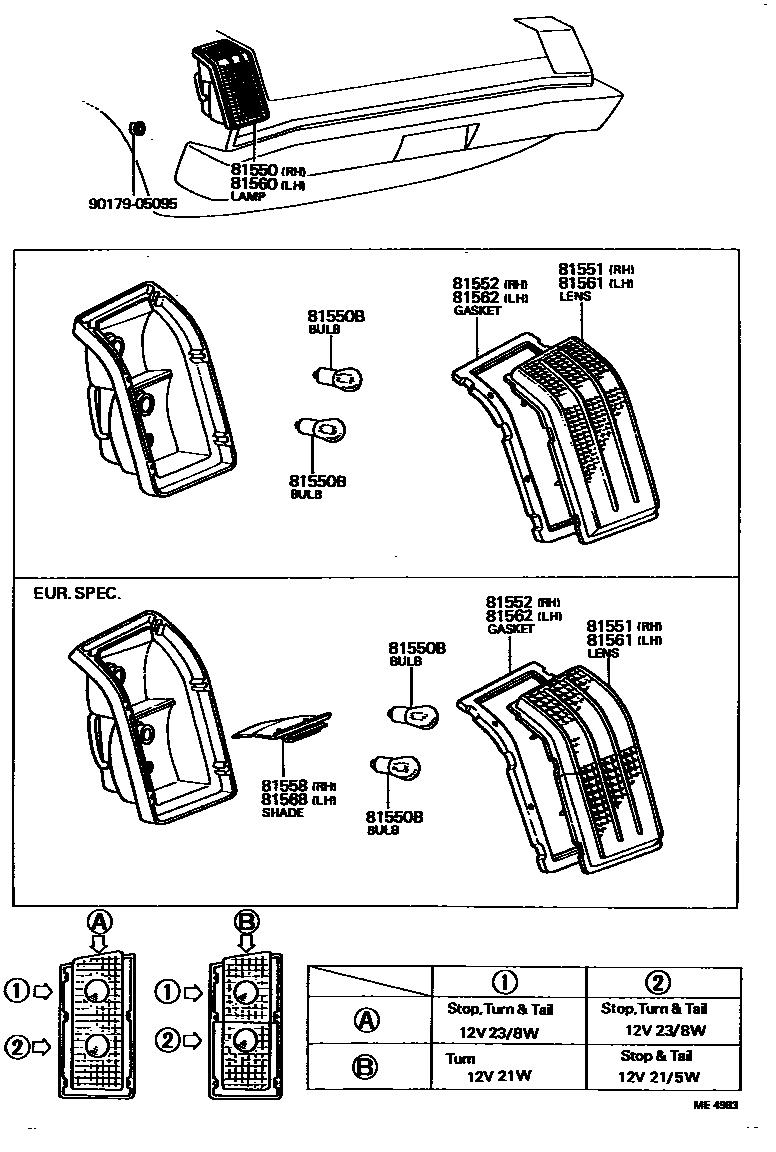

REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
AMBER-RED,IKI
AMBER-RED,KOITO
RED,KOITO
RED,IKI
EUR.SPEC.AMBER-RED
81550BBULB(FOR REAR COMBINATION LAMP)
12V 21W,12V 23W
12V 21W,12V 21W,EUR.SPEC.
12V 21W,12V 21W
12V 21/5W,12V 21/5W
12V 21/5W,12V 21/5W,EUR.SPEC.
12V 23/8W,12V 23/8W
81551LENS, REAR COMBINATION LAMP, RH
RED,KOITO
RED,IKI
EUR.SPEC.AMBER-RED
AMBER-RED,IKI
AMBER-RED,KOITO
81552GASKET, REAR COMBINATION LAMP LENS, RH
KOITO
KOITO
IKI
IKI
81558SHADE, REAR COMBINATION LAMP, NO.1 RH
KOITO
IKI
EUR.SPEC.
81560LAMP ASSY, REAR COMBINATION, LH
AMBER-RED,IKI
AMBER-RED,KOITO
RED,KOITO
RED,IKI
EUR.SPEC.AMBER-RED
81561LENS, REAR COMBINATION LAMP, LH
RED,KOITO
RED,IKI
EUR.SPEC.AMBER-RED
AMBER-RED,IKI
AMBER-RED,KOITO
81562GASKET, REAR COMBINATION LAMP LENS, LH
KOITO
KOITO
IKI
IKI
81568SHADE, REAR COMBINATION LAMP, NO.1 LH
KOITO
IKI
EUR.SPEC.
9017905095
main90179-05095
10 parts on this diagram · 2 diagrams in section
