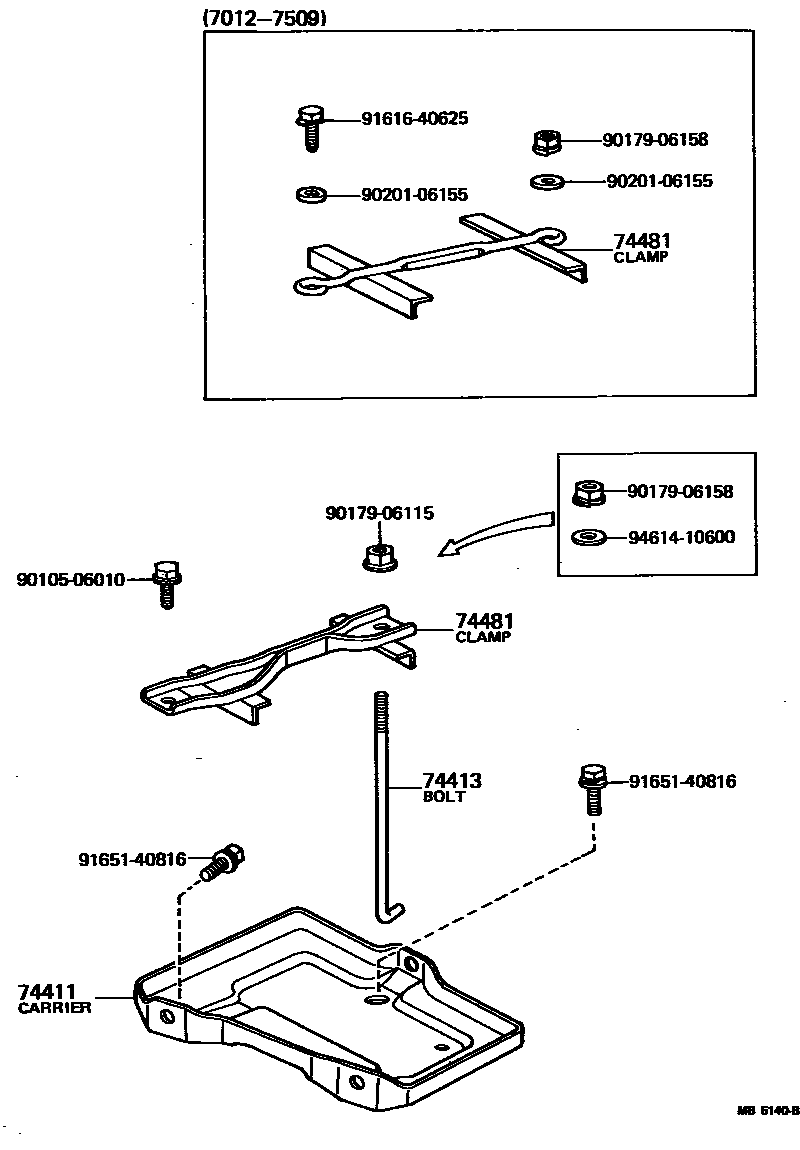

BATTERY CARRIER

74411CARRIER, BATTERY

main74403-14010iTA1#197401-197509

FOR NS40ZL

main74403-14020iTA1#197401-197509

FOR N40L

main74403-14030iTA1#197401-197509

FOR N50ZL

main74411-14010iTA1#197012-197401

FOR NS40ZL

sub74411-14030

main74411-14020iTA1#197012-197401

FOR N50ZL

main74411-14030iTA1#197012-197401

FOR N40L

main74411-14041iTA14197510-197707

FOR NS40ZL

main74411-14051iTA14197510-197707

FOR N40L

main74411-14061iTA14197510-197707

FOR N50ZL

74413BOLT, BATTERY CLAMP

main74413-20030iTA14197510-197707

main74451-30040iTA1#197012-197509

sub74451-16040

74481CLAMP, BATTERY HOLD DOWN

main74404-14010iTA1#197012-197401

FOR NS40ZL

main74404-14011iTA1#197401-197509

FOR NS40ZL

main74404-14012iTA14197510-197707

FOR NS40ZL

main74404-14020iTA1#197012-197401

FOR N50ZL

main74404-14021iTA1#197401-197509

FOR N50ZL

main74404-14022iTA14197510-197707

FOR N50ZL

main74404-14050iTA1#197012-197401

FOR N40L

main74404-14051iTA1#197401-197509

FOR N40L

main74404-14052iTA14197510-197512

FOR N40L

main74404-14120iTA14197512-197707

FOR N40L

9010506010

main90105-06010

9017906115

main90179-06115

9017906158

main90179-06158

9020106155

main90201-06155

9161640625

main91616-40625

9165140816

main91651-40816

9461410600

main94614-10600

10 parts on this diagram · 1 diagram in section
