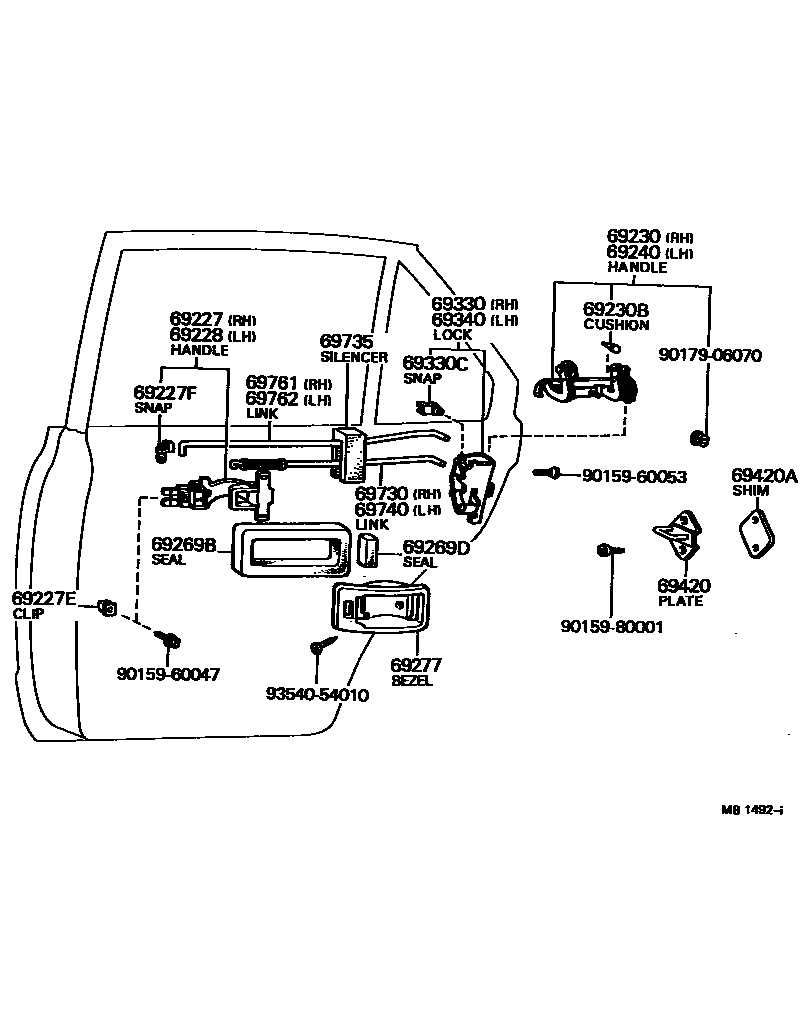

REAR DOOR LOCK & HANDLE
69227HANDLE, REAR DOOR INSIDE, RH
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
69227ECLIP(FOR REAR DOOR INSIDE HANDLE)
69227FSNAP(FOR REAR DOOR INSIDE HANDLE)
69228HANDLE, REAR DOOR INSIDE, LH
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
sub69230-14010
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
sub69240-14010
69269BSEAL, DOOR INSIDE HANDLE NO.1(FOR REAR DOOR)
ARCTIC
69269DSEAL, DOOR INSIDE HANDLE NO.2(FOR REAR DOOR)
ARCTIC
69277BEZEL, REAR DOOR INSIDE HANDLE
sub90162-40011
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#
69330LOCK ASSY, REAR DOOR, RH
69330CSNAP(FOR REAR DOOR LOCK)
69340LOCK ASSY, REAR DOOR, LH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69420ASHIM, REAR DOOR LOCK STRIKER PLATE
T=1.2
69730LINK ASSY, REAR DOOR OPEN CONTROL, RH
69735SILENCER, REAR DOOR LOCK LINK
69740LINK ASSY, REAR DOOR OPEN CONTROL, LH
69761LINK, REAR DOOR LOCK CONTROL, NO.1 RH
69762LINK, REAR DOOR LOCK CONTROL, NO.1 LH
9015960047
main90159-60047
9015960053
main90159-60053
9015980001
main90159-80001
9017906070
main90179-06070
9354054010
main93540-54010
25 parts on this diagram · 1 diagram in section
