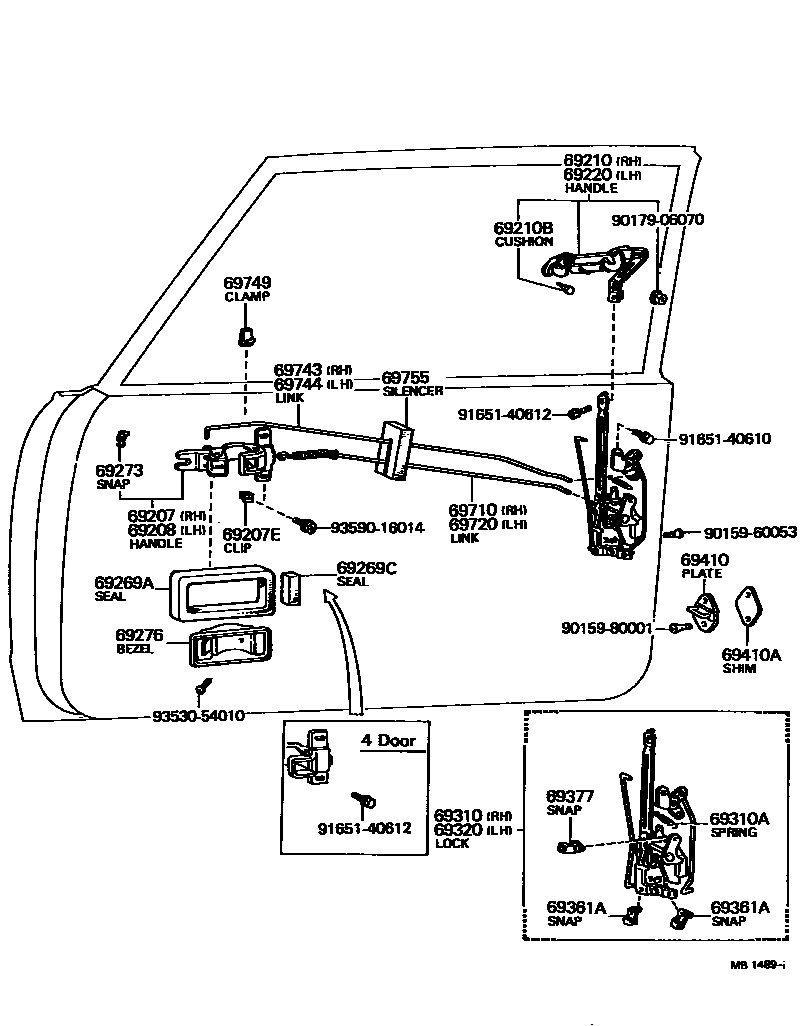

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69207-20020iTA1#197012-197101

sub69207-20021

main69207-20021iTA1#197101-197509

main69207-20021-01iTA14197510-197707

BLACK,BLACK,TRIM2#

sub69207-20021

main69207-20021-06iTA14197510-197707

BROWN,BROWN,TRIM4#

sub69207-20021

main69207-20021-08iTA14197510-197707

IVORY,IVORY,TRIM0#

sub69207-20021

69207ECLIP(FOR FRONT DOOR INSIDE HANDLE)

main90189-06010iTA1#..2D197203-197707

main90467-09059iTA1#..2D197012-197203

sub90189-06010

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69208-20010iTA1#197012-197101

sub69208-20011

main69208-20011iTA1#197101-197509

main69208-20011-01iTA14197510-197707

BLACK,BLACK,TRIM2#

sub69208-20011

main69208-20011-06iTA14197510-197707

BROWN,BROWN,TRIM4#

sub69208-20011

main69208-20011-08iTA14197510-197707

IVORY,IVORY,TRIM0#

sub69208-20011

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-29035iTA1#197012-197707

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-02006iTA1#197012-197205

sub90541-03112

main90541-03112iTA1#197205-197707

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-29035iTA1#197012-197707

69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)

main69269-12020iTA14197612-197707

ARCTIC

69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)

main69289-12010iTA14197612-197707

ARCTIC

69273SNAP, DOOR INSIDE HANDLE ROD

main69273-10010iTA1#197012-197707

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69276-20010iTA1#197012-197101

sub69276-20011

sub90162-40011

main69276-20011iTA1#197101-197509

main69276-20011-01iTA14197510-197707

BLACK,BLACK,TRIM2#

sub69276-20011

main69276-20011-06iTA14197510-197707

BROWN,BROWN,TRIM4#

sub69276-20011

main69276-20011-08iTA14197510-197707

IVORY,IVORY,TRIM0#

sub69276-20011

69310LOCK ASSY, FRONT DOOR, RH

main69310-14010iTA1#..2D197012-197207

sub69310-14011

main69310-14011iTA12,14..2D197208-197707

main69310-14020iTA1#..4D197012-197707

69310ASPRING(FOR FRONT DOOR LOCK)

main90506-10415iTA1#197012-197707

69320LOCK ASSY, FRONT DOOR, LH

main69320-14010iTA1#..2D197012-197207

sub69320-14011

main69320-14011iTA12,14..2D197208-197707

main69320-14020iTA1#..4D197012-197707

69361ASNAP, DOOR LOCK CONNECTING ROD(FOR FRONT DOOR)

main69759-12030iTA14197707-197707

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69377-30020iTA14197707-197707

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-14010iTA1#197012-197707

69410ASHIM, FRONT DOOR LOCK STRIKER PLATE

main69491-14010iTA1#197201-197707

T=1.2

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69710-14010iTA1#..2D197012-197707

main69710-20030iTA1#..4D197012-197707

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69720-14010iTA1#..2D197012-197707

main69720-20030iTA1#..4D197012-197707

69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH

main69743-14010iTA1#..2D197012-197707

main69743-20010iTA1#..4D197012-197707

69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH

main69744-14010iTA1#..2D197012-197707

main69744-20010iTA1#..4D197012-197707

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010iTA1#197208-197707

main69749-22010iTA1#197012-197207

sub69749-12010

69755SILENCER, FRONT DOOR LOCK LINK

main69759-12011iTA1#197210-197707

main69759-20010iTA1#197012-197207

main69759-20011iTA1#197208-197210

sub69759-12011

9015960053

main90159-60053

9015980001

main90159-80001

9017906070

main90179-06070

9165140610

main91651-40610

9165140612

main91651-40612

9353054010

main93530-54010

9359016014

main93590-16014

30 parts on this diagram · 1 diagram in section
