SIDE MEMBER
55299CAP, TEE NUT(FOR 6MM)
58354SUPPORT, LUGGAGE COMPARTMENT SIDE COVER
61101PANEL SUB-ASSY, COWL SIDE, RH
61101APLUG, HOLE(FOR COWL SIDE PANEL)
61111BRACKET SUB-ASSY,INSTRUMENT SIDE, RH
61112BRACKET SUB-ASSY, INSTRUMENT SIDE, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61143GUSSET, FRONT PILLAR DOOR OPENING, UPPER RH
61144GUSSET, FRONT PILLAR DOOR OPENING, UPPER LH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61204RAIL SUB-ASSY, ROOF SIDE, INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61223CHANNEL, ROOF DRIP, FRONT RH
61224CHANNEL, ROOF DRIP, FRONT LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61277JOINT, ROOF DRIP CHANNEL, FRONT RH
61278JOINT, ROOF DRIP CHANNEL, FRONT LH
61315RETAINER, DOOR LOCK STRIKER PLATE
RH.
LH.
61411AREINFORCEMENT, ROCKER PANEL, NO.1 RH
61611PANEL, QUARTER, RH
61611APANEL, QUARTER, NO.2 RH
OD=9
OD=5
61612PANEL, QUARTER, LH
61627RETAINER, QUARTER TRIM, LOWER
61631PANEL, QUARTER WHEEL HOUSE, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
OD=10
61631BGROMMET(FOR QUARTER WHEEL HOUSE)
OD=12
61632PANEL, QUARTER WHEEL HOUSE, LH
61637BRACE, QUARTER WHEEL HOUSE, RH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705BGROMMET(FOR ROOF SIDE INNER PANEL)
OD=10
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
61728REINFORCEMENT, QUARTER PANEL, FRONT RH
61729REINFORCEMENT, QUARTER PANEL, FRONT LH
64211STRAINER, PACKAGE TRAY TO FLOOR, RH
64212STRAINER, PACKAGE TRAY TO FLOOR, LH
64292CLAMP, JACK HANDLE

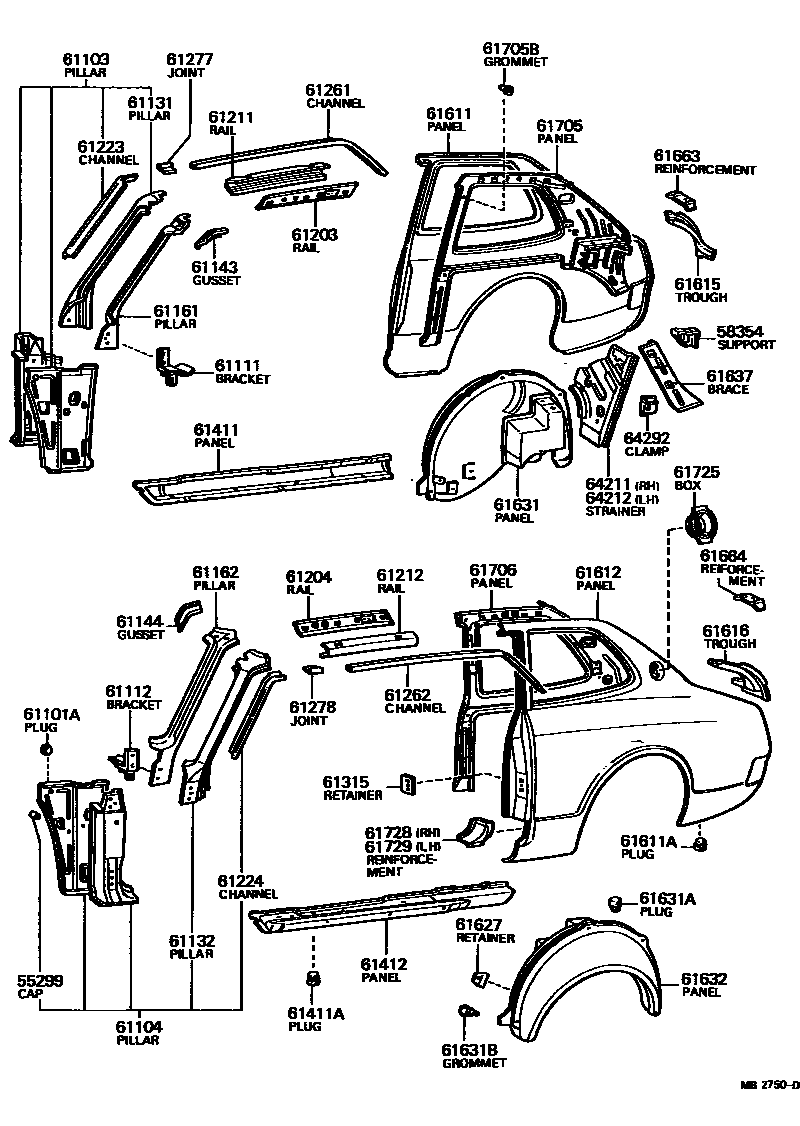

50 parts on this diagram · 4 diagrams in section
