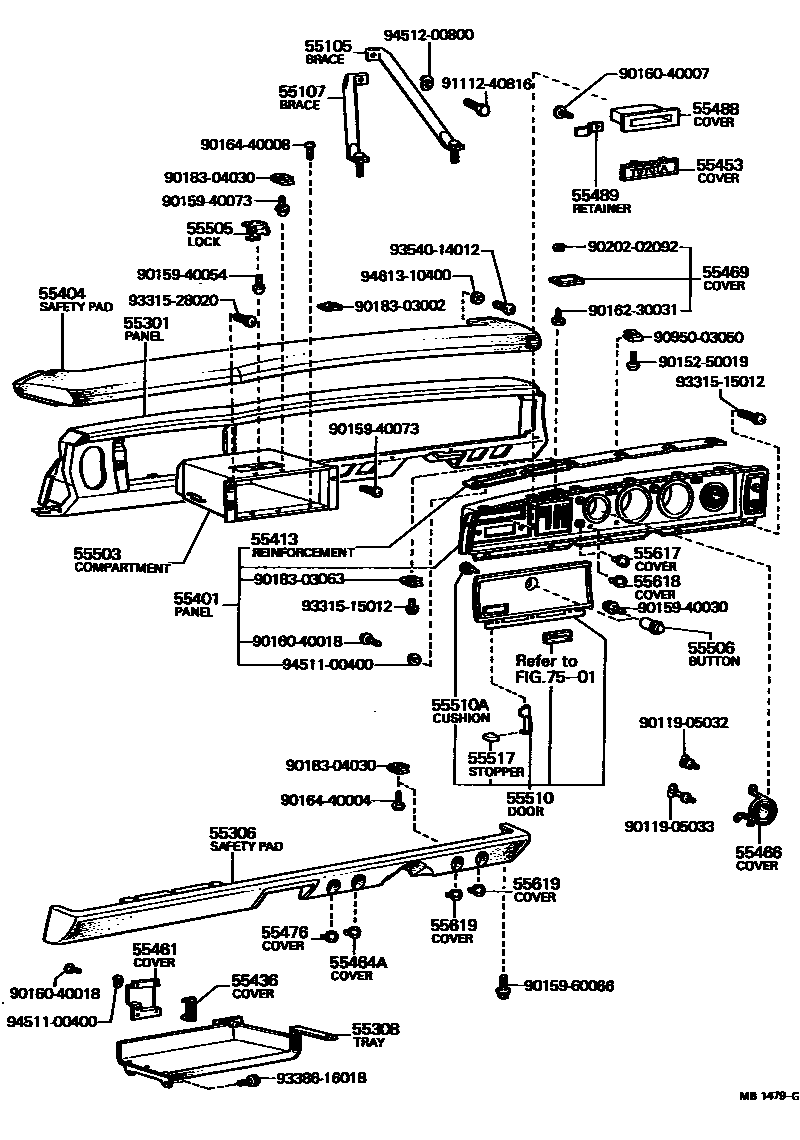

INSTRUMENT PANEL & GLOVE COMPARTMENT
55105BRACE SUB-ASSY, PEDAL BRACKET TO DASH, RH
55107BRACE SUB-ASSY, PEDAL BRACKET TO DASH, LH
55301PANEL SUB-ASSY, INSTRUMENT
55306GARNISH OR SAFETY PAD, LOWER, CENTER
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM0#,4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM0#,4#
55413REINFORCEMENT, CLUSTER HOUSING
55436COVER, HEATER CONTROL, NO.2
FOR BOOST VENTILATOR
FOR BOOST VENTILATOR
55461COVER, HEATER CONTROL HOLE
55464ACOVER, CHOKE KNOB HOLE
55466COVER, CLOCK HOLE
55469COVER, HEATER CONTROL LAMP HOLE
55476COVER, CIGARETTE LIGHTER HOLE
55489RETAINER, STEREO OPENING COVER, NO.1
55503COMPARTMENT SUB-ASSY, GLOVE
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55617COVER, DEFOGGER KNOB HOLE
55618COVER, AUTO CLOCK KNOB HOLE
55619COVER, SWITCH HOLE
7501
9011905032
main90119-05032
9011905033
main90119-05033
9015250019
main90152-50019
9015940030
main90159-40030
9015940054
main90159-40054
9015940073
main90159-40073
9015960066
main90159-60066
9016040007
main90160-40007
9016040018
main90160-40018
9016230031
main90162-30031
9016440004
main90164-40004
9016440008
main90164-40008
9018303002
main90183-03002
9018303063
main90183-03063
9018304030
main90183-04030
9020202092
main90202-02092
9095003050
main90950-03050
9111240816
main91112-40816
9331515012
main93315-15012
9331528020
main93315-28020
9338616018
main93386-16018
9354014012
main93540-14012
9451100400
main94511-00400
9451200800
main94512-00800
9461310400
main94613-10400
52 parts on this diagram · 6 diagrams in section
