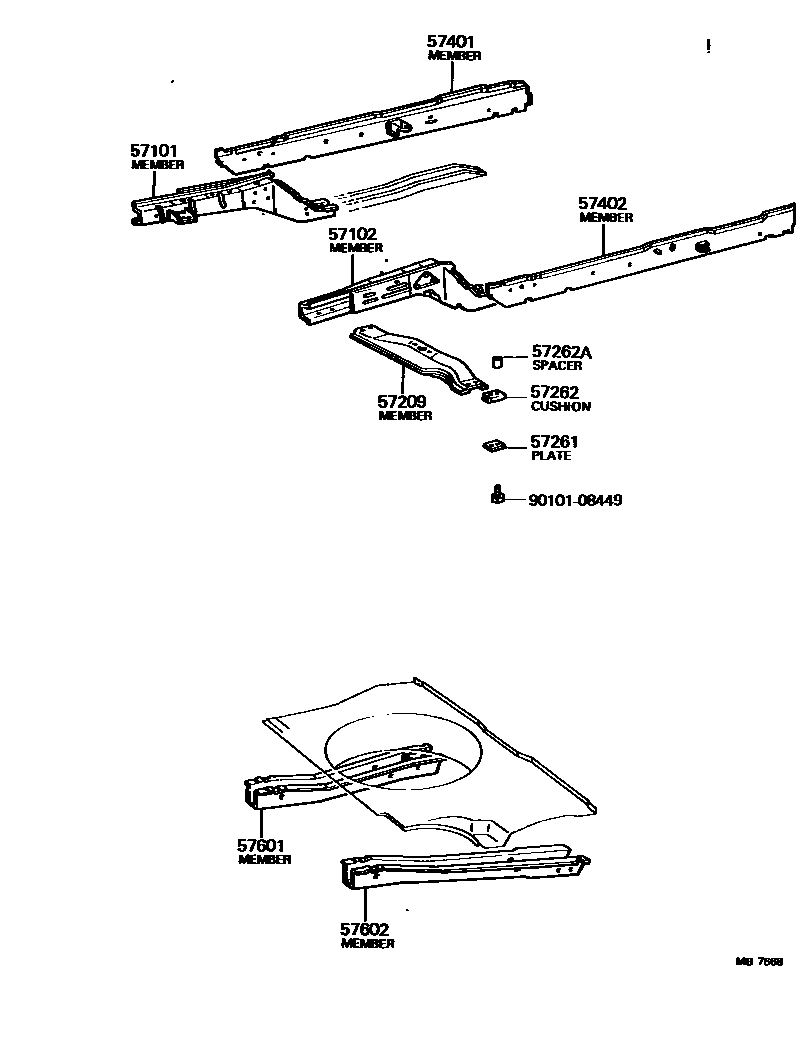

FLOOR SIDE MEMBER

0001 1 0002 1

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-14010iTA1#197012-197207

main57101-14011iTA1#197208-197401

main57101-14013iTA14197510-197707

main57101-14030iTA1#197401-197408

sub48824-14020

sub91651-41020

main57101-14031iTA1#197408-197509

sub57101-14040

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-14010iTA1#197012-197207

main57102-14011iTA1#197208-197408

sub48824-14020

sub91651-41020

main57102-14012iTA1#197408-197509

sub57102-14030

main57102-14013iTA14197510-197707

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-14020iTA1#..MTM197012-197509

main57209-14030iTA12..3FC197012-197308

main57209-14031iTA12..3FC197308-197509

main57209-14061iTA14..3FC197510-197707

sub57209-20100

main57209-15010iTA14..MTM197512-197707

sub57209-15011

main57255-14021iTA14..MTM197510-197512

57261PLATE, ENGINE REAR SUPPORT MEMBER BOLT LOCK

main57026-22010×2iTA1#197012-197509

57262CUSHION, ENGINE REAR SUPPORT MEMBER

main57262-20020×2iTA1#197012-197509

57262ASPACER(FOR ENGINE REAR SUPPORT)

main90560-08325×4iTA1#197012-197509

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-14010iTA1#197012-197509

main57401-14011iTA14197510-197707

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-14010iTA1#197012-197509

main57402-14011iTA14197510-197707

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-14040iTA1#197012-197707

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-14040iTA1#197012-197707

9010108449

main90101-08449

11 parts on this diagram · 2 diagrams in section
