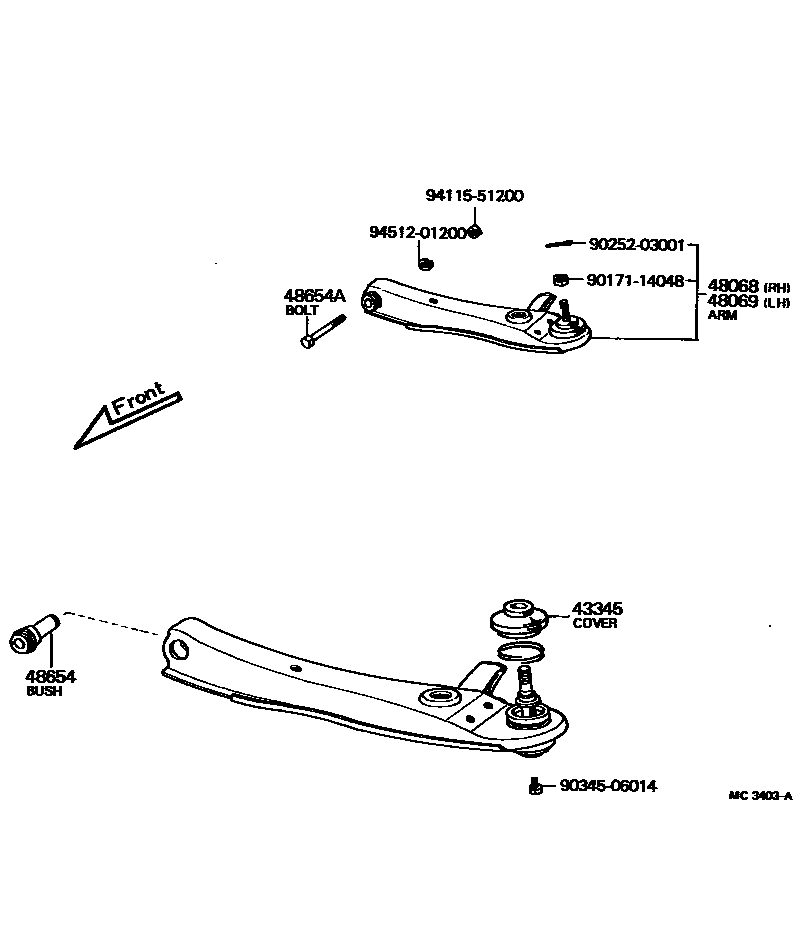

FRONT AXLE ARM & STEERING KNUCKLE

43345COVER, LOWER BALL JOINT DUST

main43345-14020iTA1#197012-197707

sub43345-14010

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-14010iTA1#197012-197207

sub48068-19035

main48068-19035iTA1#197208-197509

main48068-19036iTA14197510-197707

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-14010iTA1#197012-197207

sub48069-19035

main48069-19035iTA1#197208-197509

main48069-19036iTA14197510-197707

48654BUSH, LOWER ARM

main48654-12010iTA1#197012-197707

48654ABOLT, HEXAGON(FOR LOWER ARM)

main90101-12291iTA1#197012-197707

9017114048

main90171-14048

9025203001

main90252-03001

9034506014

main90345-06014

9411551200

main94115-51200

9451201200

main94512-01200

10 parts on this diagram · 1 diagram in section
