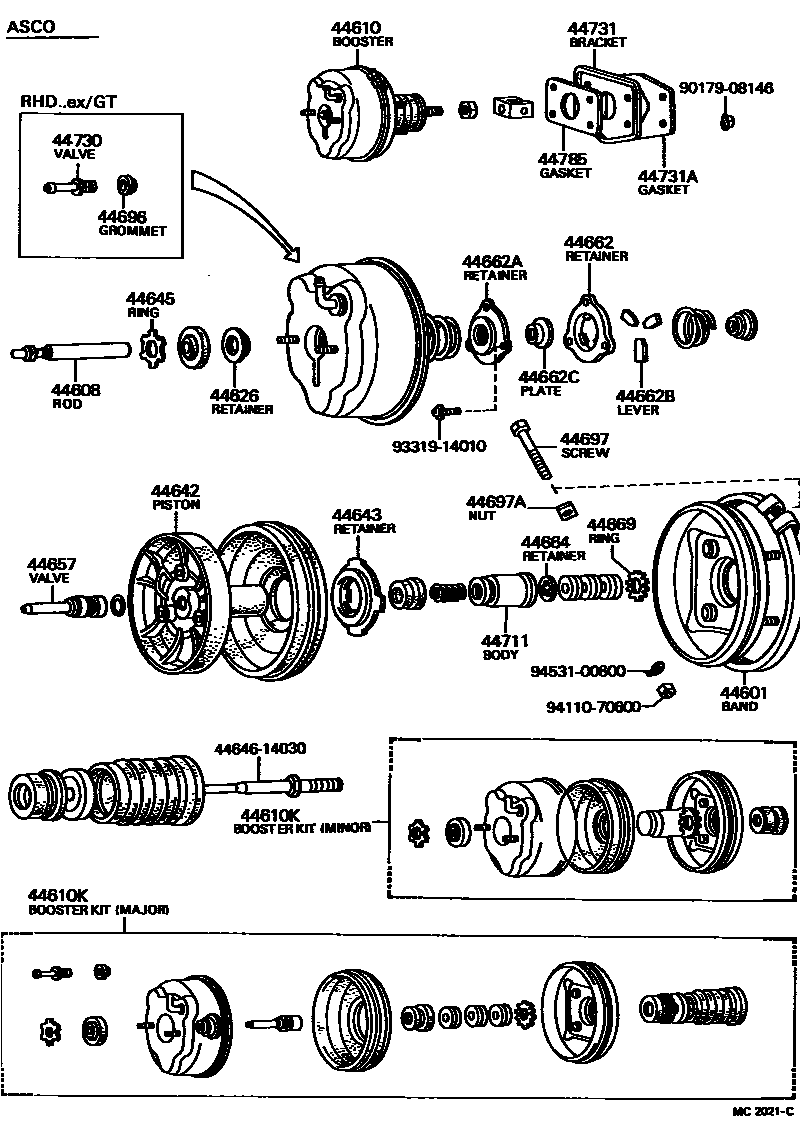

BRAKE BOOSTER & VACUUM TUBE
44601BAND SUB-ASSY, BOOSTER BODY
44608PUSH ROD SUB-ASSY, BOOSTER
ASCO
JKK
44610BOOSTER ASSY, BRAKE
JKK,TANDEM M/C
JKK,SINGLE M/C
JKK.SINGLE M/C
ASCO,TANDEM M/C
JKK.SINGLE M/C
JKK,TANDEM M/C,7.5IN
ASCO
ASCO
44610KBOOSTER KIT, BRAKE
ASCO,MINOR KIT
JKK.MINOR KIT
JKK,MAJOR KIT
JKK.MAJOR KIT
JKK,MAJOR KIT,6IN TANDEM M/C
JKK FOR MINOR
JKK.MAJOR KIT
JKK,MAJOR KIT,SINGLE M/C
JKK.MAJOR KIT
JKK,MAJOR KIT,TANDEM M/C
JKK.MAJOR KIT
JKK,MAJOR KIT,SINGLE M/C
ASCO,MAJOR KIT
JKK,MAJOR KIT,7.5IN TANDEM M/C
ASCO
ASCO
JKK
JKK
44626RETAINER, BOOSTER ROD CUP
44642PISTON, BRAKE BOOSTER
ASCO
ASCO
JKK,FOR 7.5IN.
JKK
44645RETAINER, BOOSTER PUSH ROD SEAL
ASCO
JKK
44657VALVE, BOOSTER AIR
44662RETAINER, REACTION, NO.1
ASCO,FOR DISC
44662ARETAINER, REACTION, NO.2
44664RETAINER, SEPARATOR
44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)
44696GROMMET, CHECK VALVE
ASCO
44697ANUT(FOR BOOSTER BAND SET)
44711BODY, AIR CLEANER(FOR BOOSTER)
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
ASCO
ASCO
4464614030GASKET, BOOSTER PISTON
main44646-14030
9017908146
main90179-08146
9331914010
main93319-14010
9411070600
main94110-70600
9453100600
main94531-00600
28 parts on this diagram · 6 diagrams in section
