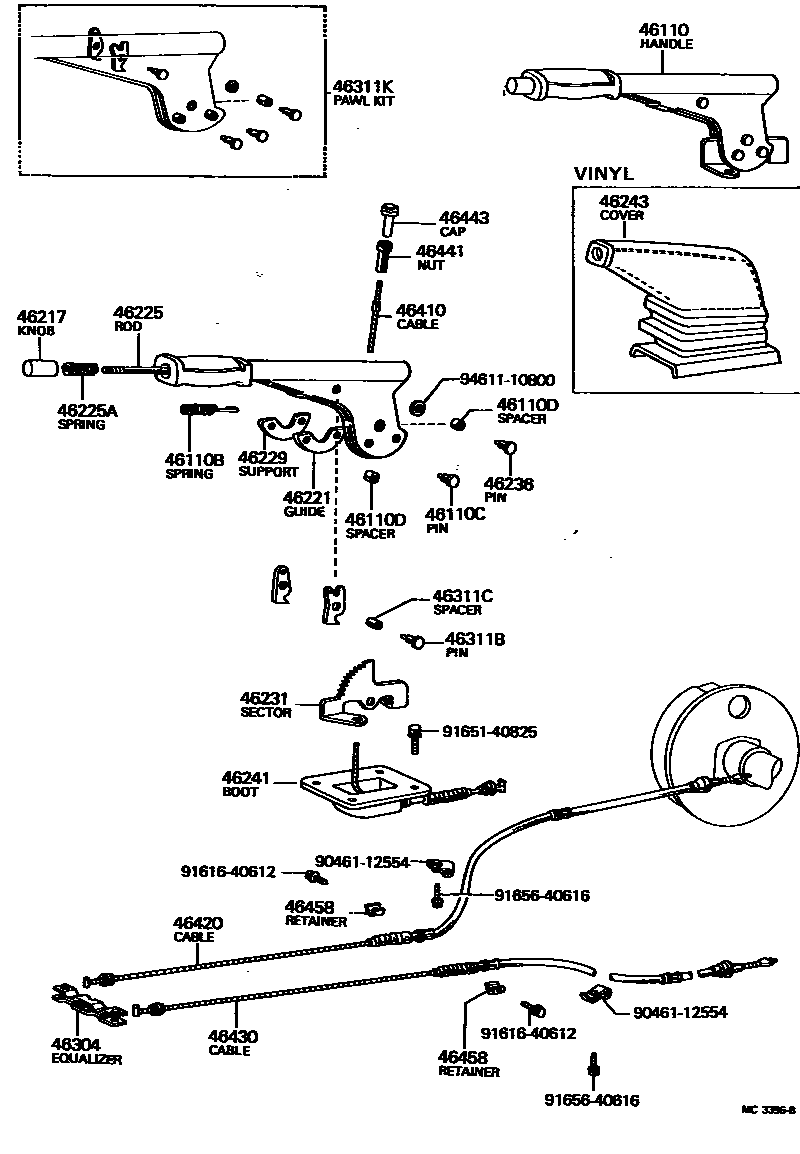

PARKING BRAKE & CABLE
46110BSPRING, TENSION(FOR PARKING BRAKE HANDLE)
46110CPIN(FOR PARKING BRAKE HANDLE SET)
46110DSPACER(FOR PARKING BRAKE HANDLE)
L=6,ID=6.7
L=6.2,ID=10
46217KNOB, PARKING BRAKE RELEASE ROD
sub46217-10020
46221GUIDE, PARKING BRAKE CABLE
46225ROD, PARKING BRAKE PAWL RELEASE
46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
46229SUPPORT, PARKING BRAKE CABLE GUIDE
46236PIN, LEVER PIVOT
46304EQUALIZER SUB-ASSY, PARKING BRAKE
46311BPIN, PARKING BRAKE PAWL PIVOT
46311CSPACER(FOR PARKING BRAKE PAWL PIVOT)
46311KPAWL KIT, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
46441NUT, WIRE ADJUSTING, NO.1
46443CAP, CABLE ADJUSTING
46458RETAINER, CABLE
sub46458-50010
9046112554
main90461-12554
9161640612
main91616-40612
9165140825
main91651-40825
9165640616
main91656-40616
9461110800
main94611-10800
28 parts on this diagram · 1 diagram in section
