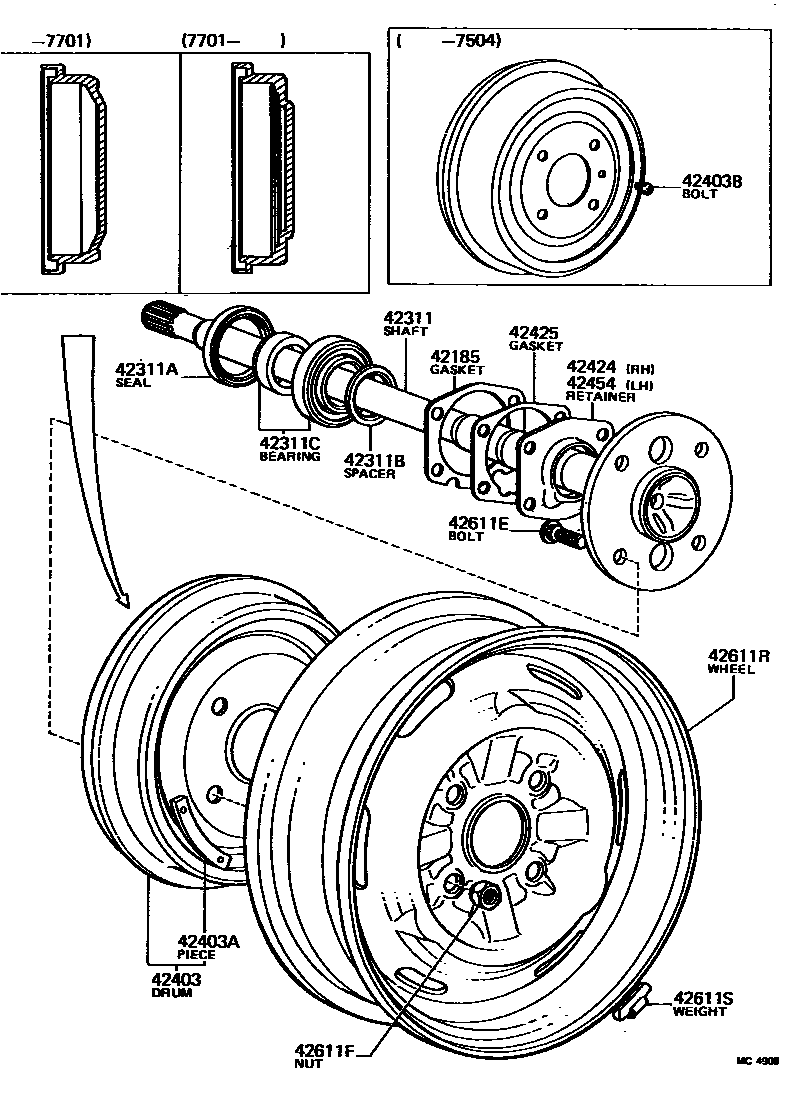

REAR AXLE SHAFT & HUB
42185GASKET, REAR AXLE HOUSING END
T=0.3
T=0.6
T=0.5
T=0.6
42311ASEAL, OIL(FOR REAR AXLE SHAFT)
TB 42 55 7X3
42311BSPACER(FOR REAR AXLE SHAFT BEARING)
42403APIECE, BALANCE (FOR REAR BRAKE DRUM)
10G,10G.
20G,20G.
30G,30G.
40G,40G.
50G,50G.
60G,60G.
20G.
30G.
40G.
50G.
10G,60G.
42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)
42424RETAINER, REAR AXLE BEARING, OUTER, RH
42454RETAINER, REAR AXLE BEARING, OUTER, LH
42611EBOLT, HUB (FOR REAR AXLE)
sub90942-02035
42611FNUT, HUB (FOR REAR AXLE)
CAP NUT,H=34.5
CAP NUT,H=29.5
42611RWHEEL, DISC(FOR REAR)
4.5J-13,W/T,SEMI-STYLED,SILVER
4.5J-13
4.5J-13,FOR TUBELESS
4.5J-13,FOR TUBELESS
4.5J-13,FOR W/TUBE
4.5J-13,W/TUBE,THAILAND SPEC.
5J-13,W/TUBE,SWITZRLAND SPEC.
5J-13
5.5J-14,AUSTRIA SPEC.
4J-13
sub42611-22030
42611SWEIGHT, BALANCE(FOR REAR DISC WHEEL)
20G.
30G.
40G.
50G.
60G.
70G.
80G.
10G.
15 parts on this diagram · 1 diagram in section
