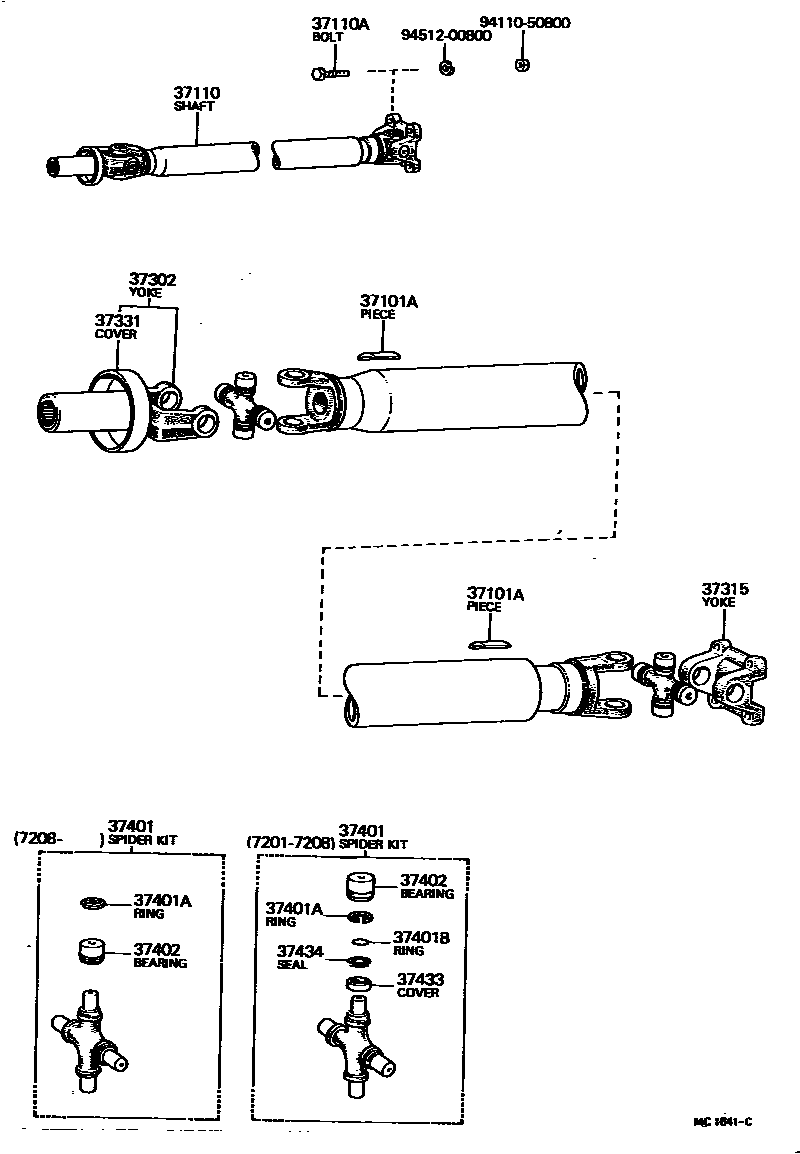

PROPELLER SHAFT & UNIVERSAL JOINT
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
2.5G.
5.0G.
7.5G.
10G,L=20.7,10G.
12.5G.
15G,15G.
17.5G.
20G,L=41.4,20G.
22.5G.
25G.
27.5G.
30G,L=62.2,30G.
2G,T=2.0,2G.
4G,T=2.0,4G.
6G,L=12.4,6G.
8G,L=16.6,8G.
12G,L=24.9,12G.
14G,L=29.0,14G.
16G,L=33.2,16G.
18G,L=37.3,18G.
22G,L=45.6,22G.
24G,L=49.7,24G.
26G,L=53.9,26G.
28G,L=58.1,28G.
37110SHAFT ASSY, PROPELLER
L=1379,OD=75
L=1379,OD=75
L=1379,OD=75
L=757.5,OD=75
L=1362,OD=75
L=1362,OD=75
37110ABOLT (FOR PROPELLER SHAFT)
sub90101-08214
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37315YOKE, UNIVERSAL JOINT FLANGE
37331COVER, SLIDING SHAFT DUST
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=2.375-2.425,T=2.375-2.425
T=2.425-2.475,T=2.425-2.475
T=2.475-2.525,T=2.475-2.525
T=2.525-2.575,T=2.525-2.575
37401BRING, O (FOR SPIDER BEARING)
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
OD=26.036-26.049
37433COVER, UNIVERSAL JOINT NEEDLE ROLLER
37434SEAL, UNIVERSAL JOINT SPIDER BEARING
9411050800
main94110-50800
9451200800
main94512-00800
14 parts on this diagram · 2 diagrams in section
