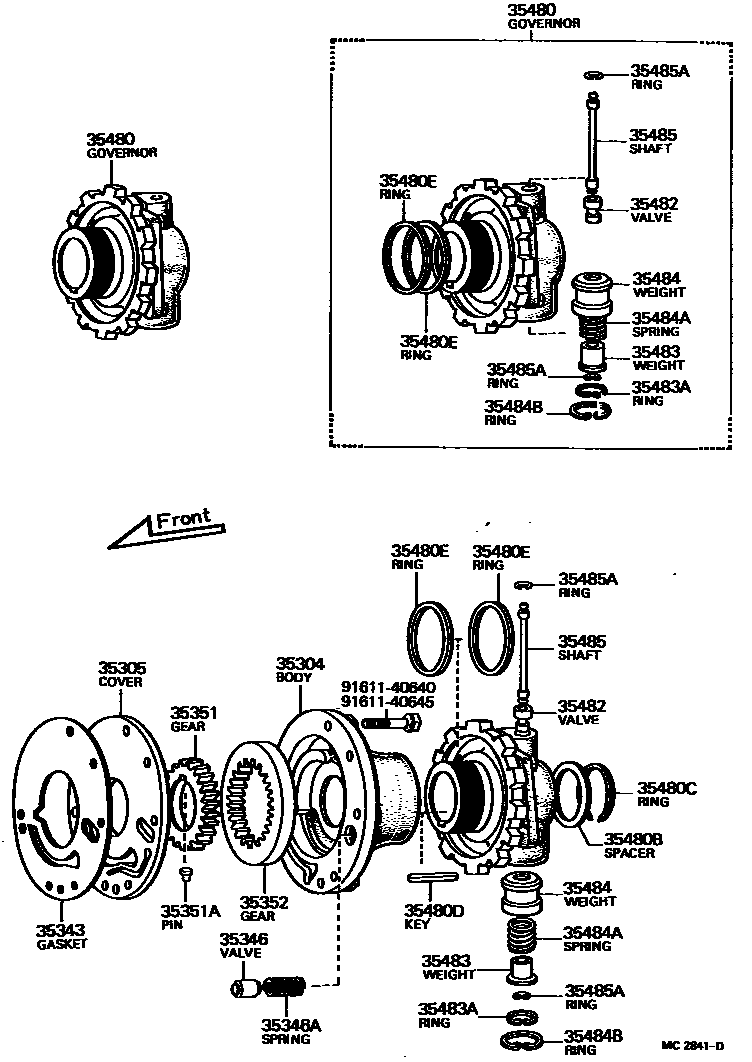

REAR OIL PUMP & GOVERNOR (ATM)
35304BODY SUB-ASSY, REAR OIL PUMP
35305COVER SUB-ASSY, REAR OIL PUMP
35343GASKET, REAR OIL PUMP COVER
35346VALVE, PRIMING(FOR REAR OIL PUMP)
35346ASPRING, COMPRESSION(FOR PRIMING VALVE)
35351GEAR, REAR OIL PUMP DRIVE
N=23
35351APIN, STRAIGHT (FOR REAR OIL PUMP DRIVE GEAR)
35352GEAR, REAR OIL PUMP DRIVEN
N=28
35480BSPACER (FOR GOVERNOR BODY SPACER OR PARKING LOCK GEAR)
T=1.2
35480CRING, SHAFT SNAP (FOR OUTPUT)
35480DKEY, SLIDING (FOR GOVERNOR BODY SUPPORT)
35480ERING (FOR REAR OIL PUMP GOVERNOR)
35483WEIGHT, GOVERNOR, INNER
35483ARING, HOLE SNAP (FOR GOVERNOR INNER WEIGHT)
T=1.0
35484WEIGHT, GOVERNOR, OUTER
35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
WD=1.2,CW=8
35484BRING, HOLE SNAP (FOR GOVERNOR OUTER WEIGHT)
T=1.2
35485SHAFT, GOVERNOR VALVE
35485ARING, E (FOR GOVERNOR VALVE SHAFT)
T=1.0
T=1.0
9161140640
main91611-40640
9161140645
main91611-40645
23 parts on this diagram · 2 diagrams in section
