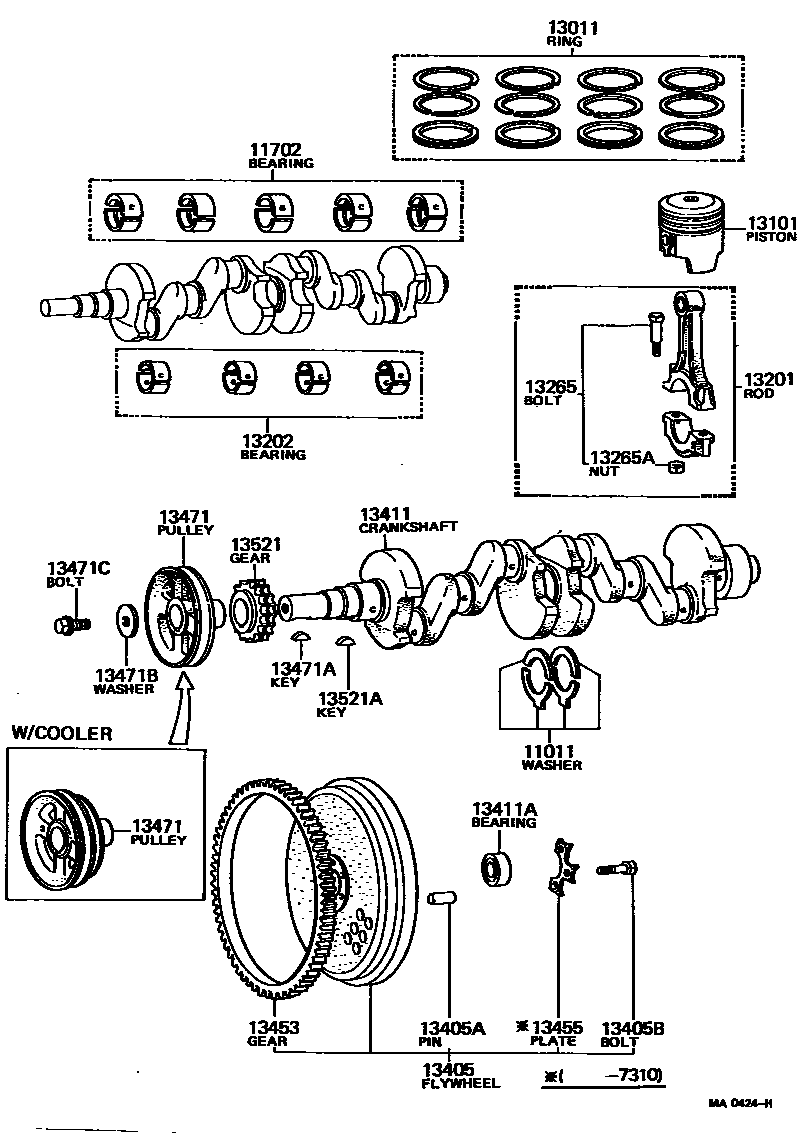

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,STD
O/S 0.125
O/S 0.25
11702BEARING SET, CRANKSHAFT
STD
U/S 0.05
U/S 0.25
U/S 0.50
13011RING SET, PISTON
STD 3PCS.
STD
STD
O/S 0.25 3PCS.
O/S 0.50 3PCS.
O/S 0.50
O/S 0.75 3PCS.
O/S 0.75
O/S 1.00 3PCS.
O/S 1.00
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
O/S 0.25
O/S 0.25
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
13201ROD SUB-ASSY, CONNECTING
13202BEARING SET, CONNECTING ROD
U/S 0.75
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
N=115
N=115
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8,L=23,OD=8
13405BBOLT, FLYWHEEL SETTING
13411ABEARING(FOR INPUT SHAFT FRONT)
6001 ZZ C3
13453GEAR, FLYWHEEL RING
N=115
13455PLATE, FLYWHEEL BOLT LOCK, NO.1
13471PULLEY, CRANKSHAFT
W/COOLER
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
sub90209-13003
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=18
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
