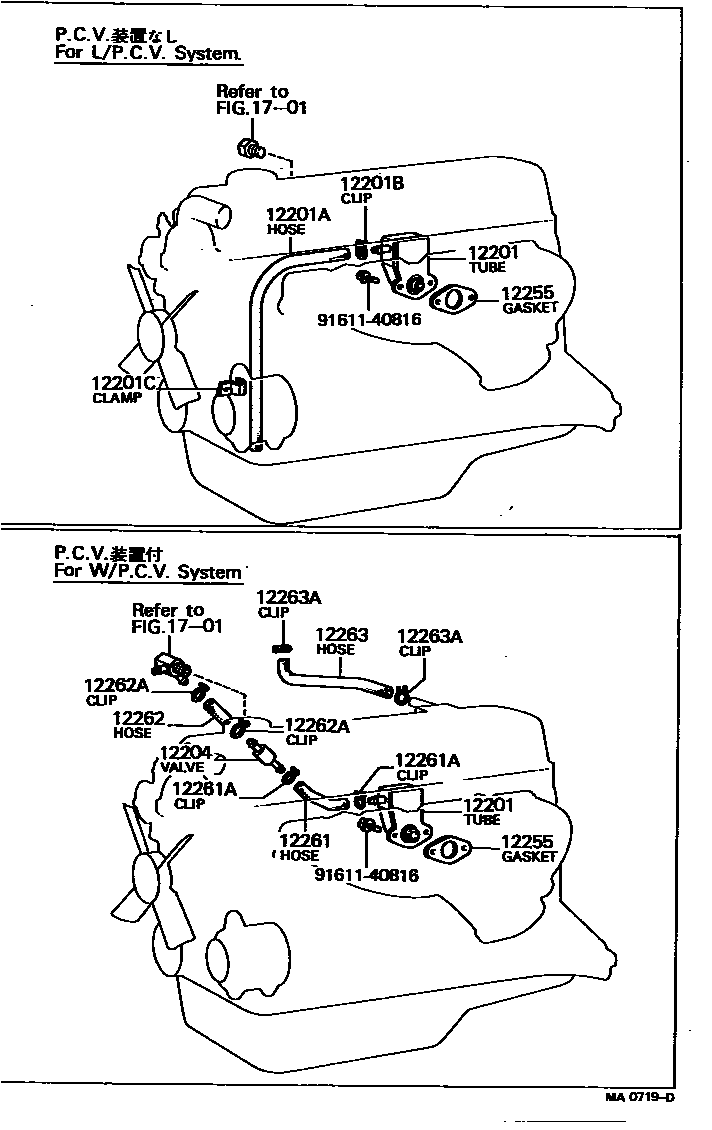

VENTILATION HOSE
12201TUBE SUB-ASSY, VENTILATION
12201AHOSE(FOR VENTILATION TUBE)
L/P.C.V.
12201BCLIP(FOR VENTILATION TUBE HOSE)
ID=16,L/P.C.V.
12201CCLAMP(FOR VENTILATION TUBE HOSE)
L/P.C.V.
12204VALVE SUB-ASSY, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
ID=16
12262ACLIP(FOR VENTILATION HOSE NO.2)
ID=16
12263HOSE, VENTILATION, NO.3
12263ACLIP(FOR VENTILATION HOSE)
ID=20
1701
9161140816
main91611-40816
14 parts on this diagram · 2 diagrams in section
