CYLINDER HEAD

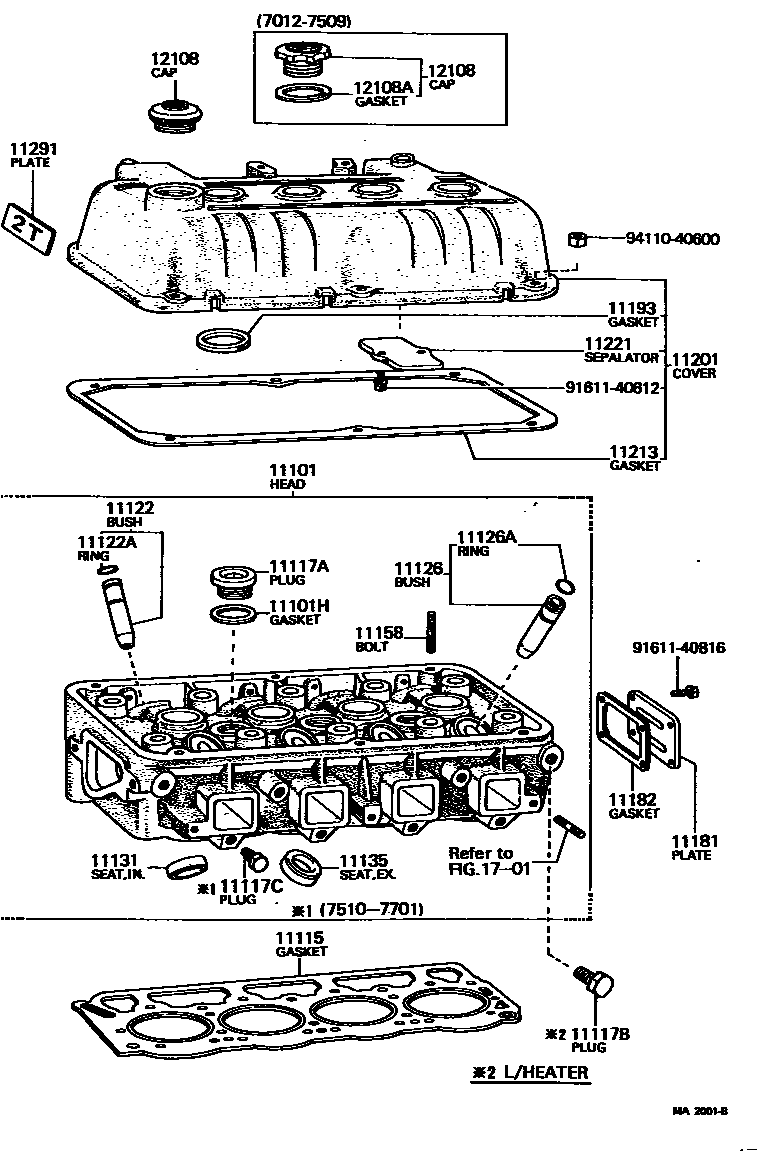

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-29085i197012-197110
sub11101-29086
main11101-29086i197110-197207
sub11101-29087
main11101-29087i197208-197304
sub11101-29088
main11101-29088i197304-197509
sub11101-29245
main11101-29097i197208-197304
sub11101-29098
main11101-29098i197304-197509
sub11101-29235
main11101-29226i197605-197608
sub11101-29227
main11101-29227i197608-197701
sub11101-29228
sub11101-29325
main11101-29228i197701-197707
sub11101-29229
main11101-29236i197510-197605
sub11101-29237
main11101-29237i197605-197608
sub11101-29238
main11101-29238i197608-197701
sub11101-29305
sub11101-29335
sub11101-29345
main11101-29245i197510-197605
sub11101-29226
main11101-29305i197701-197707
sub11101-29375
11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)
main90430-24246i197308-197707
ID=24.5,OD=34
main90430-33133i197012-197308
ID=32.5,OD=41
11115GASKET, CYLINDER HEAD
main11115-25020i197012-197303
sub11115-25021
main11115-25021i197303-197509
sub11115-25030
main11115-26020i197012-197303
sub11115-26021
main11115-26021i197303-197502
sub11115-26022
main11115-26022i197502-197508
sub11115-26030
main11115-26023i197508-197707
sub11115-26024
11117APLUG, W/HEAD TAPER SCREW, NO.1
main90341-24090i197308-197707
D=24,P=1.5
main90341-32028i197012-197308
D=32,P=1.5
11117BPLUG, W/HEAD TAPER SCREW, NO.2
main90345-53007i197012-197707
L/HEATER
11117CPLUG, W/HEAD TAPER SCREW, NO.3
main90341-14004i197510-197701
11122BUSH, INTAKE VALVE GUIDE
main11122-25021i197208-197707
STD,STD
main11122-25040i197012-197207
STD
sub11122-25021
sub13741-25011
sub90913-02018
main11123-25021i197208-197707
O/S 0.05,O/S 0.05
main11123-25040i197012-197207
O/S 0.05
sub11123-25021
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
main90520-12049i197012-197707
11126BUSH, EXHAUST VALVE GUIDE
main11126-25021i197208-197707
STD,STD
main11126-25040i197012-197207
STD
sub11126-25021
sub13741-25011
sub90913-02018
main11127-25021i197208-197707
O/S 0.05,O/S 0.05
main11127-25040i197012-197207
O/S 0.05
sub11127-25021
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
main90520-12049i197012-197707
11131SEAT, INTAKE VALVE
main11131-25010i197012-197707
STD,STD
main11132-25010i197012-197707
O/S 0.03,O/S 0.03
11135SEAT, EXHAUST VALVE
main11135-25012i197402-197707
STD
sub11135-25011
main11136-25010i197402-197707
O/S 0.03
sub11136-25011
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
main90116-06115i197012-197311
L=28,S=10&10
main92122-40618i197311-197707
L=18,S=9&9
11181PLATE, CYLINDER HEAD, REAR
main11181-25010i197012-197707
11182GASKET, CYLINDER HEAD REAR PLATE
main11182-25010i197012-197707
sub11182-25011
11193GASKET, SPARK PLUG TUBE
main11193-25010i197012-197303
sub11193-25011
main11193-25011i197303-197707
sub11193-25012
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-29035i197012-197104
W/P.C.V.
sub11201-29036
main11201-29036i197104-197309
W/P.C.V.
main11201-29037i197309-197509
W/P.C.V.
sub11201-29038
main11201-29038i197510-197610
sub11201-29125
main11201-29075i197012-197104
L/P.C.V.
sub11201-29076
main11201-29076i197104-197309
L/P.C.V.
main11201-29125i197610-197707
sub11201-29126
11213GASKET, CYLINDER HEAD COVER
main11213-25010i197012-197707
sub11213-25011
11221SEPARATOR, CYLINDER HEAD COVER, NO.1
main11221-25010i197012-197707
11291PLATE, ENGINE NAME
main11291-25010i197012-197509
main11291-26020i197012-197707
main11291-26030i197208-197707
12108CAP SUB-ASSY, OIL FILLER
main12181-12903i197012-197509
sub12181-12904
main12181-31020i197510-197707
12108AGASKET(FOR OIL FILLER CAP)
main90430-37140i197012-197509
1701
9161140612
main91611-40612
9161140816
main91611-40816
9411040600
main94110-40600
