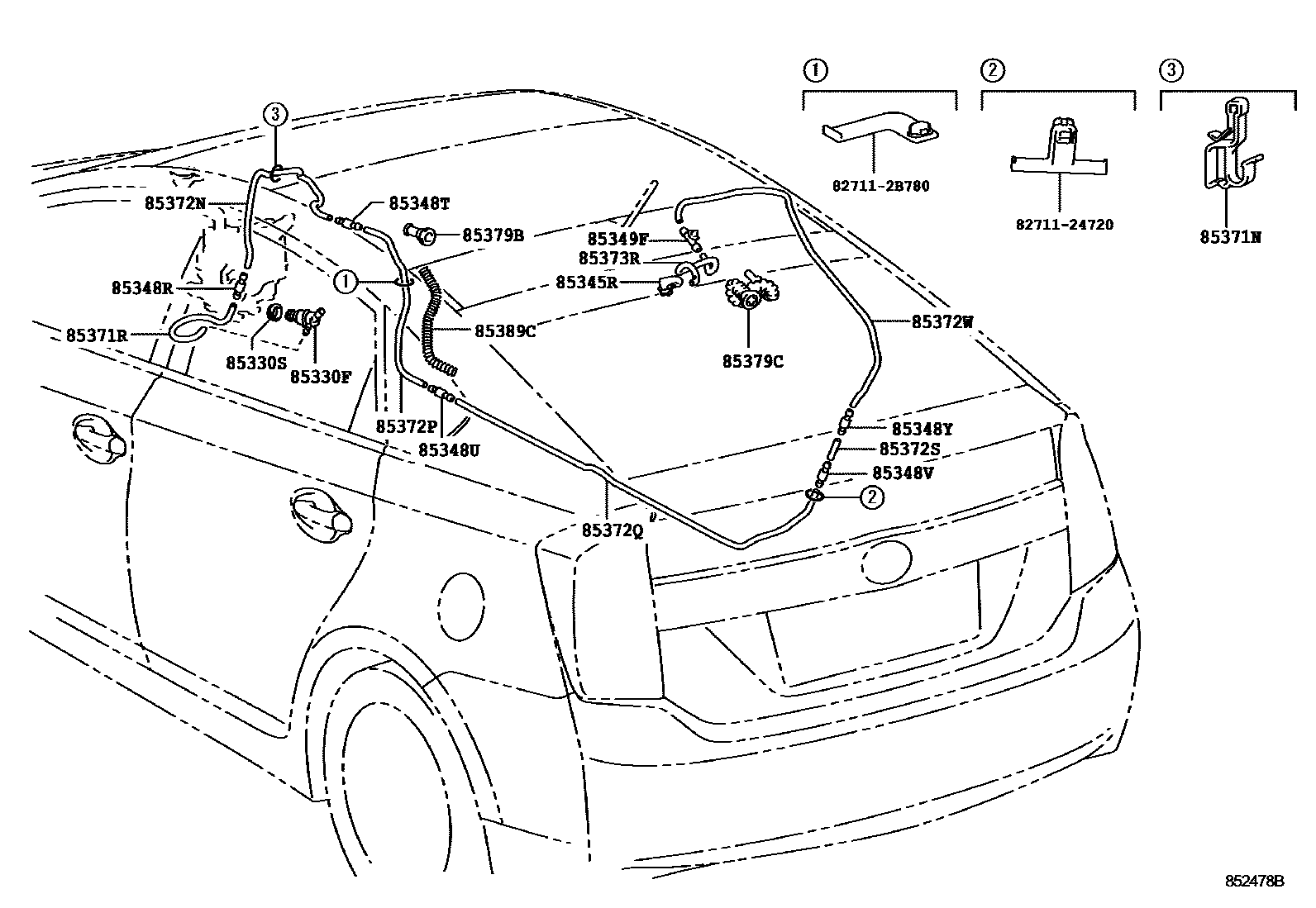

REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
sub85391-48021
85348RJOINT, REAR WASHER HOSE, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=400
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=716
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1800(*H,L=850)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=3300(*H,L=2100)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=40
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1800(*H,L=1220)
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=320)
85379BGROMMET, WASHER, A
85379CGROMMET, REAR WASHER HOSE NO.1
85389CPROTECTOR, WASHER
8271124720WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827112B780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
22 parts on this diagram · 1 diagram in section
