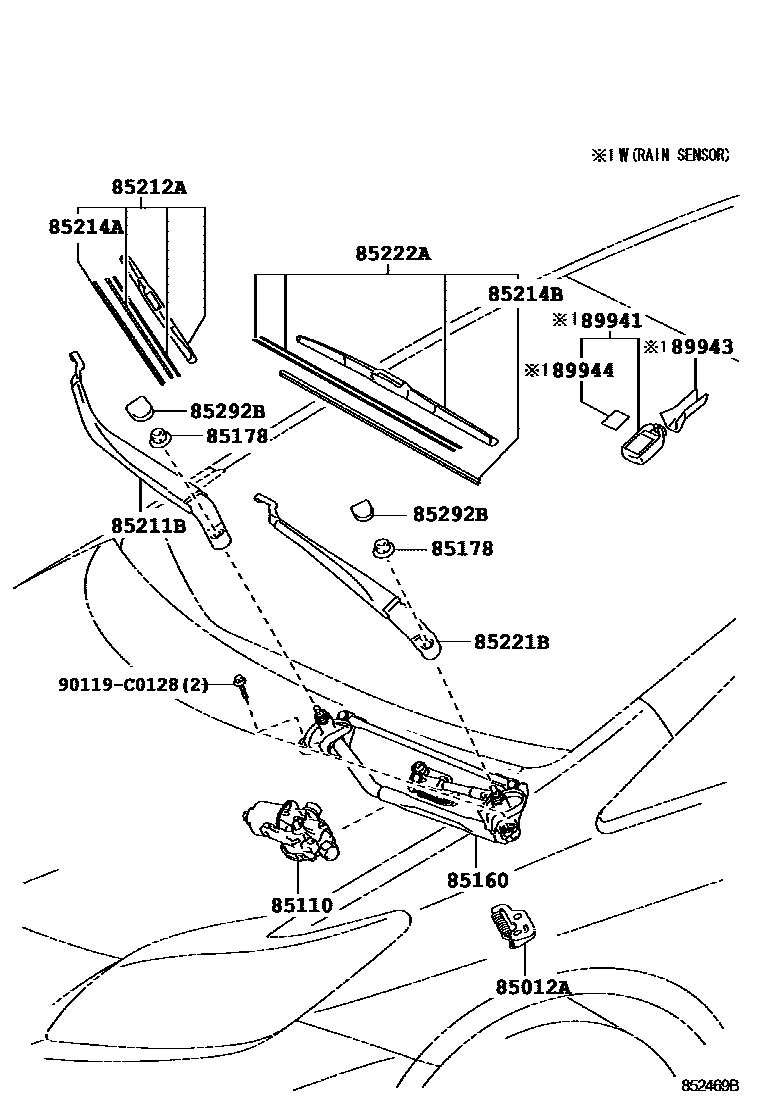

WINDSHIELD WIPER
85012ACRANK SUB-ASSY, FRONT WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85292BCAP, FRONT WIPER ARM HEAD
89941SENSOR, RAIN
89943COVER, RAIN SENSOR
89944TAPE, RAIN SENSOR
90119C0128
main90119-C0128
15 parts on this diagram · 1 diagram in section
