HEV INVERTER

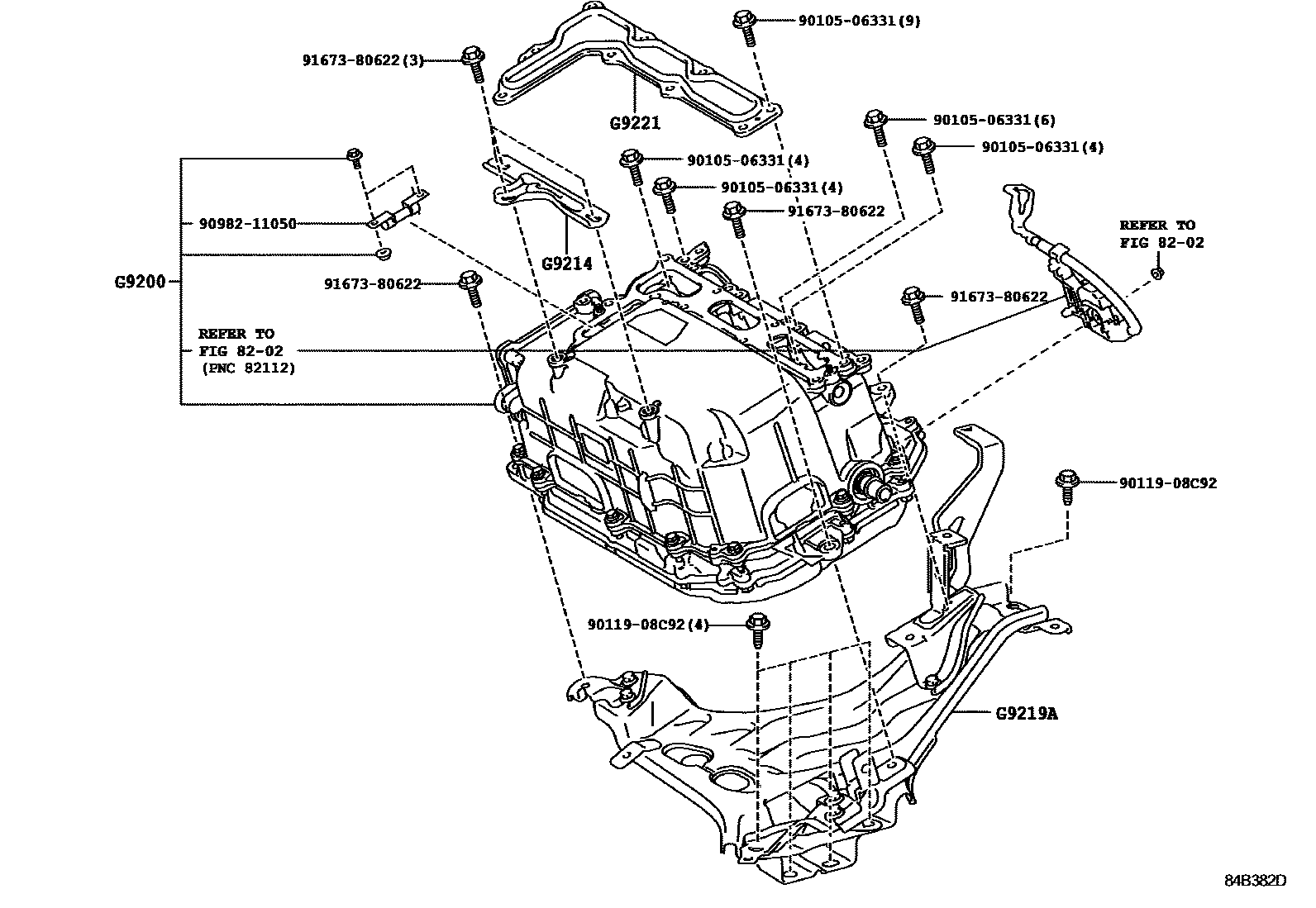

Parts diagram
8202
G9200INVERTER ASSY, W/CONVERTER
mainG920049015i201112-201212
subG9200-49025
mainG920049025i201212
G9214BRACKET, INVERTER, NO.1
mainG921447050i201112-201309
subG9214-47060
mainG921447060i201310
G9219ABRACKET, INVERTER TRAY
mainG911047011i201112-201309
subG9110-47030
mainG911047030i201310
G9221COVER, INVERTER
mainG902247041i201112
9010506331
main90105-06331
9011908C92
main90119-08C92
9098211050
main90982-11050
9167380622
main91673-80622

9 parts on this diagram · 1 diagram in section
