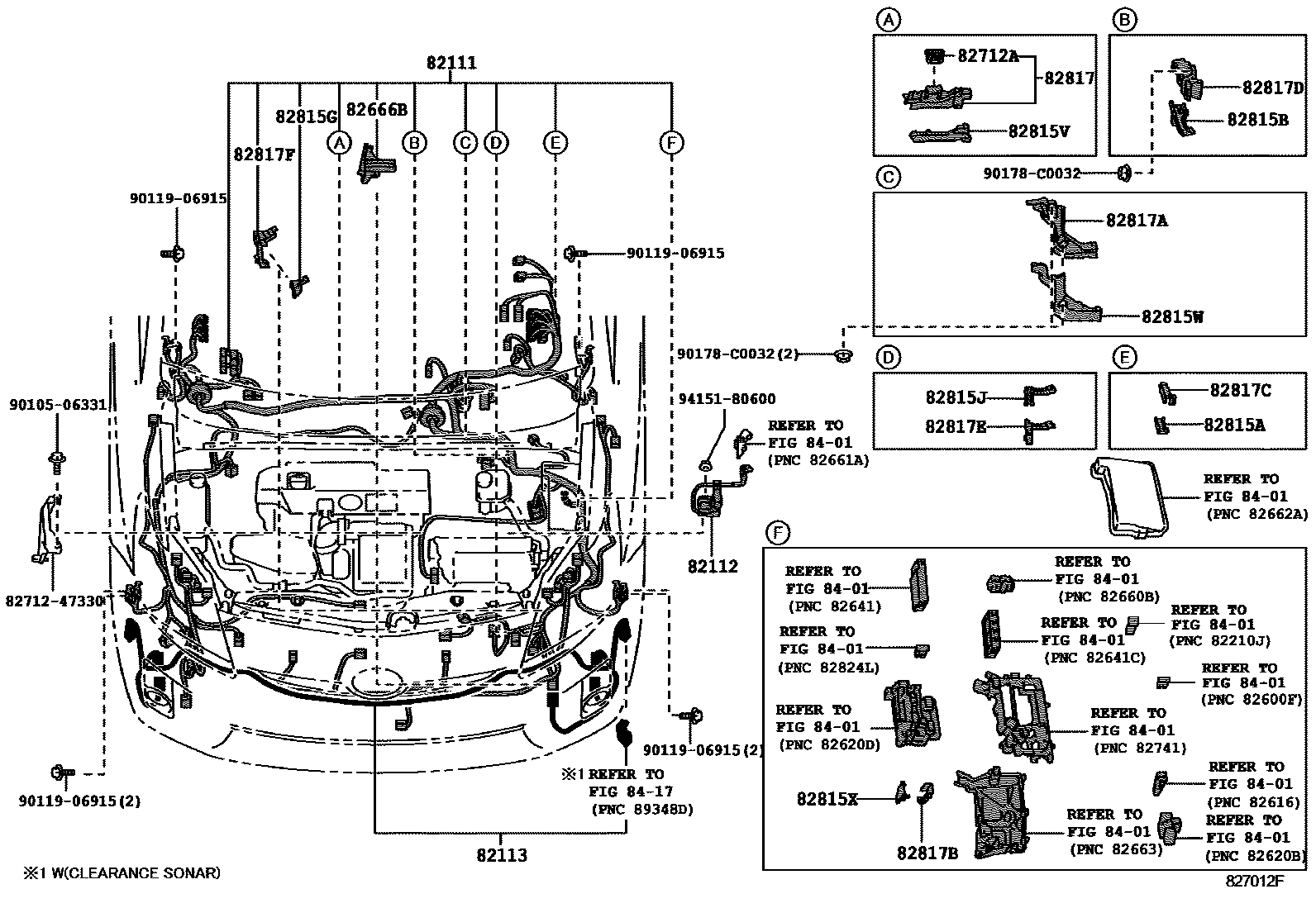

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR & ROOF 0006 1HIGH-TENSION CABLE 0007 1SEAT 0008 1CLAMP & BRACKET 0009 1CABLE BOND 0010 1CONNECTOR 1/2 0011 1CONNECTOR 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-47D00iZVW30201112-201207

sub82111-47D01

main82111-47D01iZVW30201208-201308

sub82111-47D02

main82111-47D02iZVW30201309

82112WIRE, ENGINE ROOM, NO.2

main82112-47030iZVW30201112-201510

82113WIRE, ENGINE ROOM, NO.3

main82113-47110iZVW30201112-201510

82666BHOLDER, CONNECTOR NO.3

main82666-47530iZVW30201112

82712ASUPPORT, WIRING HARNESS

main82712-47270iZVW30201112

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-47380iZVW30201112

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-47600iZVW30201112

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-47C60iZVW30201112

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-47560iZVW30201112

82815VCOVER, WIRING HARNESS PROTECTOR, NO.1

main82815-47620iZVW30201112

82815WCOVER, WIRING HARNESS PROTECTOR, NO.2

main82815-47610iZVW30201112

82815XCOVER, WIRING HARNESS PROTECTOR, NO.3

main82815-47390iZVW30201112

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-47870iZVW30201112

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-47860iZVW30201112

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-47620iZVW30201112

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-47600iZVW30201112

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-47850iZVW30201112

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-47800iZVW30201112

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-47J70iZVW30201112

8401

8417

8271247330CLAMP, WIRING HARNESS

main82712-47330

9010506331

main90105-06331

9011906915

main90119-06915

90178C0032

main90178-C0032

9415180600

main94151-80600

26 parts on this diagram · 11 diagrams in section
