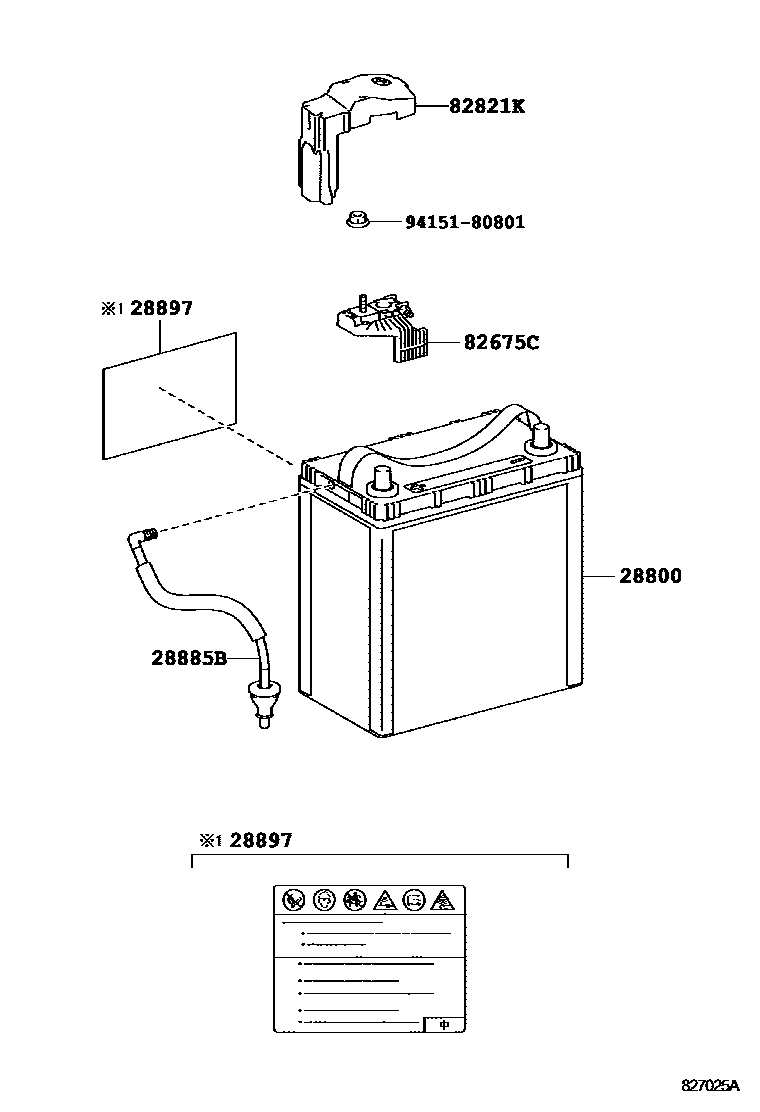

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-21171i5ZRFXE..ZVW30201112-201205

S46B24R,GS YUASA

sub28800-21172

main28800-21171i5ZRFXE..ZVW30201205

S46B24R

sub28800-21172

28885BHOSE, BATTERY

main28885-37010i5ZRFXE..ZVW30201112

28897PLATE, BATTERY CAUTION

main28897-21010i5ZRFXE..ZVW30201112

82675CTERMINAL, JUNCTION

main82675-47160iZVW30201112

82821KCOVER, CONNECTOR

main82821-47110iZVW30201112

9415180801

main94151-80801

6 parts on this diagram · 4 diagrams in section
