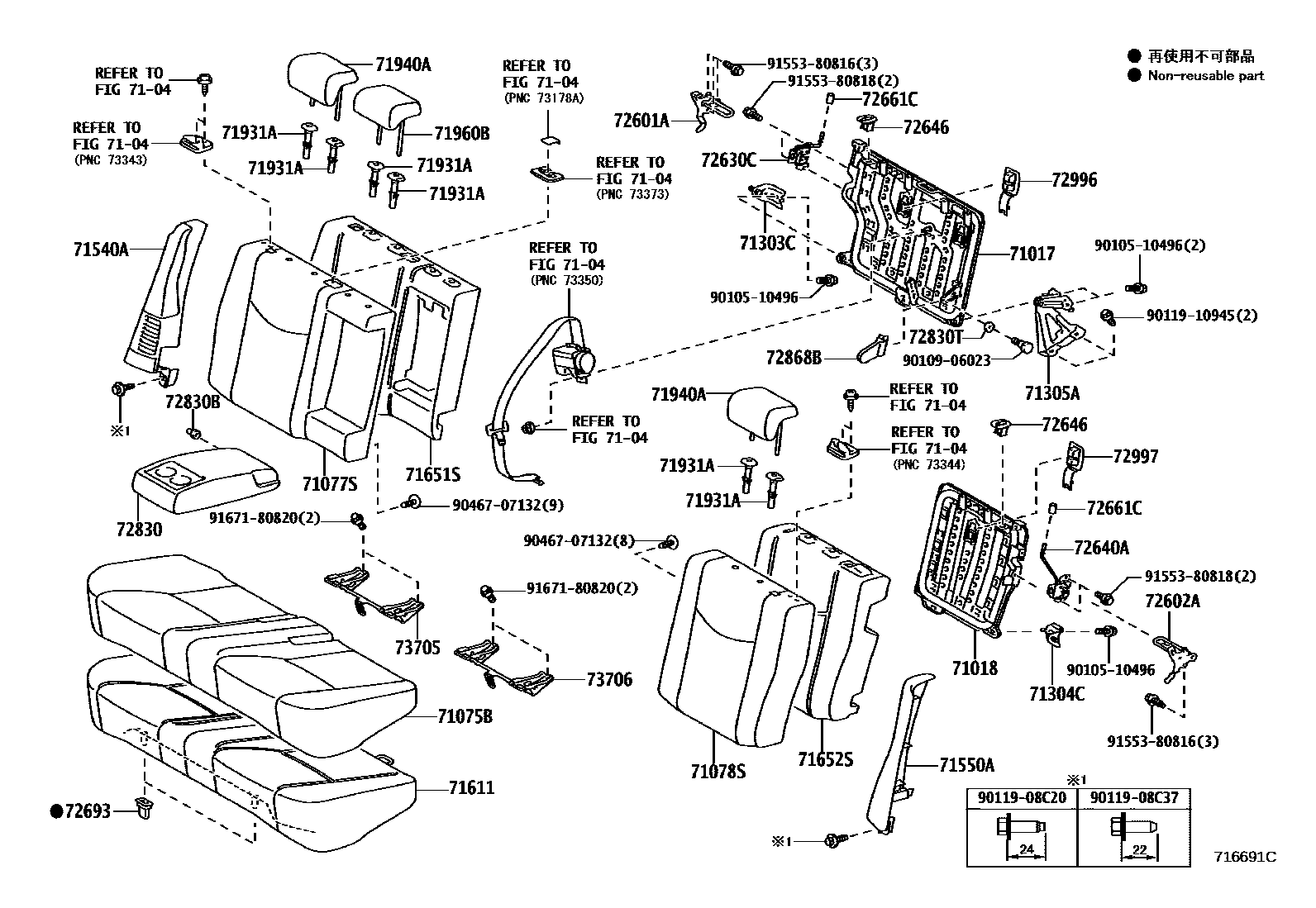

REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-47090iZVW30¥22,100201112

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-47050iZVW30¥15,900201112

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0Q010-B1iZVW30201112-201307

MD.GRAY,TRIM1#

main71075-0Q011-B1iZVW30201307-201510

MD.GRAY,TRIM1#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0Q010-B1iZVW30201112-201307

MD.GRAY,TRIM1#

main71077-0Q011-B1iZVW30201307-201510

MD.GRAY,TRIM1#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0Q010-B1iZVW30201112-201307

MD.GRAY,TRIM1#

main71078-0Q011-B1iZVW30201307-201510

MD.GRAY,TRIM1#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-47020iZVW30¥2,490201112

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-47020iZVW30¥2,070201112

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-47030iZVW30¥6,100201112

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-0Q010-B1iZVW30201112-201510

MD.GRAY,TRIM1#

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-0Q010-B1iZVW30201112-201510

MD.GRAY,TRIM1#

71611PAD, REAR SEAT CUSHION

main71503-0Q010iZVW30201112

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0Q010iZVW30201112

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0Q010iZVW30201112

71931ASUPPORT, REAR SEAT HEADREST

main71930-47020-B0iZVW30201112-201510

W(LOCK),MD.GRAY,TRIM1#

sub71930-47020¥1,040

main71931-47020-B0iZVW30201112-201510

W/O(LOCK),MD.GRAY,TRIM1#

sub71931-47020¥630

71940AHEADREST ASSY, REAR SEAT

main71940-0Q010-B1iZVW30201112-201503

MD.GRAY,TRIM1#

sub71940-0Q011

main71940-0Q011-B1iZVW30201504-201510

MD.GRAY,TRIM1#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-0Q010-B1iZVW30201112-201503

MD.GRAY,TRIM1#

sub71960-0Q011

main71960-0Q011-B1iZVW30201504-201510

MD.GRAY,TRIM1#

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-47030iZVW30¥3,760201112

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72602-47020iZVW30¥3,760201112

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47030iZVW30¥2,960201112-201203

sub72630-47031¥2,960

main72630-47031iZVW30¥2,960201204

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47030iZVW30¥2,960201112-201203

sub72640-47031¥2,960

main72640-47031iZVW30¥2,960201204

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-47010-B0iZVW30201112-201510

MD.GRAY,TRIM1#

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-13030-B7iZVW30201112-201510

MD.GRAY,TRIM1#

sub72661-13030¥460

72693HOOK, REAR SEAT CUSHION LOCK

main72693-02030iZVW30201112

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-0Q010-B0iZVW30201112-201510

MD.GRAY,TRIM1#

72830BBUSH(FOR REAR SEAT CENTER ARMREST)

main72622-47010iZVW30¥100201112

72830TBUSH (FOR REAR SEAT CENTER ARMREST)

main72622-47020iZVW30¥110201112

72868BCOVER, CENTER ARMREST HINGE

main72868-47020-B0iZVW30201112-201510

MD.GRAY,TRIM1#

72996COVER, REAR SEATBACK, RH

main72996-47030-B0iZVW30201112-201510

LT.GRAY,TRIM1#

72997COVER, REAR SEATBACK, LH

main72996-47030-B0iZVW30201112-201510

LT.GRAY,TRIM1#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-47040iZVW30¥2,650201112

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-47050iZVW30¥2,650201112

9010510496

main90105-10496¥130

9010906023

main90109-06023¥110

9011908C20

main90119-08C20¥80

9011908C37

main90119-08C37¥80

9011910945

main90119-10945¥80

9046707132

main90467-07132¥90

9155380816

main91553-80816¥80

9155380818

main91553-80818¥80

9167180820

main91671-80820¥80

41 parts on this diagram · 1 diagram in section
