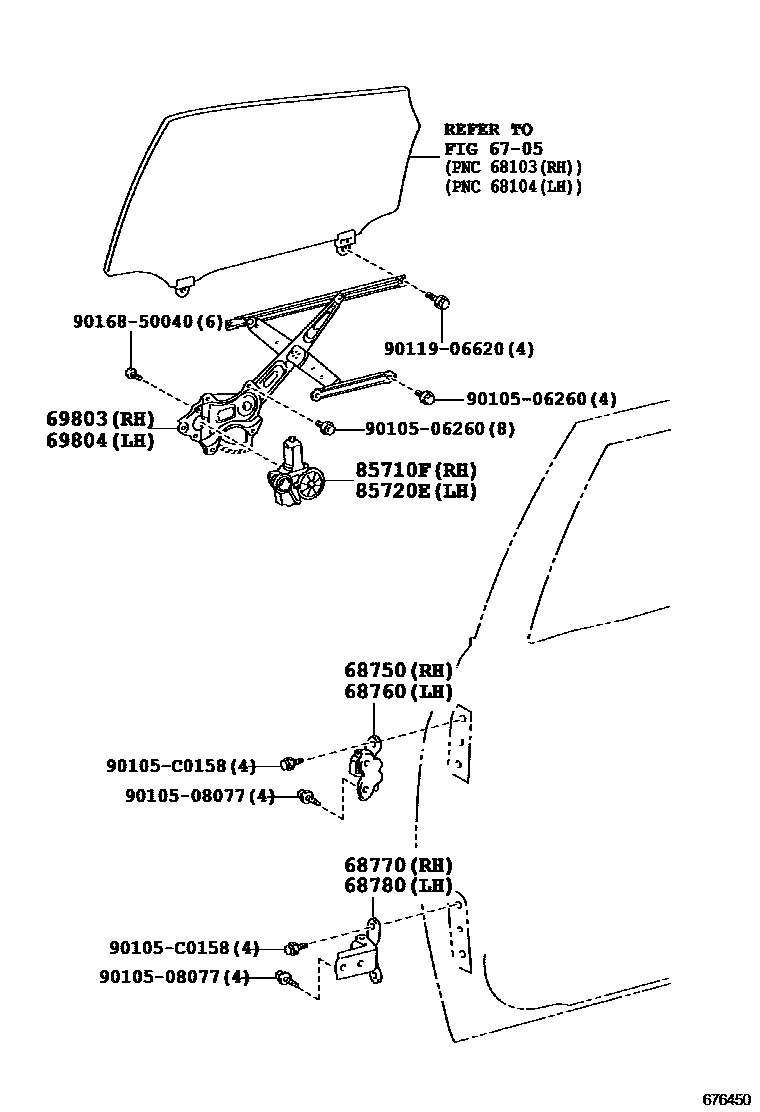

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0P011iZVW30201112

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0P011iZVW30201112

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D021iZVW30201112

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D021iZVW30201112

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-52070iZVW30201112

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-52070iZVW30201112

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-47090iZVW30201112-201208

sub85710-47120

main85710-47120iZVW30201209-201312

sub85710-47130

main85710-47130iZVW30201401

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-47090iZVW30201112-201208

sub85720-47120

main85720-47120iZVW30201209-201312

sub85720-47130

main85720-47130iZVW30201401

9010506260

main90105-06260

9010508077

main90105-08077

90105C0158

main90105-C0158

9011906620

main90119-06620

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
