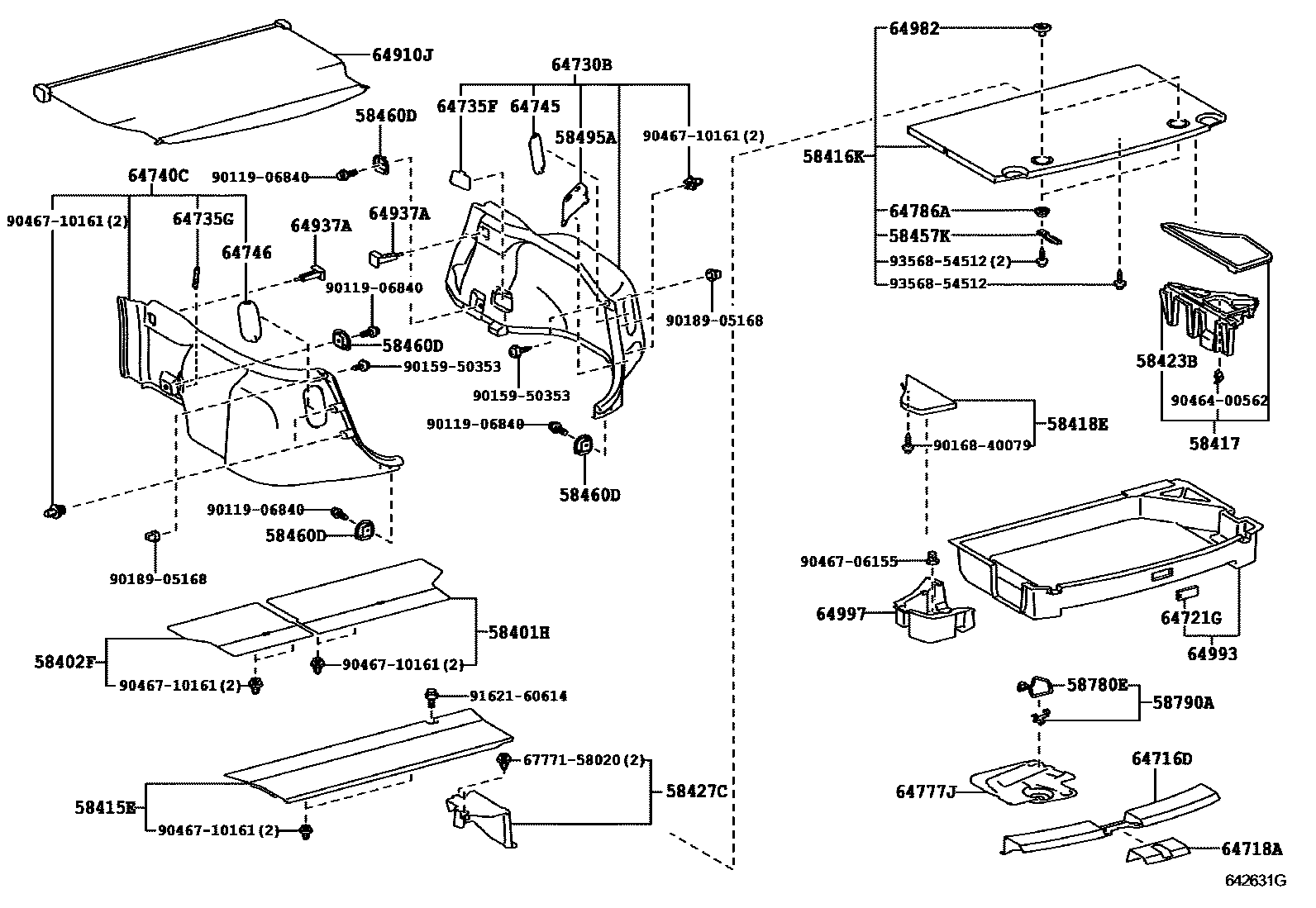

DECK BOARD & DECK TRIM COVER
58401HBOARD SUB-ASSY, REAR FLOOR, NO.1
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
58402FBOARD SUB-ASSY, REAR FLOOR, NO.2
LT.GRAY,TRIM1#
58415EBOARD, REAR FLOOR, NO.1
LT.GRAY,TRIM1#
58416KBOARD, REAR FLOOR, NO.2
58417BOARD, REAR FLOOR, NO.3
58418EBOARD, REAR FLOOR, NO.4
LT.GRAY,TRIM1#
58423BSPACER, REAR FLOOR BOARD, NO.2
LT.GRAY,TRIM1#
58427CSPACER, REAR FLOOR BOARD
58457KBRACKET, DECK BOARD, REAR
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58495APLATE, REAR FLOOR BOARD, UPPER NO.3
LT.GRAY,TRIM1#
58780EBAND ASSY, TOOL BOX
58790ACARRIER ASSY, JACK
64716DCOVER, DECK TRIM, REAR
LT.GRAY,TRIM1#
64718ACOVER, DECK TRIM SERVICE HOLE
LT.GRAY,TRIM1#
64721GCOVER, DECK TRIM, NO.1
64730BPANEL ASSY, DECK TRIM SIDE, RH
LT.GRAY,TRIM1#
64735FCOVER, DECK TRIM SIDE SERVICE HOLE, RH
LT.GRAY,TRIM1#
64735GCOVER, DECK TRIM SIDE SERVICE HOLE, LH
LT.GRAY,TRIM1#
64740CPANEL ASSY, DECK TRIM SIDE, LH
LT.GRAY,TRIM1#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
LT.GRAY,TRIM1#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
LT.GRAY,TRIM1#
64777JCUSHION, SPARE WHEEL
64910JCOVER ASSY, TONNEAU
64937ACAP, TONNEAU COVER HOLDER, NO.1
LT.GRAY,TRIM1#
64993BOX, DECK FLOOR, REAR
64997BOX, DECK FLOOR, LH
6777158020WEATHERSTRIP, BACK DOOR TRIM, RH
9011906840
9015950353
9016840079
9018905168
9046400562
9046706155
9046710161
9162160614
9356854512
39 parts on this diagram · 1 diagram in section
