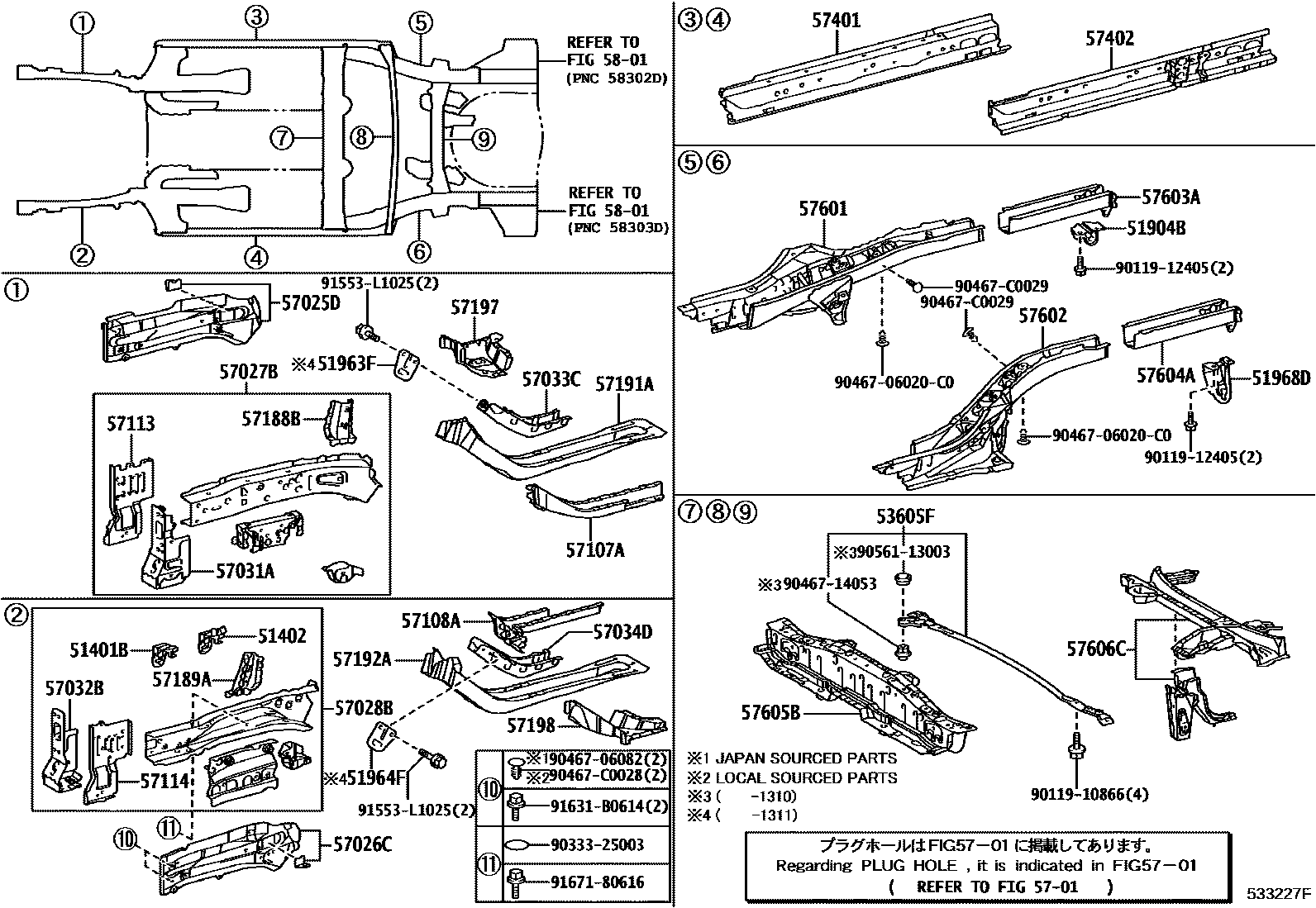

FLOOR SIDE MEMBER

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-02030iZVW30201112

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-02030iZVW30201112

51904BHANGER SUB-ASSY, EXHAUST PIPE, NO.4

main51904-47010iZVW30201112-201510

51963FHOOK, TRANSPORT

main51963-12250iZVW30201112-201311

51964FHOOK, TRANSPORT, LH

main51964-12040iZVW30201112-201311

51968DHOOK, TRANSPORT, REAR LH

main51968-12180iZVW30201112

53605FBRACE SUB-ASSY, REAR SUSPENSION

main53605-47020iZVW30201112-201306

main53605-47021iZVW30201307

5701

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-02040iZVW30201112

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-02040iZVW30201112

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-02050iZVW30201112

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-02040iZVW30201112

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-02030iZVW30201112

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-02030iZVW30201112

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-02060iZVW30201112

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-02060iZVW30201112

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-02060iZVW30201112

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-02060iZVW30201112

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-02090iZVW30201112

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-02090iZVW30201112

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-02030iZVW30201112

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-02030iZVW30201112

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-02120iZVW30201112

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-02120iZVW30201112

57197BOX, TORQUE, FRONT RH

main57197-02060iZVW30201112

57198BOX, TORQUE, FRONT LH

main57198-02060iZVW30201112

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-47050iZVW30201112-201510

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-47070iZVW30201112-201510

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12A00iZVW30201112

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12A00iZVW30201112-201201

main57602-12A01iZVW30201201

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-47030iZVW30201112

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-47030iZVW30201112

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12321iZVW30201112

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-47042iZVW30201112

5801

9011910866

main90119-10866

9011912405

main90119-12405

9033325003

main90333-25003

9046706020C0

main90467-06020C0

9046706082

main90467-06082

9046714053

main90467-14053

90467C0028

main90467-C0028

90467C0029

main90467-C0029

9056113003

main90561-13003

91553L1025

main91553-L1025

91631B0614

main91631-B0614

9167180616

main91671-80616

47 parts on this diagram · 1 diagram in section
