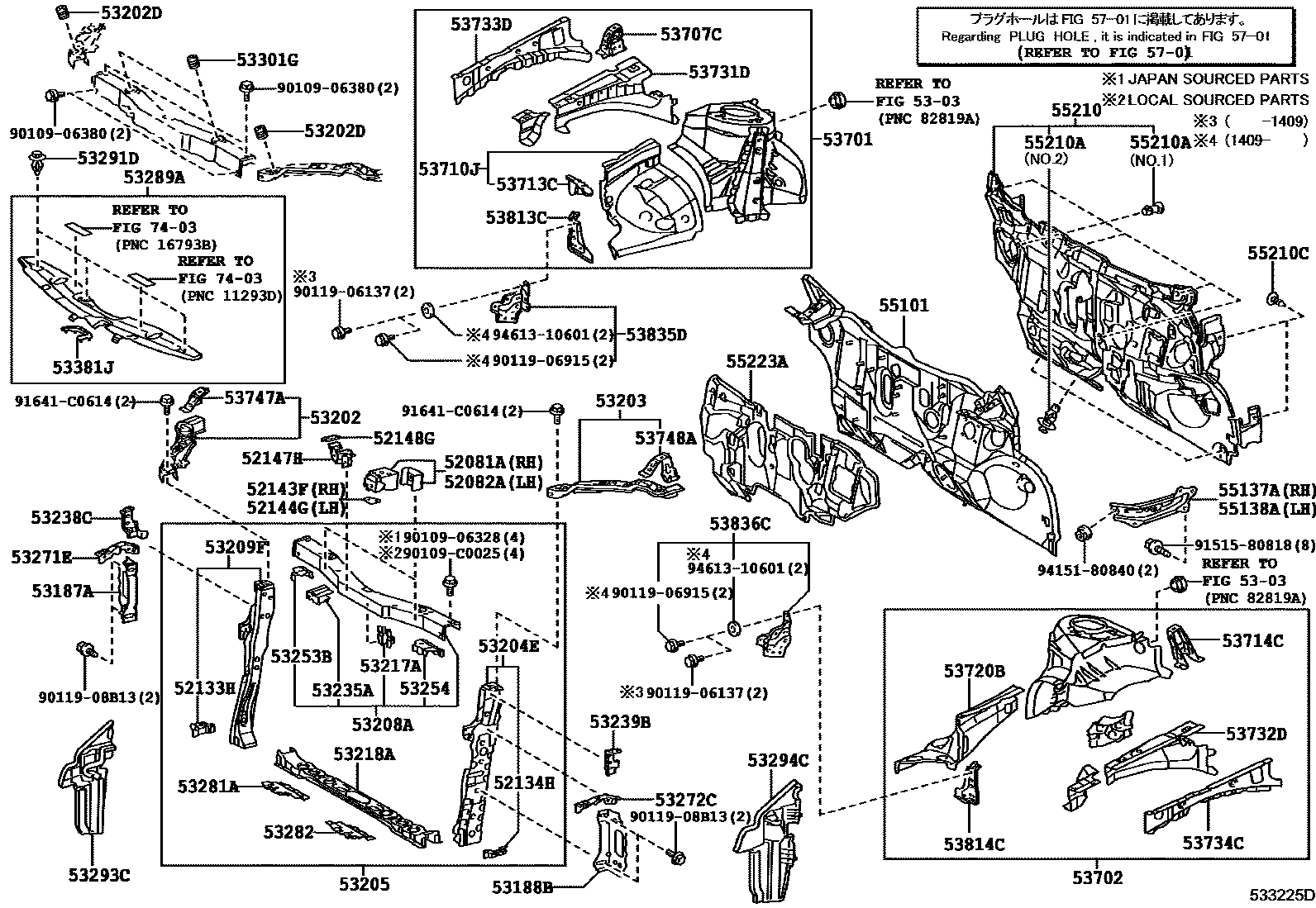

FRONT FENDER APRON & DASH PANEL

52081ASTAY SUB-ASSY, FRONT BUMPER, RH

main52081-47030iZVW30201112

52082ASTAY SUB-ASSY, FRONT BUMPER, LH

main52082-47030iZVW30201112

52133HBRACKET, FRONT BUMPER, RH

main52133-02050iZVW30201112

52134HBRACKET, FRONT BUMPER, LH

main52134-02040iZVW30201112

52143FBRACKET, FRONT BUMPER SIDE, RH

main52143-47010iZVW30201112

52144GBRACKET, FRONT BUMPER SIDE, LH

main52144-47010iZVW30201112

52147HBRACKET, FRONT BUMPER MOUNTING

main52147-47010iZVW30201112

52148GBRACKET, FRONT BUMPER MOUNTING, NO.2

main52148-47010iZVW30201112

53187ASTAY, RADIATOR SUPPORT, RH

main53187-12030iZVW30201112

53188BSTAY, RADIATOR SUPPORT, LH

main53188-12030iZVW30201112

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-47020iZVW30201112

53202DCUSHION, RADIATOR SUPPORT

main90541-15037×2iZVW30201112

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-47020iZVW30201112

53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH

main53204-02020iZVW30201112

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-02140iZVW30201112

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-02901iZVW30201112

53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH

main53209-02050iZVW30201112

53217ABRACE, HOOD LOCK SUPPORT

main53217-02030iZVW30201112

53218ASUPPORT, RADIATOR, LOWER

main53218-02030iZVW30201112

53235ABRACKET, HORN MOUNTING, RH

main53235-02030iZVW30201112

53238CBRACKET, HOOD BUMPER MOUNTING, RH

main53238-47010iZVW30201112

53239BBRACKET, HOOD BUMPER MOUNTING, LH

main53239-47010iZVW30201112

53253BBRACKET, RADIATOR MOUNTING, UPPER

main53253-02030iZVW30201112

53254BRACKET, RADIATOR MOUNTING, UPPER LH

main53254-02030iZVW30201112

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-47020iZVW30201112

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-47020iZVW30201112

53281AREINFORCEMENT, FRONT BODY MOUNTING, RH

main53281-02030iZVW30201112

53282REINFORCEMENT, FRONT BODY MOUNTING, LH

main53282-02030iZVW30201112

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-47032iZVW30201112-201404

main53289-47033iZVW30201405

53291DCLIP, RADIATOR SUPPORT TO FRAME

main90467-07211×3iZVW30201112-201303

main90467-07217×3iZVW30201304

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-47040iZVW30201112

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-47030iZVW30201112

53301GCUSHION, HOOD BUMPER

main90541-15035×2iZVW30201112

53381JSEAL, HOOD TO RADIATOR SUPPORT

main53381-47030iZVW30201112

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-47050iZVW30201112-201510

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-47050iZVW30201112-201510

53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH

main53707-47010iZVW30201112

53710JAPRON ASSY, FRONT FENDER, RH

main53710-12030iZVW30201112

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-02050iZVW30201112

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53708-47050iZVW30201112

53720BAPRON ASSY, FRONT FENDER, LH

main53720-02050iZVW30201112

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-02070iZVW30201112

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-02080iZVW30201112

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-02030iZVW30201112

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-02030iZVW30201112

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-47010iZVW30201112

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-47010iZVW30201112

53813CEXTENSION, FRONT FENDER, RH

main53813-47020iZVW30201112

53814CEXTENSION, FRONT FENDER, LH

main53814-47020iZVW30201112

53835DBRACKET, FRONT SIDE PANEL, RH

main53803-47020iZVW30201409

main53835-47010iZVW30201112-201409

53836CBRACKET, FRONT SIDE PANEL, LH

main53804-47020iZVW30201409

main53836-47010iZVW30201112-201409

55101PANEL SUB-ASSY, DASH

main55101-12B60iZVW30201112-201510

55137ABRACE, DASH TO FRAME, RH

main55137-47030iZVW30201112

55138ABRACE, DASH TO FRAME, LH

main55138-47050iZVW30201112-201312

sub55138-47060

main55138-47080iZVW30201401

55210INSULATOR ASSY, DASH PANEL

main55210-47140iZVW30201112

55210ACLIP

main90467-11122×5iZVW30201112-201510

NO.1:REFER ILLUST.

main90467-11127×3iZVW30201112-201510

NO.2:REFER ILLUST.

55210CCLIP

main90467-08186-C0×4iZVW30201112-201510

BLACK

55223AINSULATOR, DASH PANEL, OUTER

main55223-47050iZVW30201112

5701

9010906328

main90109-06328

9010906380

main90109-06380

90109C0025

main90109-C0025

9011906137

main90119-06137

9011906915

main90119-06915

9011908B13

main90119-08B13

9151580818

main91515-80818

91641C0614

main91641-C0614

9415180840

main94151-80840

9461310601

main94613-10601

69 parts on this diagram · 1 diagram in section
