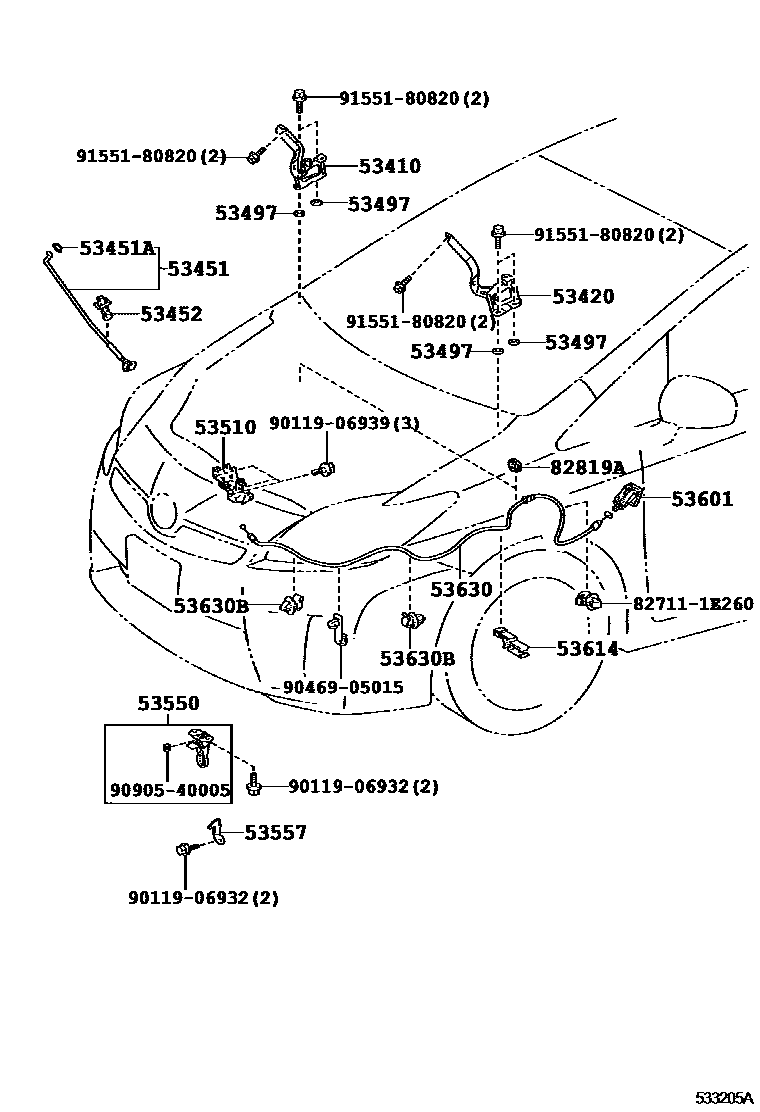

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-47070iZVW30201112

53420HINGE ASSY, HOOD, LH

main53420-47070iZVW30201112

53451ROD, HOOD SUPPORT

main53440-47031iZVW30201112

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iZVW30201112

53452HOLDER, HOOD STAY

main53452-47010iZVW30201112

53497PAD, HOOD HINGE, NO.1

main53497-20070iZVW30201112

T=2.0

main53497-42010iZVW30201112

T=0.5

53510LOCK ASSY, HOOD

main53510-47091iZVW30201112-201206

sub53510-47092

main53510-47092iZVW30201207

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-47011iZVW30201112

53557CATCH, HOOD AUXILIARY HOOK

main53557-47010iZVW30201112

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D010-C0iZVW30201112-201510

BLACK,TRIM1#

sub53601-52010

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-47030iZVW30201112

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-47040iZVW30201112

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iZVW30201112-201211

main90469-C0004iZVW30201212

82819AGROMMET, WIRE

main82817-47G30iZVW30201112

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

9011906932

main90119-06932

9011906939

main90119-06939

9046905015

main90469-05015

9090540005

main90905-40005

9155180820

main91551-80820

20 parts on this diagram · 1 diagram in section
