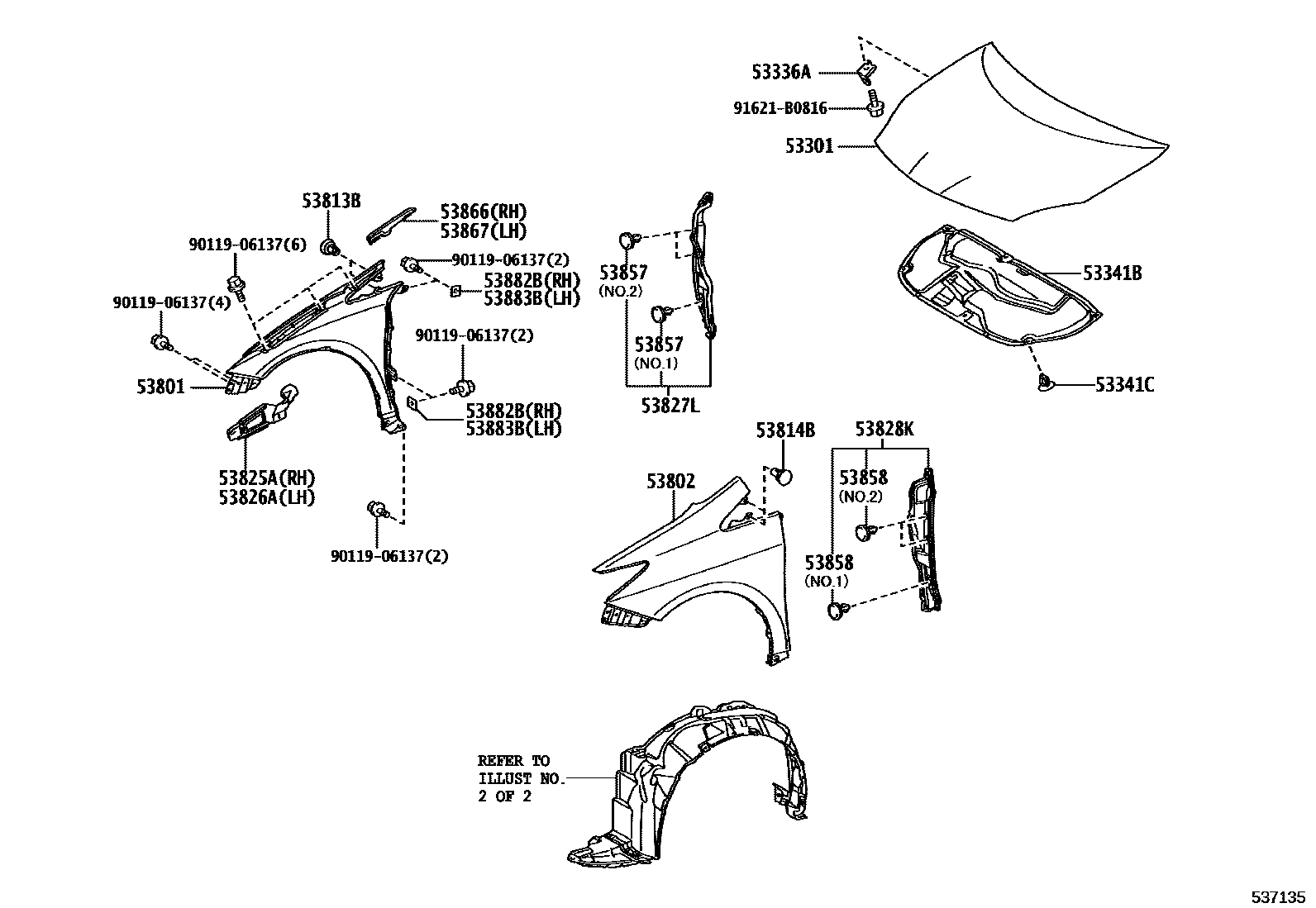

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-47060iZVW30201112

53336ABRACKET, HOOD STAY

main53336-47010iZVW30201112

53341BINSULATOR, HOOD

main53341-47020iZVW30201112

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZVW30201112-201210

main90467-C0025iZVW30201211

53801FENDER SUB-ASSY, FRONT RH

main53801-47050iZVW30201112

53802FENDER SUB-ASSY, FRONT LH

main53802-47050iZVW30201112

53813BEXTENSION, FRONT FENDER, RH

main53813-47040iZVW30201206

main53813-48011iZVW30201112-201206

53814BEXTENSION, FRONT FENDER, LH

main53813-47040iZVW30201206

main53813-48011iZVW30201112-201206

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-47010iZVW30201112

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-47010iZVW30201112

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-47030iZVW30201112

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-47030iZVW30201112-201308

sub53828-47060

main53828-47060iZVW30201309

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iZVW30201112

NO.1

main53857-47020iZVW30201112

NO.2

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iZVW30201112

NO.1

main53857-47020iZVW30201112

NO.2

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-47020iZVW30201112

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-47030iZVW30201112

53882BSEAL, FRONT FENDER, RH

main53882-16030iZVW30201112

53883BSEAL, FRONT FENDER, LH

main53882-16030iZVW30201112

9011906137

main90119-06137

91621B0816

main91621-B0816

20 parts on this diagram · 2 diagrams in section
