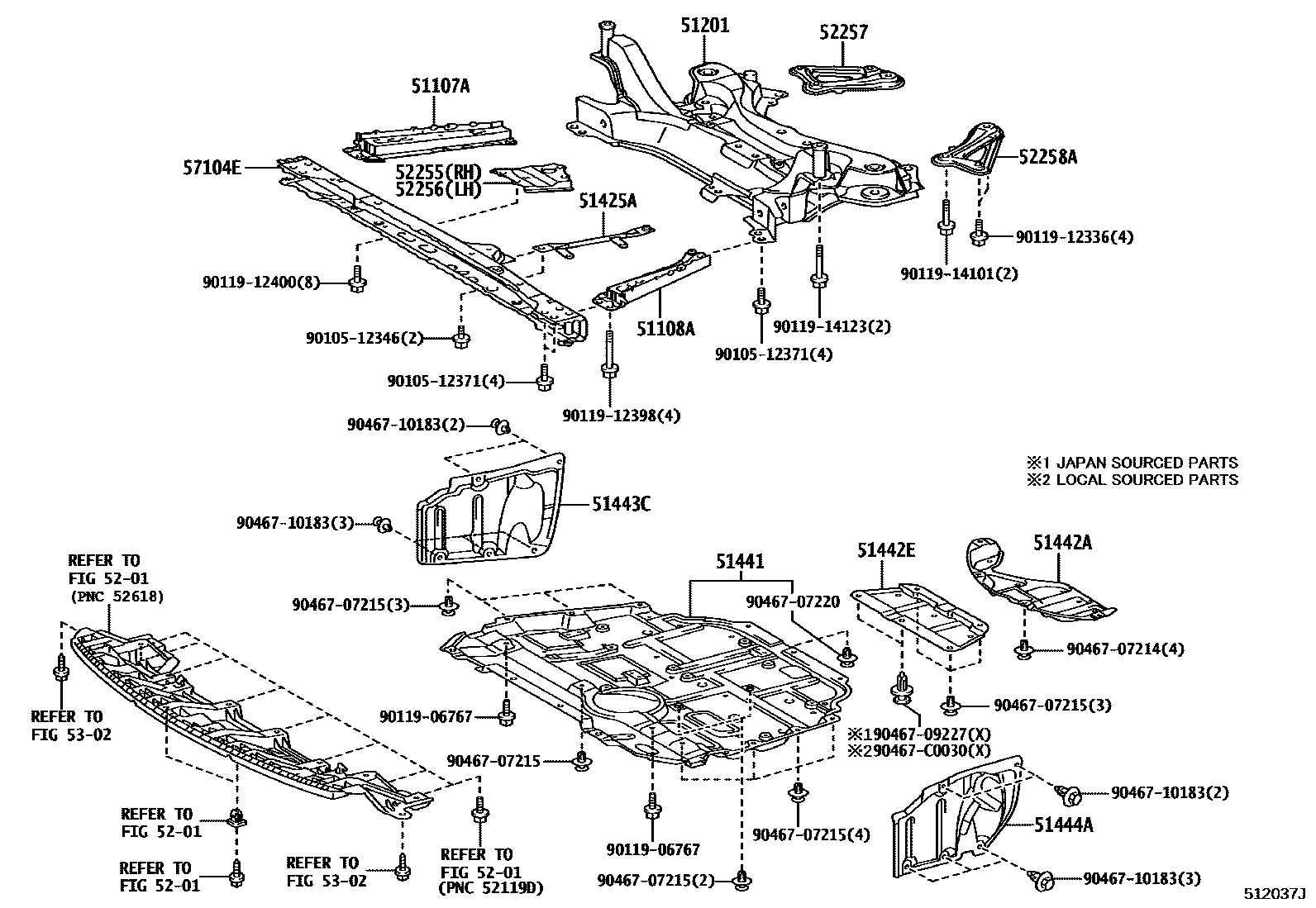

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1CROSSMEMBER & ENGINE UNDER CO0002 1FLOOR UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-12010iZVW30201112

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-12010iZVW30201112

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12441iZVW30201112

sub51201-12442

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51408-47020iZVW30201112

51441COVER, ENGINE UNDER, NO.1

main51410-12104iZVW30201112-201202

sub51410-12105

main51410-12105iZVW30201202

51442ACOVER, ENGINE UNDER, FRONT NO.3

main51442-12210iZVW30201112

51442ECOVER, ENGINE UNDER, NO.2

main51442-12270iZVW30201112

51443CCOVER, ENGINE UNDER, REAR RH

main51443-12080iZVW30201112

51444ACOVER, ENGINE UNDER, REAR LH

main51444-12050iZVW30201112

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-12010iZVW30201112

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-12010iZVW30201112

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-21040iZVW30201112

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-21040iZVW30201112

5302

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-47020iZVW30201112

9010512346

main90105-12346

9010512371

main90105-12371

9011906767

main90119-06767

9011912336

main90119-12336

9011912398

main90119-12398

9011912400

main90119-12400

9011914101

main90119-14101

9011914123

main90119-14123

9046707214

main90467-07214

9046707215

main90467-07215

9046707220

main90467-07220

9046709227

main90467-09227

9046710183

main90467-10183

90467C0030

main90467-C0030

30 parts on this diagram · 2 diagrams in section
