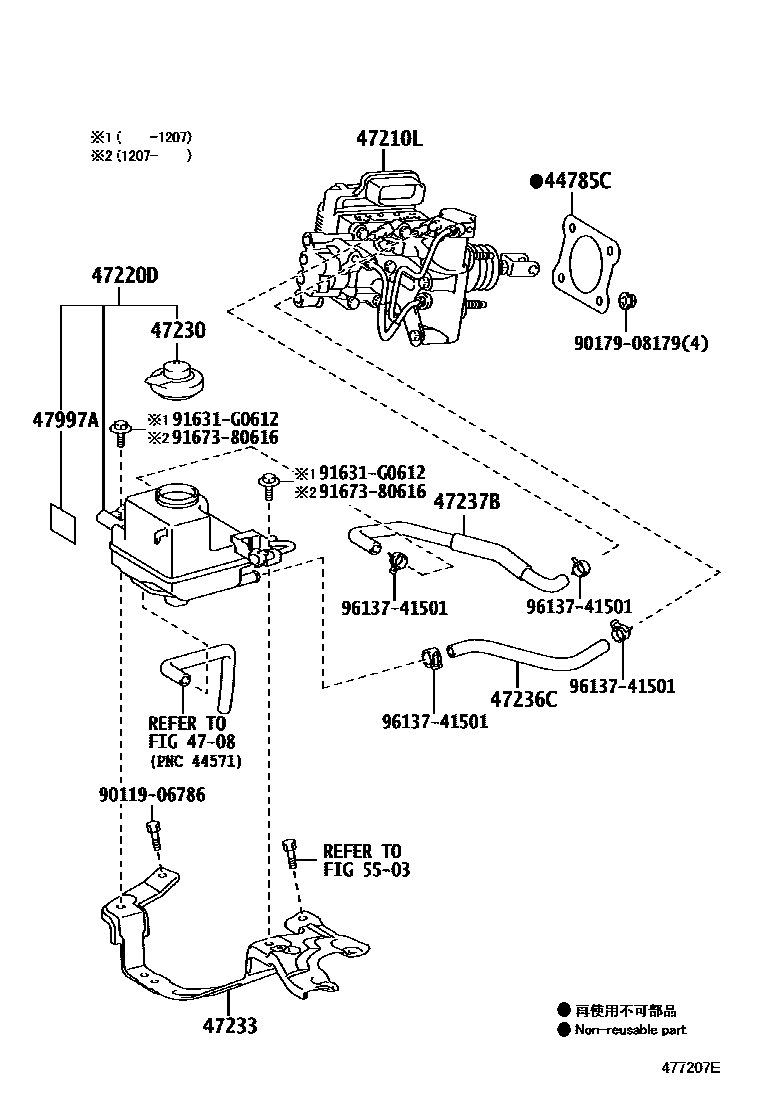

BRAKE MASTER CYLINDER

44785CGASKET, BRAKE BOOSTER

main44785-02050iZVW30201112

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-47180iZVW30201112

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-47080iZVW30201112

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iZVW30201112

47233BRACKET, RESERVOIR

main47233-47050iZVW30201112

47236CHOSE, RESERVOIR TUBE

main47234-47060iZVW30201112

47237BHOSE, RESERVIOR TUBE

main47235-47060iZVW30201112

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iZVW30201112

5503

9011906786

main90119-06786

9017908179

main90179-08179

91631G0612

main91631-G0612

9167380616

main91673-80616

9613741501

main96137-41501

15 parts on this diagram · 1 diagram in section
