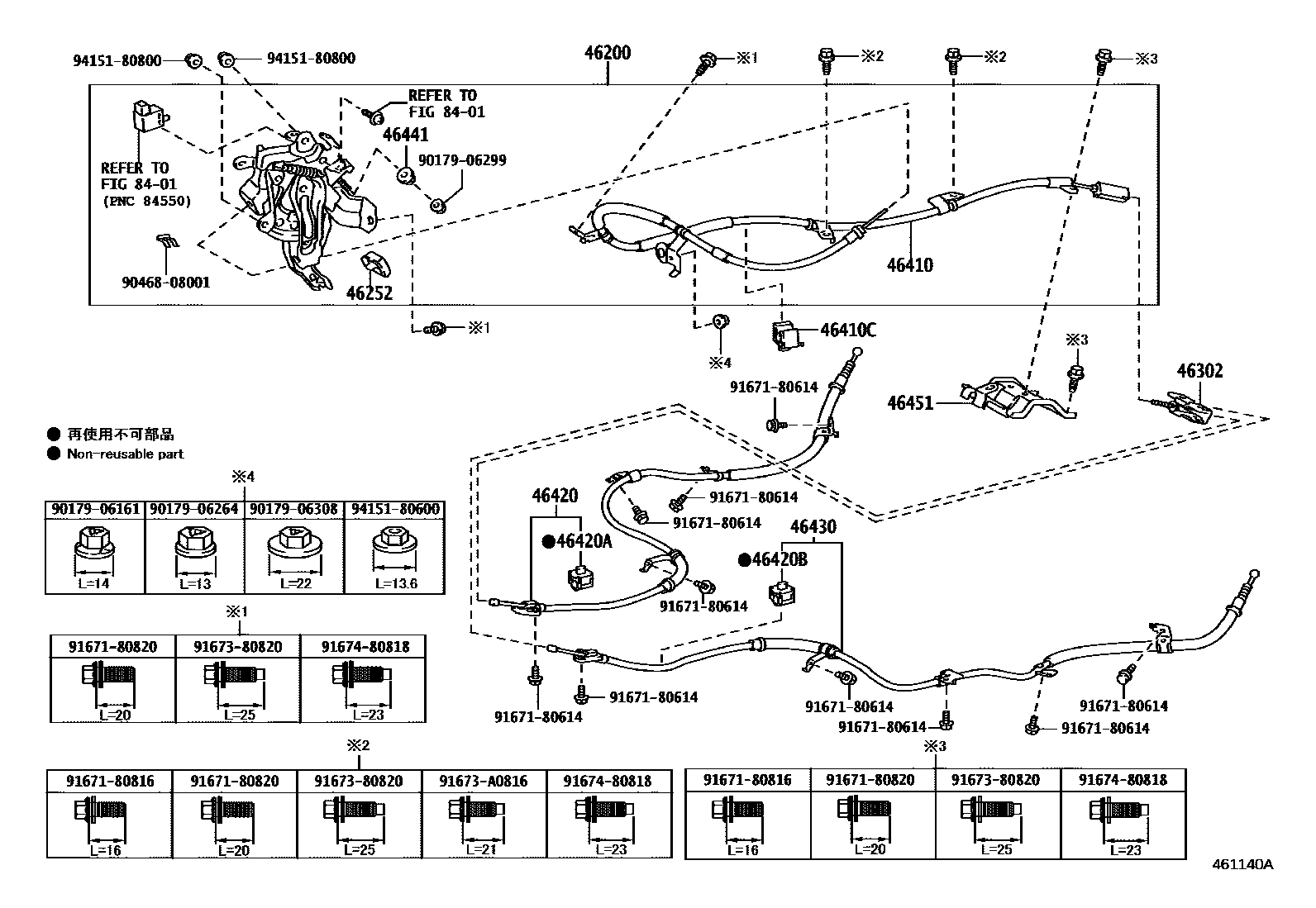

PARKING BRAKE & CABLE

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-47070iZVW30201112

46252PAD, PARKING PEDAL

main46252-47010iZVW30201112

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-47020iZVW30201112

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-47070iZVW30201112

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-47020iZVW30201112

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-47080iZVW30201112

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-12030iZVW30201112

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46402-12030iZVW30201112

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-47080iZVW30201112

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iZVW30201112

46451BRACKET, CABLE SUPPORT

main46451-47010iZVW30201112

8401

9017906161

main90179-06161

9017906264

main90179-06264

9017906299

main90179-06299

9017906308

main90179-06308

9046808001

main90468-08001

9167180614

main91671-80614

9167180816

main91671-80816

9167180820

main91671-80820

9167380820

main91673-80820

91673A0816

main91673-A0816

9167480818

main91674-80818

9415180600

main94151-80600

9415180800

main94151-80800

25 parts on this diagram · 1 diagram in section
