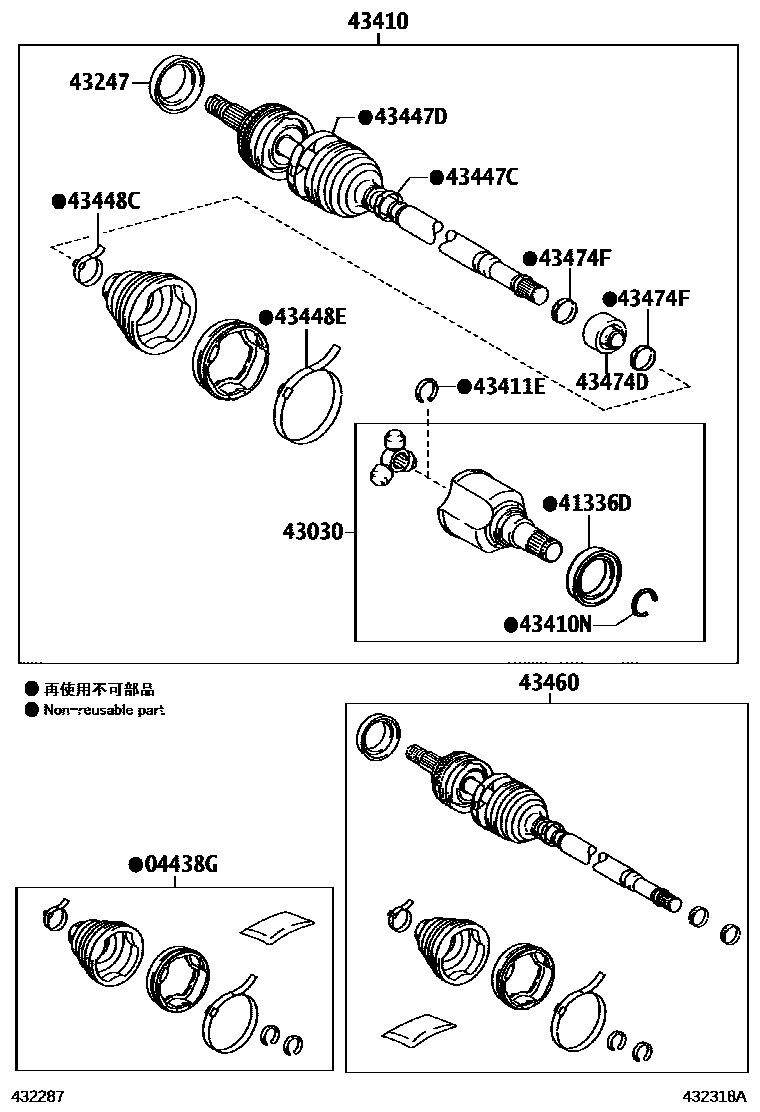

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-47031iZVW30201112-201509

sub04437-47032

main04437-47032iZVW30201509-201510

sub04437-47033

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iZVW30201112

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-47010iZVW30201112

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-47010iZVW30201112-201510

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-47030iZVW30201112-201501

sub43410-47031

main43410-47031iZVW30201501-201510

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-33002iZVW30201112

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iZVW30201112

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iZVW30201112

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iZVW30201112

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iZVW30201112

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iZVW30201112

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49406iZVW30201112-201501

sub43460-49407

main43460-49407iZVW30201501-201509

sub43460-49408

main43460-49408iZVW30201509-201510

sub43460-49435

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-47020iZVW30201112

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12100iZVW30201112

14 parts on this diagram · 3 diagrams in section
