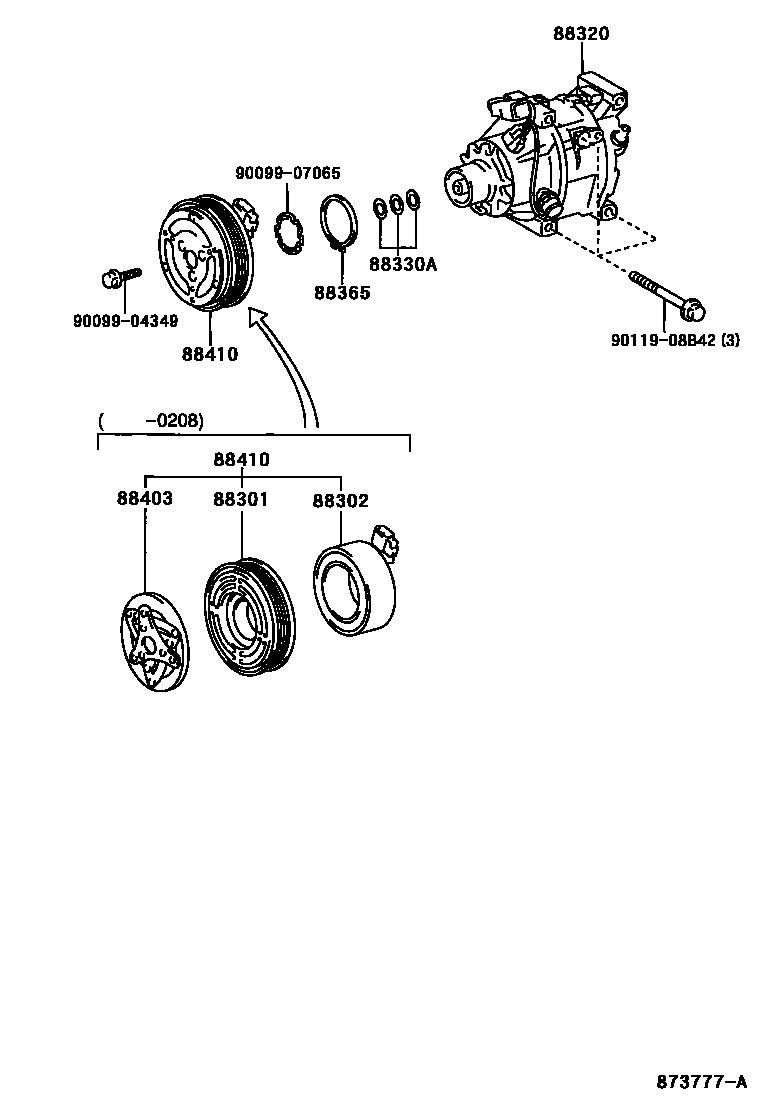

HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-52020iZZW30199912-200208

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16070iZZW30199912-200208

88320COMPRESSOR ASSY, COOLER

main88320-17110iZZW30199912-200208

main88320-17120iZZW30..LHD200208-200402

AIR CONDITIONER (DOP)

main88320-17120iZZW30200208-200308

AIR CONDITIONER(MANUAL)

main88320-47050iZZW30200308-200509

AIR CONDITIONER(MANUAL)

main88320-47050iZZW30..LHD200402-200509

AIR CONDITIONER (DOP)

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iZZW30..RHD..EUR199912-200509

88365RING, SNAP

main88365-87201iZZW30199912-200509

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16020iZZW30199912-200208

88410CLUTCH ASSY, MAGNET

main88410-17090iZZW30..LHD200208-200402

AIR CONDITIONER (DOP)

main88410-17090iZZW30200208-200308

AIR CONDITIONER(MANUAL)

main88410-17110iZZW30200308-200509

AIR CONDITIONER(MANUAL)

main88410-17110iZZW30..LHD200402-200509

AIR CONDITIONER (DOP)

main88410-52020iZZW30199912-200208

sub88410-52090

9009904349

main90099-04349

9009907065

main90099-07065

9011908B42

main90119-08B42

10 parts on this diagram · 1 diagram in section
