HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

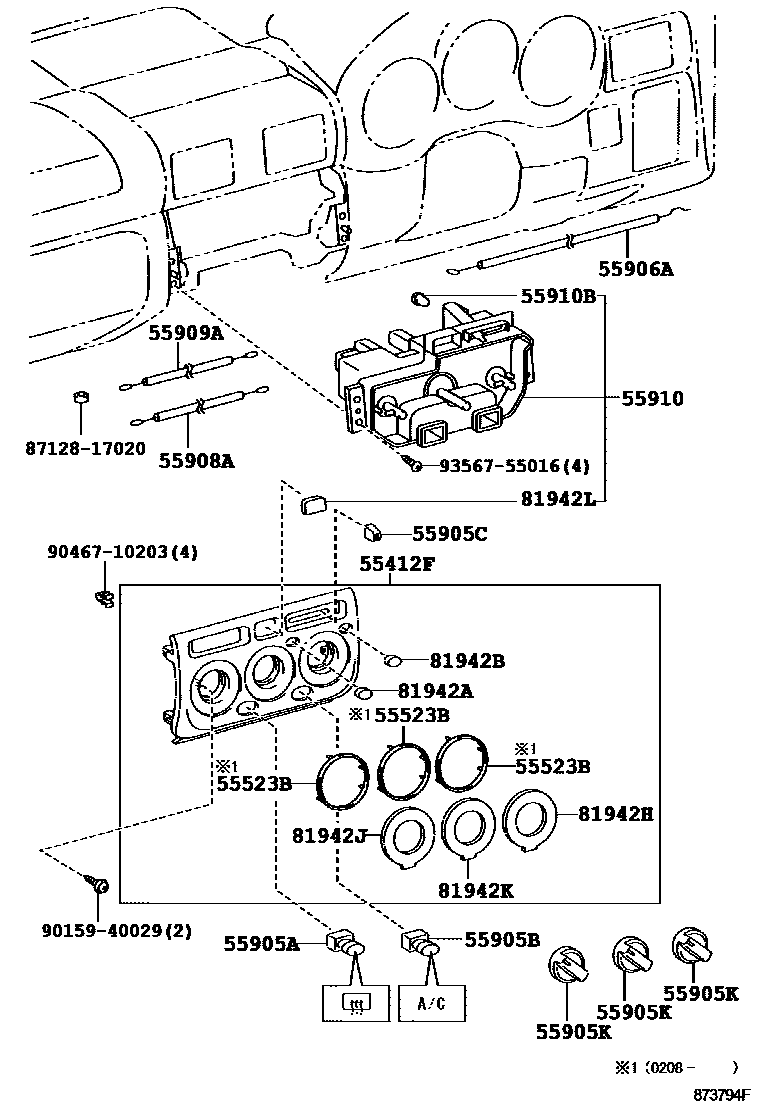

0001 1CONTROL 0002 1CONTROL 0003 1FRONT DUCT 0004 1DUCT--W/O(AIR CONDITIONER)

55412FPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-17110-C0iZZW30..RHD199912-200008

BLACK,TRIM2#,3#,5#

sub55412-17111

main55412-17111-C0iZZW30..RHD200008-200208

BLACK,TRIM2#,3#,4#,5#

sub55412-17180

main55412-17120-C0iZZW30..LHD199912-200008

BLACK,TRIM2#,3#,5#

sub55412-17121

main55412-17121-C0iZZW30..LHD200008-200208

BLACK,TRIM2#,3#,4#,5#

sub55412-17190

main55412-17130-C0iZZW30..RHD199912-200008

W(AIR CONDITIONER),BLACK,TRIM2#,3#,5#

sub55412-17131

main55412-17131-C0iZZW30..RHD200008-200208

W(AIR CONDITIONER),BLACK,TRIM2#,3#,4#,5#

sub55412-17200

main55412-17140-C0iZZW30..LHD199912-200008

W(AIR CONDITIONER),BLACK,TRIM2#,3#,5#

sub55412-17141

main55412-17141-C0iZZW30..LHD200008-200208

W(AIR CONDITIONER),BLACK,TRIM2#,3#,4#,5#

sub55412-17210

main55412-17180-C0iZZW30..RHD200208-200509

BLACK,TRIM1#,2#,3#

main55412-17190-C0iZZW30..LHD200208-200509

BLACK,TRIM1#,2#,3#

main55412-17200-C0iZZW30..RHD200208-200509

W(AIR CONDITIONER),BLACK,TRIM1#,2#,3#

main55412-17210-C0iZZW30..LHD200208-200509

W(AIR CONDITIONER),BLACK,TRIM1#,2#,3#

main55412-17230iZZW30..RHD200402-200509

main55412-17240iZZW30..LHD200402-200509

main55412-17250iZZW30..RHD200402-200509

W(AIR CONDITIONER)

main55412-17260iZZW30..LHD200402-200509

W(AIR CONDITIONER)

55523BCOVER, HEATER CONTROL OPENING

main55523-17010iZZW30200208-200509

55905AKNOB, HEATER CONTROL

main55905-17060iZZW30199912-200509

55905BKNOB, HEATER CONTROL, NO.2

main55905-17070iZZW30199912-200509

55905CKNOB, HEATER CONTROL, NO.3

main55905-2B040iZZW30199912-200509

55905KKNOB, HEATER CONTROL, NO.4

main55905-17080iZZW30199912-200208

sub55905-17090

main55905-17090iZZW30200208-200509

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-17030iZZW30..RHD199912-200509

main55906-17050iZZW30..LHD199912-200509

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-17030iZZW30..RHD199912-200509

main55908-17040iZZW30..LHD199912-200509

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-17090iZZW30199912-200509

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-17090iZZW30..RHD199912-200208

sub55910-17091

main55910-17091iZZW30..RHD200208-200509

main55910-17100iZZW30..LHD199912-200208

sub55910-17101

main55910-17101iZZW30..LHD200208-200509

55910BBULB, HEATER CONTROL

main90010-05124iZZW30199912-200509

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-17070iZZW30199912-200208

sub81942-46080

main81942-17071iZZW30200208-200509

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-17080iZZW30199912-200208

sub81942-46090

main81942-17081iZZW30200208-200509

81942HSHEET, HEATER CONTROL NAME, NO.3

main81942-17090iZZW30..RHD199912-200008

sub81942-17091

main81942-17091iZZW30..RHD200008-200208

main81942-17140iZZW30..LHD199912-200008

sub81942-17141

main81942-17141iZZW30..LHD200008-200208

main81942-17160iZZW30..RHD200208-200509

main81942-17210iZZW30..LHD200208-200509

81942JSHEET, HEATER CONTROL NAME, NO.4

main81942-17100iZZW30..RHD199912-200008

sub81942-17101

main81942-17101iZZW30..RHD200008-200208

main81942-17150iZZW30..LHD199912-200008

sub81942-17151

main81942-17151iZZW30..LHD200008-200208

sub81942-17111

main81942-17170iZZW30..RHD200208-200509

main81942-17220iZZW30..LHD200208-200509

sub81942-17180

81942KSHEET, HEATER CONTROL NAME, NO.5

main81942-17130iZZW30199912-200008

sub81942-17131

main81942-17131iZZW30200008-200208

main81942-17200iZZW30200208-200509

81942LSHEET, HEATER CONTROL NAME, NO.6

main81942-17050iZZW30199912-200509

8712817020GROMMET, HEATER

main87128-17020

9015940029

main90159-40029

9046710203

main90467-10203

9356755016

main93567-55016

21 parts on this diagram · 4 diagrams in section
