INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

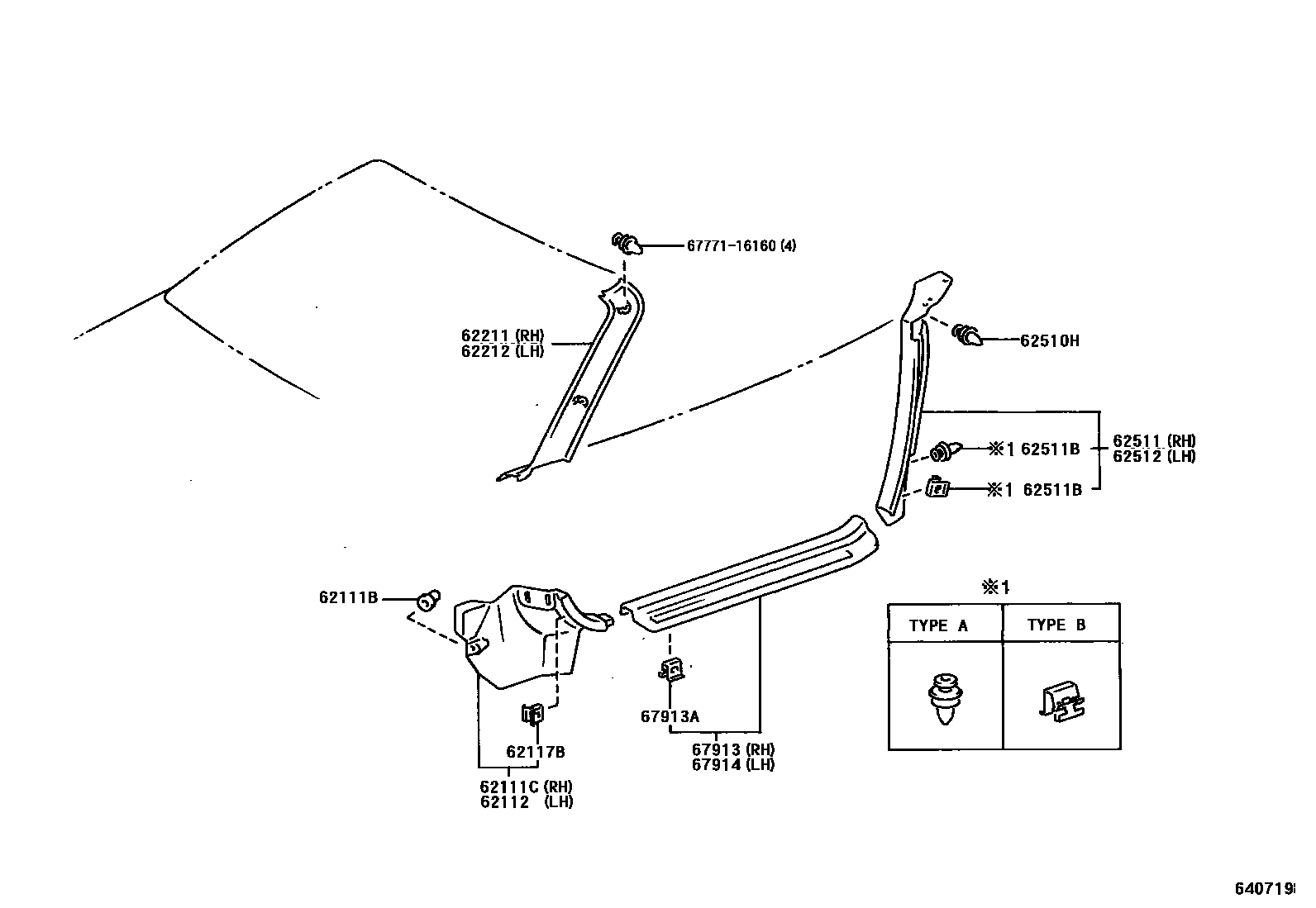

Parts diagram
62111BCLIP(FOR COWL SIDE TRIM)
main90467-05050-22i199912-200208
BLACK,TRIM2#,3#,5#
sub90467-05050
main90467-05050-22i200208-200509
BLACK,TRIM1#,2#,3#,4#
sub90467-05050
62111CBOARD, COWL SIDE TRIM, RH
main62111-17030-C0i199912-200008
BLACK,TRIM2#,3#,5#
main62111-17030-C0i200208-200509
BLACK,TRIM1#,2#,3#,4#
main62111-17030-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#
main62111-17040-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#
main62111-17040-C0i199912-200008
BLACK,TRIM2#,3#,5#
main62111-17040-C0i200208-200509
BLACK,TRIM1#,2#,3#,4#
62112BOARD, COWL SIDE TRIM, LH
main62112-17040-C0i199912-200008
BLACK,TRIM2#,3#,5#
main62112-17040-C0i200208-200509
BLACK,TRIM1#,2#,3#,4#
main62112-17040-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#
main62112-17050-C0i200208-200509
BLACK,TRIM1#,2#,3#
main62112-17050-C0i199912-200008
BLACK,TRIM2#,3#,5#
main62112-17050-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90468-05123i199912-200509
62211GARNISH, FRONT PILLAR, RH
main62211-17080-C0i199912-200008
BLACK,TRIM2#,3#,5#
main62211-17080-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#
main62211-17080-C0i200208-200509
BLACK,TRIM1#,2#,3#,4#
62212GARNISH, FRONT PILLAR, LH
main62212-17080-C0i199912-200008
BLACK,TRIM2#,3#,5#
main62212-17080-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#
main62212-17080-C0i200208-200509
BLACK,TRIM1#,2#,3#,4#
62510HCLIP(FOR QUARTER TRIM FRONT PANEL)
main90467-10161i199912-200509
62511BOARD, QUARTER INSIDE TRIM, RH
main62511-17080-C0i199912-200008
BLACK,TRIM2#,3#,5#
main62511-17080-C0i200208-200509
BLACK,TRIM1#,2#,3#,4#
main62511-17080-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#
main62511-17090-C0i200008-200208
W(DETACHABLE TOP),BLACK,TRIM2#,3#,4#,5#
main62511-17090-C0i199912-200008
W(DETACHABLE TOP),BLACK,TRIM2#,3#,5#
main62511-17090-C0i200208-200509
W(DETACHABLE TOP),BLACK,TRIM1#,2#,3#,4#
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-10192i199912-200509
TYPE A:REFER TO ILLUSTRATION
main90468-05112i199912-200509
TYPE B:REFER TO ILLUSTRATION
62512BOARD, QUARTER INSIDE TRIM, LH
main62512-17070-C0i199912-200008
BLACK,TRIM2#,3#,5#
main62512-17070-C0i200208-200509
BLACK,TRIM1#,2#,3#,4#
main62512-17070-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#
main62512-17080-C0i200208-200509
W(DETACHABLE TOP),BLACK,TRIM1#,2#,3#,4#
main62512-17080-C0i199912-200008
W(DETACHABLE TOP),BLACK,TRIM2#,3#,5#
main62512-17080-C0i200008-200208
W(DETACHABLE TOP),BLACK,TRIM2#,3#,4#,5#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-17060-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#
main67913-17060-C0i199912-200008
BLACK,TRIM2#,3#,5#
main67913-17060-C0i200208-200509
BLACK,TRIM1#,2#,3#
main67913-17070-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#
main67913-17070-C0i200208-200509
BLACK,TRIM1#,2#,3#,4#
main67913-17070-C0i199912-200008
BLACK,TRIM2#,3#,5#
67913ACLIP(FOR SCUFF PLATE)
main90468-05123i199912-200509
67914PLATE, FRONT DOOR SCUFF, LH
main67914-17070-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#
main67914-17070-C0i200208-200509
BLACK,TRIM1#,2#,3#
main67914-17070-C0i199912-200008
BLACK,TRIM2#,3#,5#
main67914-17080-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#
main67914-17080-C0i200208-200509
BLACK,TRIM1#,2#,3#,4#
main67914-17080-C0i199912-200008
BLACK,TRIM2#,3#,5#
6777116160WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16160

14 parts on this diagram · 1 diagram in section
