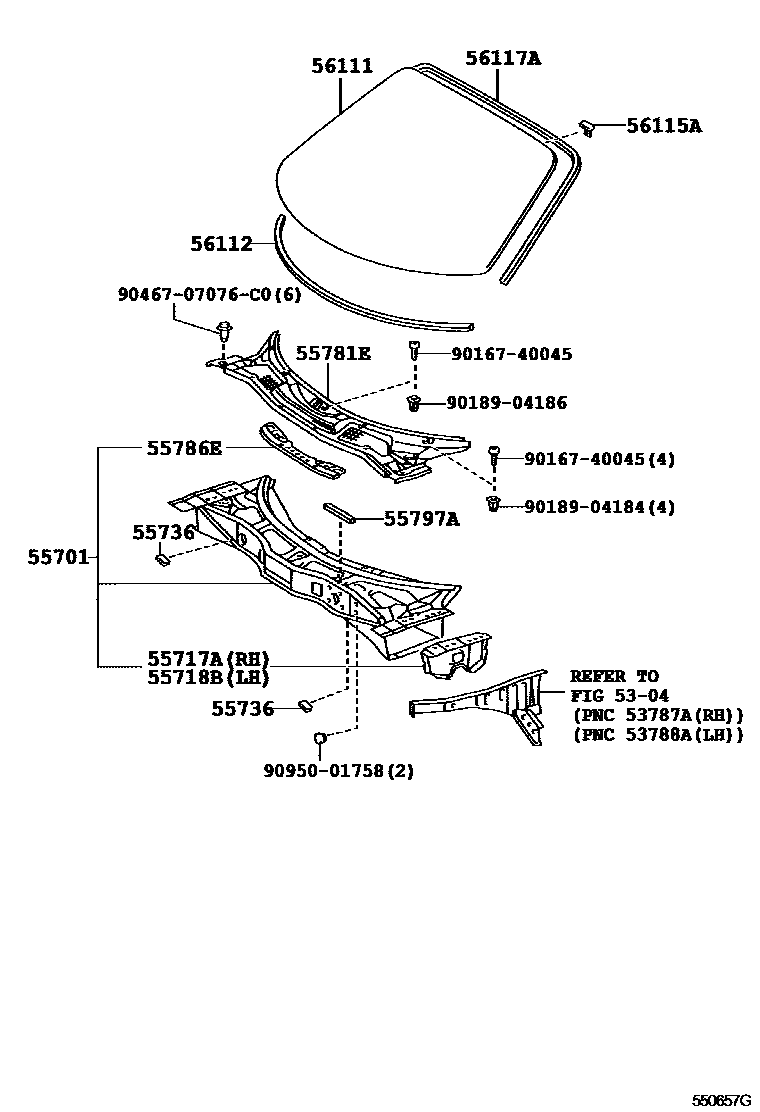

COWL PANEL & WINDSHIELD GLASS

5304

55701PANEL SUB-ASSY, COWL

main55700-17130iZZW30..RHD¥32,900199912-200208

sub55700-17131¥33,000

main55700-17131iZZW30..RHD¥33,000200208-200509

main55700-17150iZZW30..LHD¥32,900199912-200208

sub55700-17140¥32,900

main55700-17151iZZW30..LHD..6F¥32,900200208-200509

sub55700-17141¥33,000

main55700-17170iZZW30..LHD..6FS¥33,000200403-200509

55717APANEL, COWL TOP SIDE, INNER RH

main55717-17030iZZW30¥2,120199912-200509

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-17030iZZW30¥2,120199912-200509

55736SEAL, WATER GUARD PLATE

main55736-17020iZZW30¥160200208-200509

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-17050iZZW30..RHD¥13,500199912-200405

sub55708-17051¥13,500

main55708-17051iZZW30..RHD¥13,500200405-200509

sub55708-17052¥13,400

main55708-17060iZZW30..LHD¥13,500199912-200405

sub55708-17061¥13,500

main55708-17061iZZW30..LHD¥13,500200405-200509

main55708-17080iZZW30..LHD¥14,800199912-200405

COLD SPEC

sub55708-17081¥14,800

main55708-17081iZZW30..LHD¥14,800200405-200509

COLD SPEC

55786EPLATE, COWL TOP VENTILATOR LOUVER

main55786-17030iZZW30¥1,340199912-200509

55797ASEAL, COWL WATER EXTRACT

main55797-17020iZZW30¥160199912-200509

56111GLASS, WINDSHIELD

main56101-17010iZZW30¥0199912-200208

*LAM,T=4.56,GREEN

main56101-17030iZZW30¥95,500200208-200509

*LAM,T=4.56,GREEN

56112DAM, WINDOW GLASS ADHESIVE, NO.2

main04562-12010iZZW30¥2,100199912-200509

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-33020iZZW30¥360199912-200509

56117ADAM, WINDOW GLASS ADHESIVE

main04562-12010iZZW30¥2,100199912-200208

main04562-12010iZZW30¥2,100200208-200509

L=2174

9016740045

main90167-40045¥120

9018904184

main90189-04184¥130

9018904186

main90189-04186¥90

9046707076C0

main90467-07076C0

9095001758

main90950-01758¥110

17 parts on this diagram · 1 diagram in section
