FLOOR SIDE MEMBER
51902BHANGER SUB-ASSY, EXHAUST PIPE, NO.2
51919DPLATE, SPARE WHEEL MOUNTING
5201
52141FARM, FRONT BUMPER, RH
52142GARM, FRONT BUMPER, LH
53653ABRACE, REAR SUSPENSION, LOWER RH
53654ABRACE, REAR SUSPENSION, LOWER LH
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
57145AREINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57146PLATE, FRONT SIDE MEMBER, CENTER LH
57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH
57242REINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH
57245REINFORCEMENT, FRONT SIDE MEMBER, NO.9 RH
57246REINFORCEMENT, FRONT SIDE MEMBER, NO.9 LH
57249BRACKET, FLEXIBLE HOSE, NO.1
57249ABRACKET, FREXIBLE HOUSE, NO.1, LH
57249BBRACKET, FLEXIBLE HOSE, NO.1
57307CPANEL SUB-ASSY, FRONT LUGGAGE END
57458BPATCH, FLOOR SIDE MEMBER, REAR LH
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57628BPLATE, REAR FLOOR SIDE MEMBER, RH
57629BPLATE, REAR FLOOR SIDE MEMBER, LH
58035BBRACE SUB-ASSY, REAR FLOOR PANEL, RH
58036ABRACE SUB-ASSY, REAR FLOOR PANEL, LH
58139APLATE, FRONT FLOOR SIDE, REAR RH
58139BBRACKET, FENDER LINER, LH
58251DBRACE, FLOOR PANEL, FRONT
58303EREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
58304EREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
58305KBRACKET SUB-ASSY, REAR BUMPER ARM
58307JPANEL SUB-ASSY, BODY LOWER BACK
58377EPANEL, BODY LOWER BACK, RH
58378GPANEL, BODY LOWER BACK, LH
61826KPLATE, NOISE CONTROL
65103DBRACKET SUB-ASSY, MOUNTING, RH
65104EBRACKET SUB-ASSY, MOUNTING, LH
5851617010MAT, FLOOR, REAR END
main58516-17010
9011910915
main90119-10915
9017910143
main90179-10143
9033301007
main90333-01007
9033315003
main90333-15003
9033325001
main90333-25001
9033330002
main90333-30002
9033330008
main90333-30008
9033335002
main90333-35002
904670605522
main90467-0605522
9046706055B2
main90467-06055B2
9095001511
main90950-01511
9095001512
main90950-01512
9095001539
main90950-01539
9095001550
main90950-01550
9095001710
main90950-01710
9095001743
main90950-01743
9095001826
main90950-01826
9095001850
main90950-01850
9095001866
main90950-01866
91515B0816
main91515-B0816
91645C0616
main91645-C0616

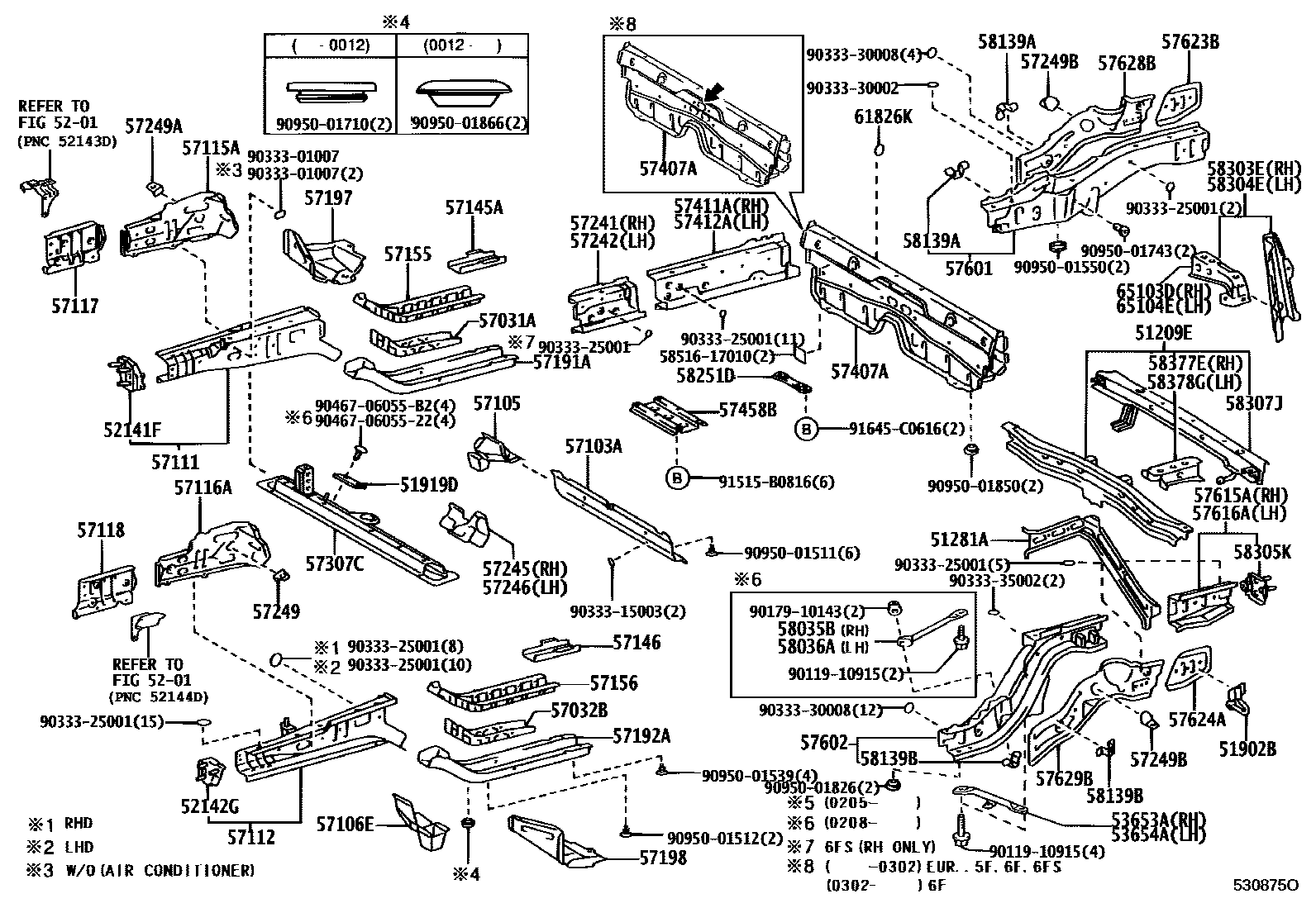

84 parts on this diagram · 2 diagrams in section
