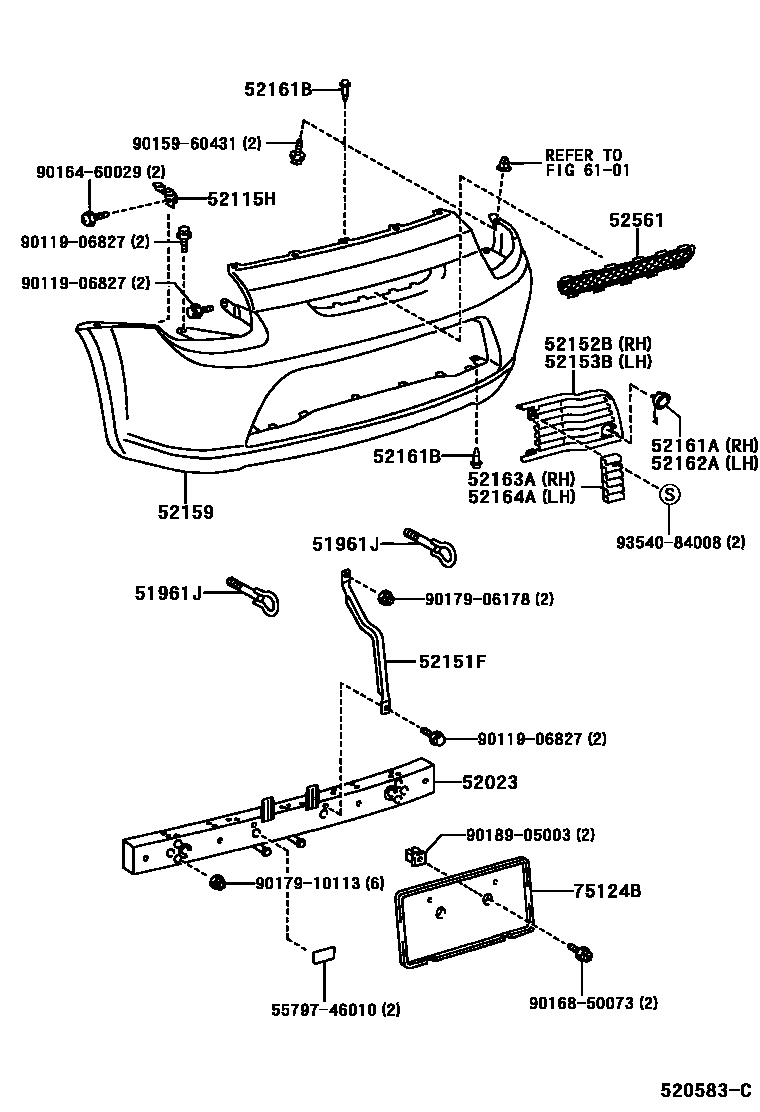

REAR BUMPER & BUMPER STAY

0001 1 0002 1

51961JHOOK, REAR

main51093-17021iZZW30¥2,140199912-200509

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-17060iZZW30¥20,400199912-200402

main52023-17061iZZW30¥20,400200402-200509

52115HSUPPORT, REAR BUMPER SIDE

main52115-17020iZZW30¥440199912-200509

52151FSTAY, REAR BUMPER

main52151-17010iZZW30¥2,080199912-200509

52152BEXTENSION, REAR BUMPER, RH

main52152-17020iZZW30¥7,800199912-200208

main52152-17030-A0iZZW30200208-200509

SUPER WHITE 2,040

sub52152-17900¥3,700

main52152-17030-B0iZZW30200208-200509

GRAY M.M.,1E3

sub52152-17900¥3,700

main52152-17030-B1iZZW30200208-200509

SILVER M.M.,1E7

sub52152-17900¥3,700

main52152-17030-C0iZZW30200208-200509

BLACK,202

sub52152-17900¥3,700

main52152-17030-D0iZZW30200208-200509

SUPER RED 5,3P0

sub52152-17900¥3,700

main52152-17030-F0iZZW30200208-200509

SUPER BRIGHT YELLOW,576

sub52152-17900¥3,700

main52152-17030-G0iZZW30200208-200509

DARK GREEN MC.,6R4

sub52152-17900¥3,700

main52152-17030-J0iZZW30200208-200509

BLUE MC.,8M6

sub52152-17900¥3,700

main52152-17030-J1iZZW30..ARL200208-200509

LT.BLUE M.M.,8R2

sub52152-17900¥3,700

main52152-17900iZZW30¥3,700200208-200509

UNPAINTED

52153BEXTENSION, REAR BUMPER, LH

main52153-17020iZZW30¥7,800199912-200208

main52153-17030-A0iZZW30200208-200509

SUPER WHITE 2,040

sub52153-17900¥3,700

main52153-17030-B0iZZW30200208-200509

GRAY M.M.,1E3

sub52153-17900¥3,700

main52153-17030-B1iZZW30200208-200509

SILVER M.M.,1E7

sub52153-17900¥3,700

main52153-17030-C0iZZW30200208-200509

BLACK,202

sub52153-17900¥3,700

main52153-17030-D0iZZW30200208-200509

SUPER RED 5,3P0

sub52153-17900¥3,700

main52153-17030-F0iZZW30200208-200509

SUPER BRIGHT YELLOW,576

sub52153-17900¥3,700

main52153-17030-G0iZZW30200208-200509

DARK GREEN MC.,6R4

sub52153-17900¥3,700

main52153-17030-J0iZZW30200208-200509

BLUE MC.,8M6

sub52153-17900¥3,700

main52153-17030-J1iZZW30..ARL200208-200509

LT.BLUE M.M.,8R2

sub52153-17900¥3,700

main52153-17900iZZW30¥3,700200208-200509

UNPAINTED

52159COVER, REAR BUMPER

main52159-17910iZZW30¥44,100199912-200509

52161APIECE, REAR BUMPER, RH

main52161-17010iZZW30¥620199912-200208

main52161-17020iZZW30¥1,280200208-200509

52161BPIECE, REAR BUMPER

main52161-16010iZZW30¥120199912-200509

sub52161-0K040¥120

52162APIECE, REAR BUMPER, LH

main52162-17010iZZW30¥620199912-200208

main52162-17020iZZW30¥1,280200208-200509

52163APLATE, REAR BUMPER, RH

main52163-17010iZZW30..ARL¥1,180200008-200208

main52163-17020iZZW30..ARL¥870200208-200509

52164APLATE, REAR BUMPER, LH

main52164-17010iZZW30..ARL¥1,180200008-200208

main52164-17020iZZW30..ARL¥870200208-200509

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-17030iZZW30¥2,510199912-200208

6101

75124BBRACKET, REAR LICENSE PLATE SUPPORT

main75124-17010iZZW30..EUR¥4,630199912-200509

main75124-17020iZZW30..ARL¥4,630200112-200509

5579746010HOLDER, COWL VENTILATOR LOUVER

main55797-46010¥230

9011906827

main90119-06827¥110

9015960431

main90159-60431¥70

9016460029

main90164-60029¥120

9016850073

main90168-50073¥110

9017906178

main90179-06178¥100

9017910113

main90179-10113¥90

9018905003

main90189-05003¥130

9354084008

main93540-84008¥70

24 parts on this diagram · 2 diagrams in section
