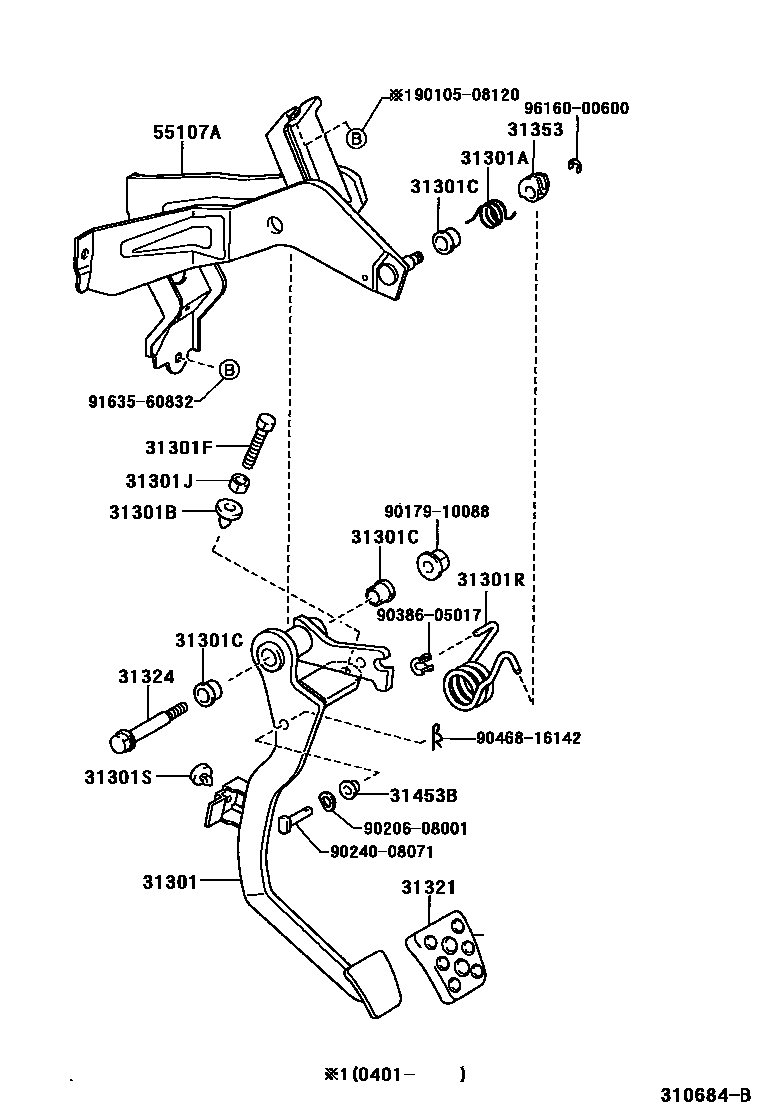

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-17090iZZW30..RHD..5F¥2,290199912-200509

main31301-17100iZZW30..LHD..5F¥2,290199912-200509

31301ASPRING(FOR CLUTCH PEDAL)

main90949-03038iZZW30..6F¥230199912-200509

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iZZW30..5F¥110199912-200509

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iZZW30..LHD..6F¥120199912-200509

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iZZW30..5F¥110199912-200509

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iZZW30..6F¥70199912-200509

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03094iZZW30..RHD..5F¥710199912-200509

main90949-03095iZZW30..LHD..6F¥710199912-200401

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06047iZZW30..5F¥120199912-200509

31321PAD, CLUTCH PEDAL

main31321-53010iZZW30..5F¥2,330199912-200509

31324SHAFT, CLUTCH PEDAL

main90109-10167iZZW30..5F¥190199912-200509

31353HOLDER, CLUTCH PEDAL SPRING

main31353-14010iZZW30..6F¥280199912-200509

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08054iZZW30..6F¥200199912-200509

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-17060iZZW30..RHD..5F¥2,520199912-200401

main55107-17070iZZW30..LHD..6F¥3,370199912-200401

main55107-17080iZZW30..RHD..6F¥4,660200401-200509

main55107-17090iZZW30..LHD..6F¥4,670200401-200509

9010508120

main90105-08120¥90

9017910088

main90179-10088¥100

9020608001

main90206-08001¥120

9024008071

main90240-08071¥230

9038605017

main90386-05017¥110

9046816142

main90468-16142¥70

9163560832

main91635-60832¥80

9616000600

main96160-00600¥80

21 parts on this diagram · 4 diagrams in section
