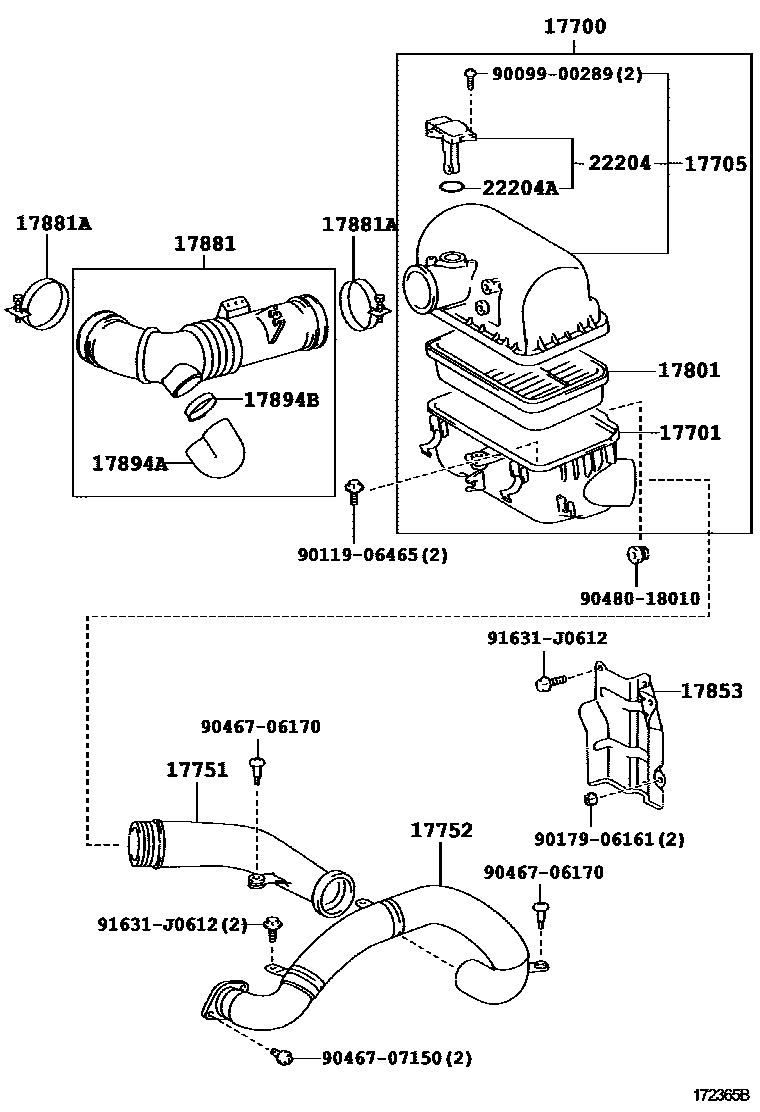

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-22080i1ZZFE..ZZW30199912-200208

17701CASE SUB-ASSY, AIR CLEANER

main17701-22080i1ZZFE..ZZW30199912-200208

17705CAP SUB-ASSY, AIR CLEANER

main17705-22090i1ZZFE..ZZW30199912-200208

17751INLET, AIR CLEANER, NO.1

main17751-22050i1ZZFE..ZZW30199912-200208

17752INLET, AIR CLEANER, NO.2

main17752-22010i1ZZFE..ZZW30199912-200208

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-16020i1ZZFE..ZZW30199912-200208

17853INSULATOR, AIR CLEANER BRACKET

main17853-22050i1ZZFE..ZZW30199912-200208

17881HOSE, AIR CLEANER, NO.1

main17880-22010i1ZZFE..ZZW30199912-200208

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10800×2i1ZZFE..ZZW30199912-200208

17894ARESONATOR, INTAKE AIR, NO.2

main17894-11050i1ZZFE..ZZW30199912-200208

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main90460-50002i1ZZFE..ZZW30199912-200208

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-22010i1ZZFE..ZZW30199912-200208

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1ZZFE..ZZW30199912-200208

9009900289

main90099-00289

9011906465

main90119-06465

9017906161

main90179-06161

9046706170

main90467-06170

9046707150

main90467-07150

9048018010

main90480-18010

91631J0612

main91631-J0612

20 parts on this diagram · 1 diagram in section
