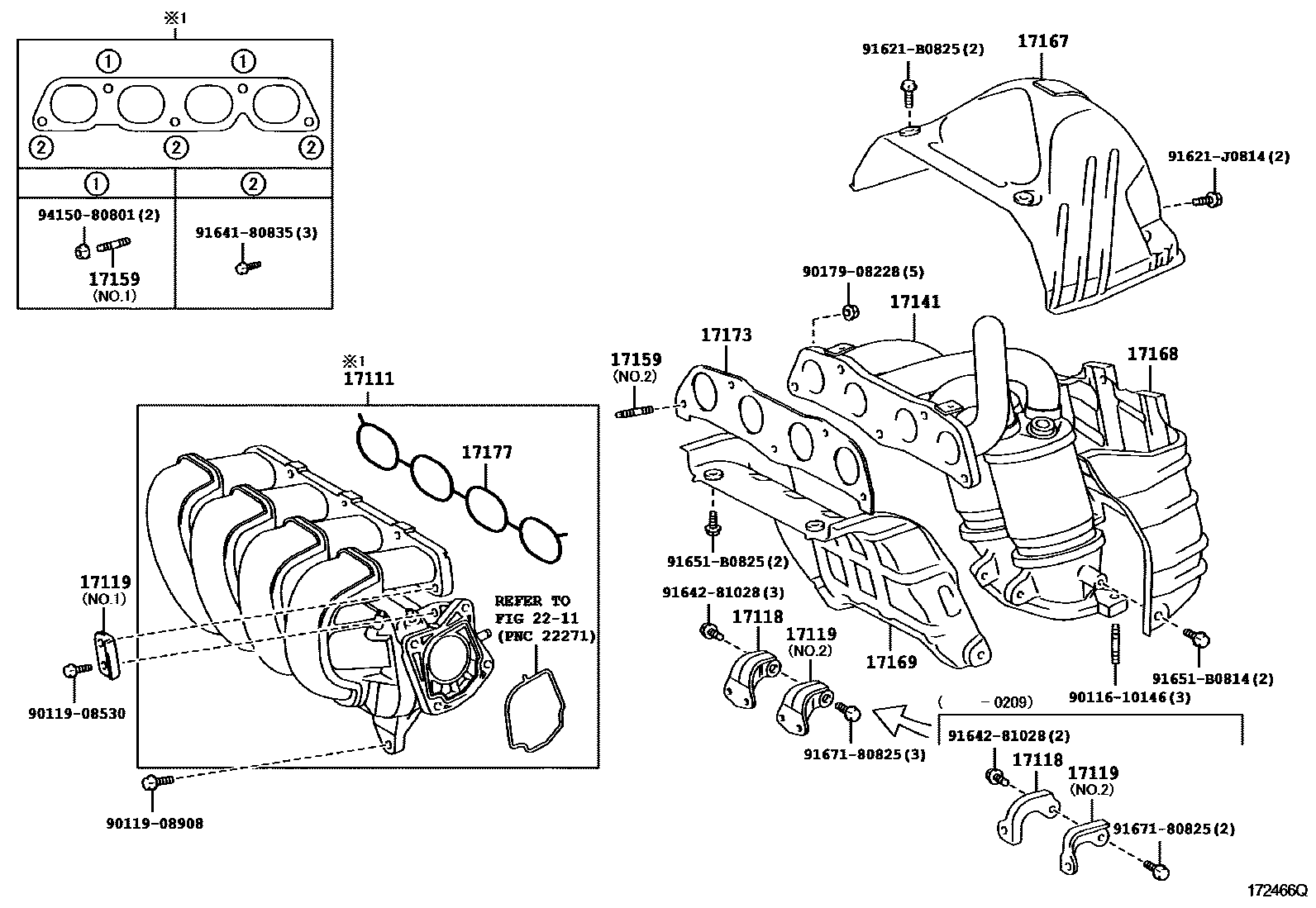

MANIFOLD
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
NO.2
NO.1
17141MANIFOLD, EXHAUST
*115=TOYOTA/00-/Y
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211
9011610146
9011908530
9011908908
9017908228
91621B0825
91621J0814
9164180835
9164281028
91651B0814
91651B0825
9167180825
9415080801
23 parts on this diagram · 1 diagram in section
