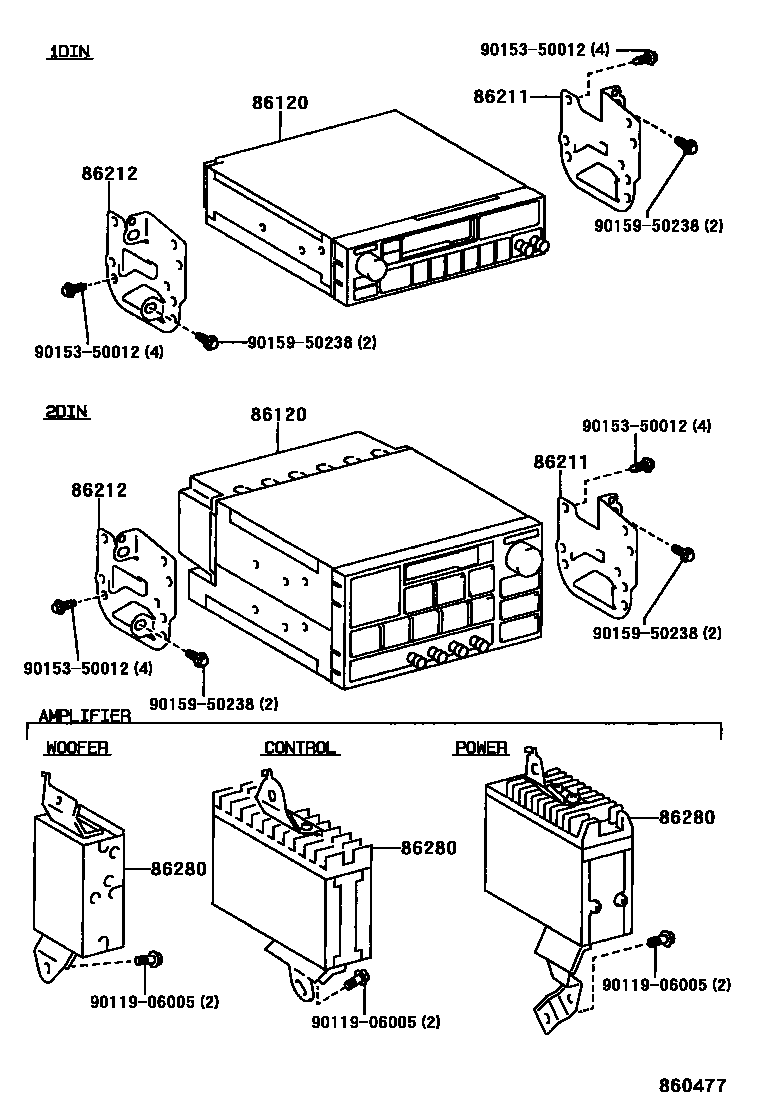

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1

86120RECEIVER ASSY, RADIO

main86120-14820iSW20..G199304-199407

FUJITSU TEN,TYPE E:REFER TO ILLUSTRATION

main86120-14821iSW20..G199407-199505

FUJITSU TEN,TYPE E:REFER TO ILLUSTRATION

main86120-14822iSW20..G199505-199606

FUJITSU TEN,TYPE E:REFER TO ILLUSTRATION

main86120-17220iSW20..G,W198912-199102

FUJITSU TEN,TYPE C:REFER TO ILLUSTRATION

main86120-17230iSW20..TWC..(G,W)198912-199606

MATSUSHITA,TYPE A:REFER TO ILLUSTRATION,MW/UKW

main86120-17240iSW20..G,W198912-199102

MATSUSHITA,TYPE A:REFER TO ILLUSTRATION,MW/UKW/LW

main86120-17310iSW20..TWC199112-199311

MATSUSHITA,ID=57404,TYPE D:REFER TO ILLUSTRATION

main86120-2A040iSW20..TWC..(ARL,W)198912-199112

MATSUSHITA,TYPE B:REFER TO ILLUSTRATION

main86120-2B180iSW20..G,W199102-199304

MATSUSHITA,TYPE F:REFER TO ILLUSTRATION

main86120-2B320iSW20..G,W199102-199304

FUJITSU TEN,TYPE E:REFER TO ILLUSTRATION

main86120-2B450iSW20..G199304-199606

MATSUSHITA,ID=58405,TYPE G:REFER TO ILLUSTRATION

main86120-2B560iSW20..G199606

FUJITSU TEN,ID=18401,TYPE H:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-17040iSW20198912

86212BRACKET, RADIO, NO.2

main86212-17040iSW20198912

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-17040iSW20..G,W198912-199112

WOOFER

main86280-17041iSW20..G,W199112-199606

WOOFER,LH

main86280-17050iSW20..RHD..W199001-199112

CONTROL

main86280-17060iSW20..LHD199001-199112

CONTROL

main86280-17070iSW20..G,W199112-199606

WOOFER,RH

main86280-17080iSW20..G,W199112-199311

POWER

9011906005

main90119-06005

9015350012

main90153-50012

9015950238

main90159-50238

7 parts on this diagram · 4 diagrams in section
