SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1FRONT LUGGAGE 0004 1INSTRUMENT PANEL SWITCH 0005 1COMBINATION & IGNITION SWITCH0006 1COWL RELAY & SWITCH 0007 1DOOR SWITCH & RELAY 0008 1REAR LUGGAGE

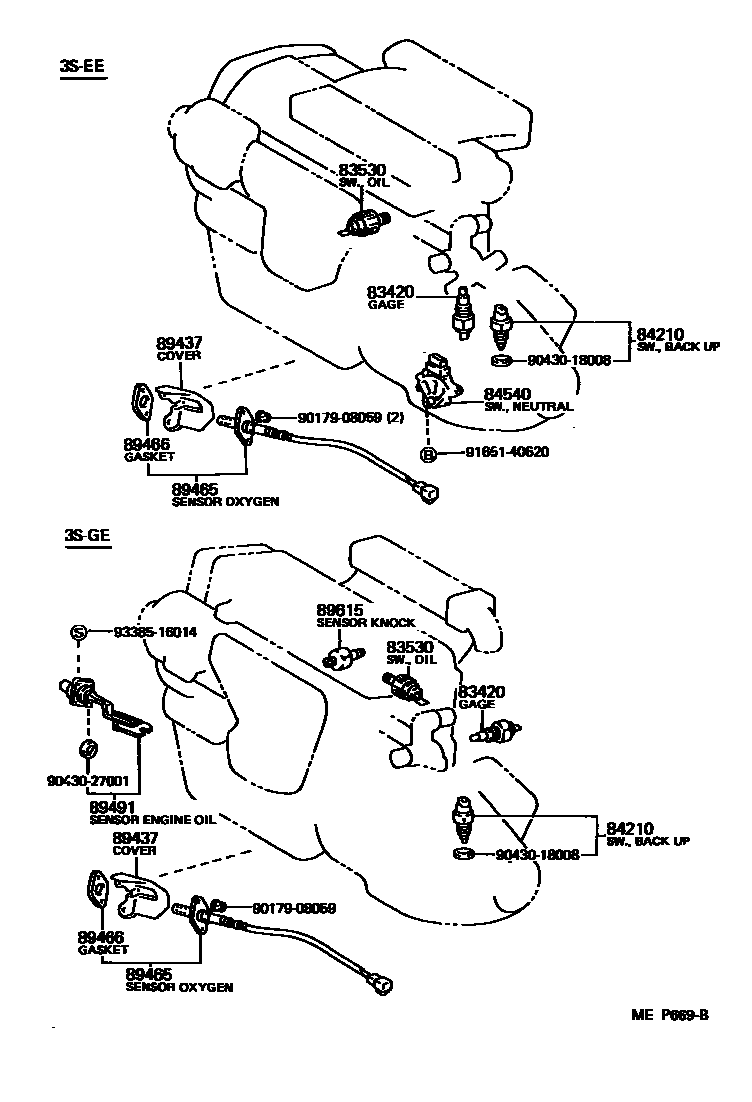

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iSW20..HTWC¥3,730198912-199208

main83420-16040iSW20¥2,340199211

NIPPONDENSO

main83420-16040iSW20¥2,340199311

YAZAKI

main83420-20020iSW20..TWC¥3,610198912-199211

main83420-20030iSW20¥3,710199211-199311

YAZAKI

sub83420-16040¥2,340

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iSW20¥1,300199211-199311

sub83530-30090¥2,100

main83530-28020iSW20¥1,970199802

NIPPONDENSO

main83530-30080iSW20¥1,320198912-199211

sub83530-60040¥3,150

main83530-30090iSW20¥2,100199311-199802

NIPPONDENSO

sub83530-60020¥1,970

main83530-60020iSW20¥1,970199802

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iSW20..5F¥2,910198912

sub84210-52050¥1,360

84540SWITCH ASSY, NEUTRAL START

main84540-12170iSW20..4FC¥24,900198912-199112

89437COVER, SENSOR

main89437-17020iSW20..HTWC;SW20..ARL,G¥930198912-199606

89465SENSOR, OXYGEN

main89465-19415iSW20..ARL,G¥10,700198912-199112

main89465-19425iSW20..HTWC¥10,700198912-199208

main89465-19515iSW20..TWC¥10,700199112-199311

main89465-20560iSW20¥10,700199606

main89465-29825iSW20¥11,200199311-199606

89466GASKET, OXYGEN SENSOR

main89466-20020iSW20..HTWC;SW20..ARL,G¥1,170198912-199606

89491SENSOR, ENGINE OIL LEVEL

main89491-20050iSW20..TWC¥22,600198912-199311

main89491-20060iSW20¥22,600199311

89615SENSOR, KNOCK CONTROL

main89615-20010iSW20..TWC¥16,900198912-199108

main89615-20060iSW20¥16,800199311

main89615-50010iSW20..TWC¥16,800199108-199311

9017908059

main90179-08059¥300

9043018008

main90430-18008¥110

9043027001

main90430-27001¥140

9165140620

main91651-40620¥70

9338516014

main93385-16014¥80

14 parts on this diagram · 8 diagrams in section
