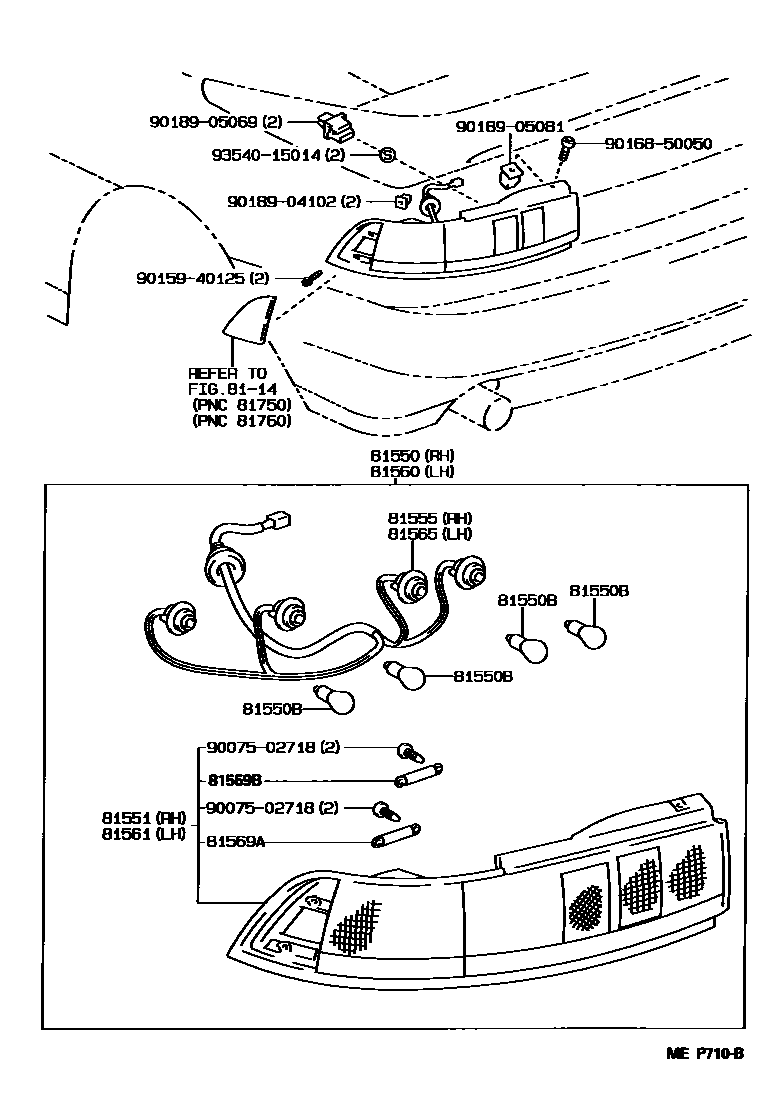

REAR COMBINATION LAMP

0001 1 0002 1

8114

81550LAMP ASSY, REAR COMBINATION, RH

main81550-17060iSW20..RHD..G199112-199311

HONG KONG SPEC

main81550-17060iSW20..LHD..W198912-199112

*82

main81550-17060iSW20..LHD..W198912-199112

SINGAPORE SPEC OR *82

main81550-17080iSW20..G,W198912-199112

sub81550-17081

main81550-17081iSW20..G,W199112-199311

main81550-17090iSW20..ARL198912-199311

main81550-17100iSW20..RHD..G199311-199508

HONG KONG SPEC

main81550-17120iSW20..G199311

main81550-17130iSW20..ARL199311

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iSW20..ARL199112-199311

12V 21W,HONG KONG SPEC

main99132-11210iSW20..ARL198912-199311

12V 21W

main99132-11210iSW20..TWC..W198912-199112

12V 21W,SINGAPORE SPEC OR *82

main99132-21210iSW20..ARL198912-199311

12V 21/5W

main99132-21210iSW20198912-199112

12V 21/5W,SINGAPORE SPEC OR *82

main99132-21210iSW20..G,W199112-199311

12V 21/5W,HONG KONG SPEC

81551LENS, REAR COMBINATION LAMP, RH

main81551-17060iSW20..LHD..W198912-199112

SINGAPORE SPEC OR *82

main81551-17060iSW20..RHD..TWC..W198912-199112

*82

main81551-17060iSW20..RHD..G199112-199311

HONG KONG SPEC

main81551-17080iSW20..G,W198912-199112

sub81551-17081

main81551-17081iSW20..G,W199112-199311

main81551-17090iSW20..ARL198912-199311

main81551-17100iSW20..RHD..G199311-199508

HONG KONG SPEC

main81551-17120iSW20..G199311

main81551-17130iSW20..ARL199311

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-17060iSW20..LHD..W198912-199112

*82

main81555-17060iSW20..LHD..W198912-199112

SINGAPORE SPEC OR *82

main81555-17060iSW20..RHD..G199112-199311

HONG KONG SPEC

main81555-17080iSW20..G,W198912-199311

main81555-17090iSW20..ARL198912-199311

main81555-17100iSW20..RHD..G199311-199508

HONG KONG SPEC

main81555-17120iSW20..G199311

main81555-17130iSW20..ARL199311

81559BBRACKET, REAR COMBINATION LAMP, RH

main81559-17060iSW20198912-199311

main90904-62001iSW20199311

81560LAMP ASSY, REAR COMBINATION, LH

main81560-17100iSW20..RHD..TWC..W198912-199112

SINGAPORE SPEC OR *82

main81560-17100iSW20..LHD..W198912-199112

*82

main81560-17100iSW20..RHD..G199112-199311

HONG KONG SPEC

main81560-17120iSW20..G,W198912-199112

sub81560-17121

main81560-17121iSW20..G,W199112-199311

main81560-17130iSW20..ARL198912-199311

main81560-17140iSW20..RHD..G199311-199508

HONG KONG SPEC

main81560-17160iSW20..G199311

main81560-17170iSW20..ARL199311

81561LENS, REAR COMBINATION LAMP, LH

main81561-17100iSW20..RHD..TWC..W198912-199112

*82

main81561-17100iSW20..RHD..TWC..W198912-199112

SINGAPORE SPEC OR *82

main81561-17100iSW20..RHD..G199112-199311

HONG KONG SPEC

main81561-17120iSW20..G,W198912-199112

sub81561-17121

main81561-17121iSW20..G,W199112-199311

main81561-17130iSW20..ARL198912-199311

main81561-17140iSW20..RHD..G199311-199508

HONG KONG SPEC

main81561-17160iSW20..G199311

main81561-17170iSW20..ARL199311

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-17060iSW20..RHD..G199112-199311

HONG KONG SPEC

main81555-17060iSW20..LHD..W198912-199112

SINGAPORE SPEC OR *82

main81555-17060iSW20..RHD..TWC..W198912-199112

*82

main81555-17080iSW20..G,W198912-199311

main81555-17090iSW20..ARL198912-199311

main81555-17100iSW20..RHD..G199311-199508

HONG KONG SPEC

main81555-17120iSW20..G199311

main81555-17130iSW20..ARL199311

81569ABRACKET, REAR COMBINATION LAMP, LH

main81559-17060iSW20198912-199311

main90904-62001iSW20199311

9007502718

main90075-02718

9015940125

main90159-40125

9016850050

main90168-50050

9018904102

main90189-04102

9018905069

main90189-05069

9018905081

main90189-05081

9354015014

main93540-15014

17 parts on this diagram · 2 diagrams in section
