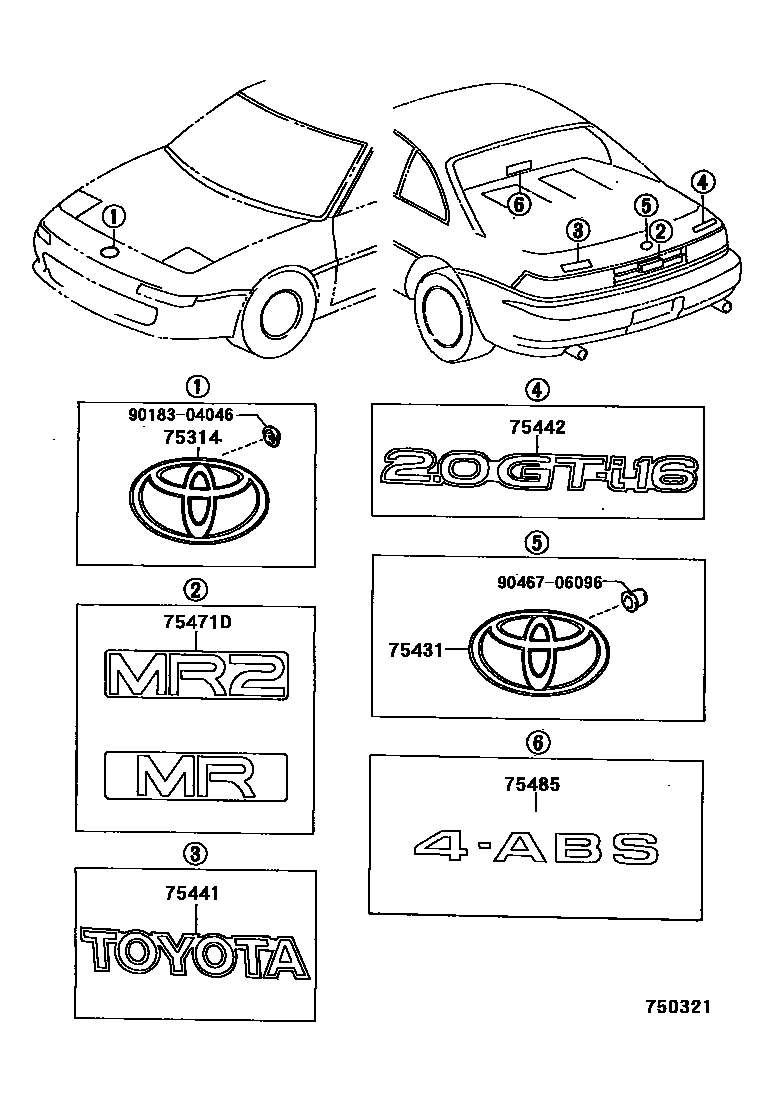

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75314EMBLEM, FRONT BUMPER

main75314-17010iSW20199512-199602

'96 SPRING CAMPAIGN

main75314-17010iSW20199006

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75431-17010iSW20198912

main75431-17020iSW20199512-199602

'96 SPRING CAMPAIGN

sub75431-17010

75441PLATE, REAR NAME, NO.1

main75441-17080-01iSW20198912-199311

TOYOTA,BLACK,202

sub75441-17080

main75441-17080-02iSW20198912-199112

TOYOTA,SUPER RED 3,3J6

sub75441-17080

main75441-17080-03iSW20..G,W198912-199311

TOYOTA,BLUISH GRAY ARGENTUM,187

sub75441-17080

main75441-17080-04iSW20198912-199112

TOYOTA,BLUE M,8H3

sub75441-17080

main75441-17080-07iSW20198912-199112

TOYOTA,D. TURQUQISE M,742

sub75441-17080

main75441-17080-08iSW20198912-199112

TOYOTA,SUPER WHITE 3,043

sub75441-17080

main75441-17080-09iSW20..G199208-199311

TOYOTA,SUPER BRIGHT YELL0W,567

sub75441-17080

main75441-17080-17iSW20199311-199606

TOYOTA,BL.GRAY AMC,187

sub75441-17080

main75441-17080-22iSW20199311

TOYOTA,BLACK,202

sub75441-17080

main75441-17080-A0iSW20199112

TOYOTA,SUPER WHITE 2,040

sub75441-17080

main75441-17080-B0iSW20199712

TOYOTA,SILVER ME.,2CE

sub75441-17080

main75441-17080-B0iSW20199606-199712

TOYOTA,SILVER ME.,199 ,2CE

sub75441-17080

main75441-17080-D0iSW20199112

TOYOTA,SUPER RED 2,3E5

sub75441-17080

main75441-17080-D1iSW20199712

TOYOTA,ORANGE M.M.,3L1

sub75441-17080

main75441-17080-E0iSW20199712

TOYOTA,BEIGE M.M.,4N3

sub75441-17080

main75441-17080-F0iSW20199311-199712

TOYOTA,SUPER BRIGHT YELLOW,576

sub75441-17080

main75441-17080-G0iSW20199311-199712

TOYOTA,DK.GREEN MICA,6M1

sub75441-17080

main75441-17080-H0iSW20199112-199311

TOYOTA,TURQUOISE M.M.,746

sub75441-17080

main75441-17080-J0iSW20199112-199311

TOYOTA,MEDIUM BLUE M.M.,8J2

sub75441-17080

main75441-17080-J1iSW20199311-199606

TOYOTA,STRONG BLUE M,8B6

sub75441-17080

main75441-17080-J2iSW20199606-199712

TOYOTA,PURPLISH BLUE M.M.,8K9

sub75441-17080

main75441-17080-K0iSW20199712

TOYOTA,DK.PURPLE MC.,943

sub75441-17080

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-17070-01iSW20..TWC..(G,W)198912-199311

2.0GT-I-16,BLACK,202

sub75442-17070

main75442-17070-02iSW20..TWC..(G,W)198912-199112

2.0GT-I-16,SUPER RED 3,3J6

sub75442-17070

main75442-17070-03iSW20..TWC..(G,W)198912-199311

2.0GT-I-16,BLUISH GRAY ARGENTUM,187

sub75442-17070

main75442-17070-04iSW20..TWC..(G,W)198912-199112

2.0GT-I-16,BLUE M,8H3

sub75442-17070

main75442-17070-08iSW20..TWC..(G,W)198912-199112

2.0GT-I-16,SUPER WHITE 3,043

sub75442-17070

main75442-17070-09iSW20..TWC..(G,W)198912-199112

2.0GT-I-16,SUPER BRIGHT YELLOW,567

sub75442-17070

main75442-17070-17iSW20..G199311-199606

2.0GT-I-16,BL.GRAY AMC,187

sub75442-17070

main75442-17070-22iSW20..G199311

2.0GT-I-16,BLACK,202

sub75442-17070

main75442-17070-A0iSW20..G199112

2.0GT-I-16,SUPER WHITE 2,040

sub75442-17070

main75442-17070-B0iSW20..G199712

2.0GT-I-16,SILVER ME.,2CE

sub75442-17070

main75442-17070-B0iSW20..G199606-199712

2.0GT-I-16,SILVER ME.,199 ,2CE

sub75442-17070

main75442-17070-D0iSW20..G199112

2.0GT-I-16,SUPER RED 2,3E5

sub75442-17070

main75442-17070-D1iSW20..G199712

2.0GT-I-16,ORANGE M.M.,3L1

sub75442-17070

main75442-17070-E0iSW20..G199712

2.0GT-I-16,BEIGE M.M.,4N3

sub75442-17070

main75442-17070-F0iSW20..G199208-199311

2.0GT-I-16,SUPER BRIGHT YELLOW.,567

sub75442-17070

main75442-17070-F1iSW20..G199311-199712

2.0GT-I-16,SUPER BRIGHT YELLOW,576

sub75442-17070

main75442-17070-G0iSW20..G199311-199712

2.0GT-I-16,DK.GREEN MICA,6M1

sub75442-17070

main75442-17070-H0iSW20..G199112-199311

2.0GT-I-16,TURQUOISE M.M.,746

sub75442-17070

main75442-17070-H1iSW20..TWC..(G,W)198912-199112

2.0GT-I-16,DARK TURQUOISE MICA,742

sub75442-17070

main75442-17070-J0iSW20..G199112-199311

2.0GT-I-16,MEDIUM BLUE M.,8J2

sub75442-17070

main75442-17070-J1iSW20..G199311-199606

2.0GT-I-16,STRONG BLUE M,8B6

sub75442-17070

main75442-17070-J2iSW20..G199606-199712

2.0GT-I-16,PURPLISH BLUE M.M.,8K9

sub75442-17070

main75442-17070-K0iSW20..G199712

2.0GT-I-16,DK.PURPLE MC.,943

sub75442-17070

75471DPLATE, REAR NAME

main75471-17050-02iSW20198912-199112

MR2,W(PAINTED),SUPER RED 2,3J6

main75471-17050-08iSW20198912-199112

MR2,W(PAINTED),SUPER WHITE 3,043

main75471-17050-09iSW20..G199208-199311

MR2,W(PAINTED),SUPER BRIGHT YELLOW,567

main75471-17050-A0iSW20199112-199311

MR2,W(PAINTED),SUPER WHITE 2,040

main75471-17050-D0iSW20199112-199311

MR2,W(PAINTED),SUPER RED 2,3E5

main75471-17050-H0iSW20199112-199311

MR2,W(PAINTED),TURQUOISE M.M.,746

main75471-17050-J0iSW20199112-199311

MR2,W(PAINTED),MEDIUM BLUE M.M.,8J2

main75471-17060-02iSW20..TBR..G199009-199112

MR,BELGIUM SPEC,SUPER RED 3,3J6

main75471-17060-02iSW20..LHD..W198912-199112

MR,BELGIUM SPEC OR FRANCE SPEC,SUPER RED 3,3J6

main75471-17060-08iSW20..TBR..G199009-199112

MR,BELGIUM SPEC,SUPER WHITE 3,043

main75471-17060-08iSW20..LHD..W198912-199112

MR,BELGIUM SPEC OR FRANCE SPEC,SUPER WHITE 3,043

main75471-17060-A0iSW20..LHD199112-199311

MR,BELGIUM SPEC OR FRANCE SPEC,SUPER WHITE 2,040

main75471-17060-D0iSW20..LHD199112-199311

MR,BELGIUM SPEC OR FRANCE SPEC,SUPER RED 2,3E5

main75471-17060-F0iSW20..LHD199208-199311

MR,BELGIUM SPEC OR FRANCE SPEC,SUPER BRIGHT YELLOW,567

main75471-17060-H0iSW20..LHD199112-199311

MR,BELGIUM SPEC OR FRANCE SPEC,TURQUOISE M.M.,746

main75471-17060-J0iSW20..LHD199112-199311

MR,BELGIUM SPEC OR FRANCE SPEC,MEDIUM BLUE M.M.,8J2

main75471-17070iSW20198912-199311

MR2,W(PAINTED)

main75471-17080iSW20..LHD198912-199311

MR,BELGIUM SPEC OR FRANCE SPEC

main75471-17080iSW20..TBR..G199009-199112

MR,BELGIUM SPEC

main75471-17110-B0iSW20199606-199712

MR2,W(PAINTED),GRAY,040 ,202 ,3E5 ,576 ,6M1 ,8K9

sub75471-17110

main75471-17110-B0iSW20199311-199606

MR2,W(PAINTED),GRAY,040 ,202 ,3E5 ,576 ,6M1 ,8B6

sub75471-17110

main75471-17110-B0iSW20199712

MR2,W(PAINTED),GRAY,040 ,202 ,3E5 ,3L1 ,943

sub75471-17110

main75471-17110-B1iSW20199311-199606

MR2,W(PAINTED),DK.GRAY,187

sub75471-17110

main75471-17110-B1iSW20199712

MR2,W(PAINTED),DK.GRAY,2CE ,4N3

sub75471-17110

main75471-17110-B1iSW20199512-199602

MR2,'96 SPRING CAMPAIGN,DK GRAY,D1F

sub75471-17110

main75471-17110-B1iSW20199606-199712

MR2,W(PAINTED),DK.GRAY,199 ,2CE

sub75471-17110

main75471-17120-B0iSW20..LHD199311-199606

MR,BELGIUM SPEC OR FRANCE SPEC,GRAY,040 ,202 ,3E5 ,576 ,6M1 ,8B6

main75471-17120-B0iSW20..LHD199606-199712

MR,BELGIUM SPEC OR FRANCE SPEC,GRAY,040 ,202 ,3E5 ,576 ,6M1 ,8K9

main75471-17120-B0iSW20..LHD199712

MR,BELGIUM SPEC OR FRANCE SPEC,GRAY,040 ,202 ,3E5 ,3L1 ,943

main75471-17120-B1iSW20..LHD199606-199712

MR,BELGIUM SPEC OR FRANCE SPEC,DK.GRAY,199 ,2CE

main75471-17120-B1iSW20..LHD199311-199606

MR,BELGIUM SPEC OR FRANCE SPEC,DK.GRAY,187

main75471-17120-B1iSW20..LHD199712

MR,BELGIUM SPEC OR FRANCE SPEC,DK.GRAY,2CE ,4N3

75485PLATE, BACK WINDOW NAME

main75485-17030iSW20198912-199112

sub75485-20190

9018304046

main90183-04046

9046706096

main90467-06096

8 parts on this diagram · 1 diagram in section
