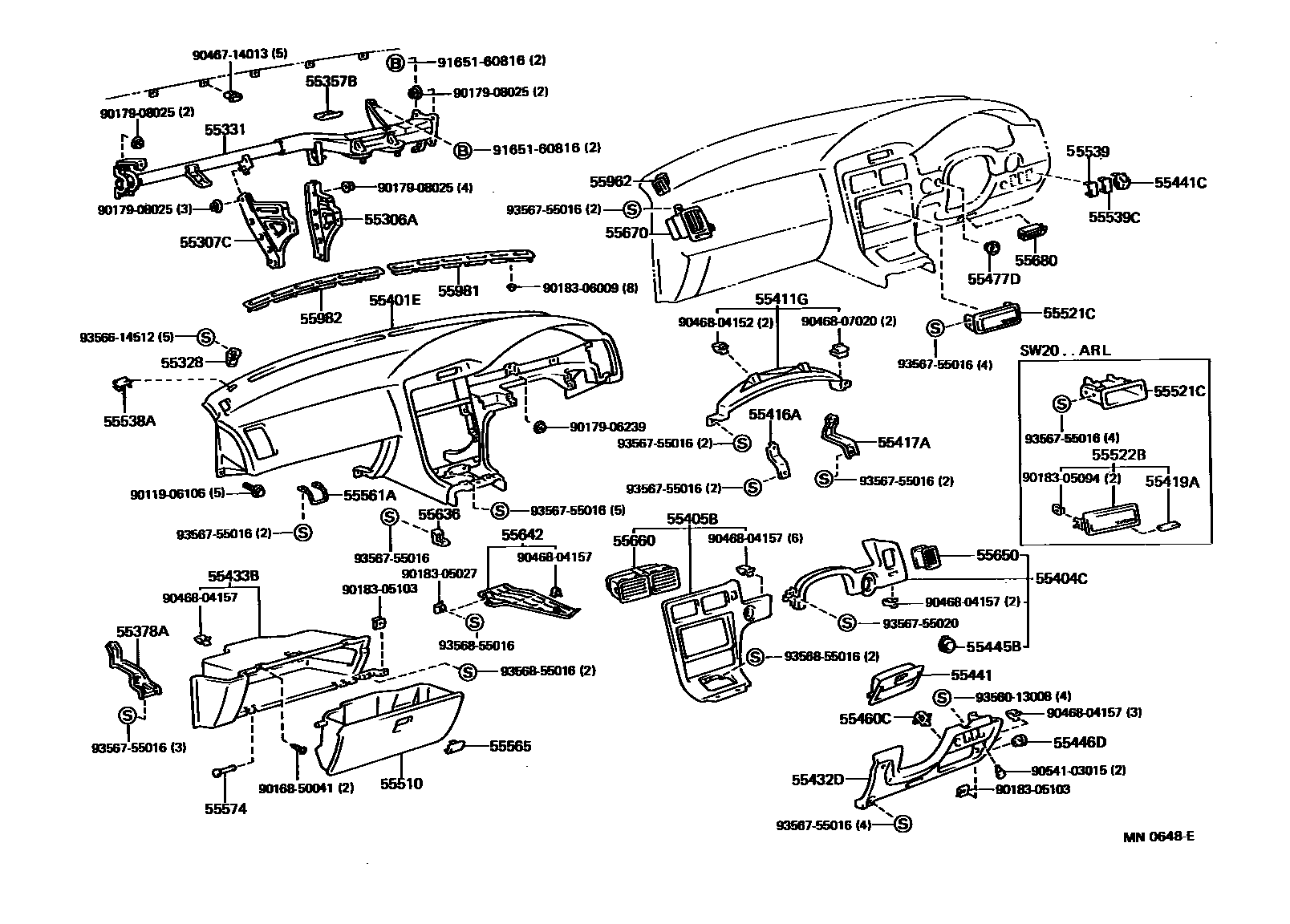

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-17040iSW20..RHD198912

main55306-17050iSW20..LHD198912

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-17030iSW20..RHD198912-199112

main55307-17031iSW20..RHD199112

main55307-17040iSW20..LHD198912-199112

main55307-17041iSW20..LHD199112

55328PIN, INSTRUMENT PANEL, NO.1

main55328-14030×5iSW20198912

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-17040iSW20..RHD198912-199112

main55330-17050iSW20..LHD198912

main55330-17060iSW20..RHD199112

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-22010×2iSW20198912

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-17010iSW20..RHD198912

main55378-17020iSW20..LHD198912

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-17030-01iSW20..RHD198912-199311

BLACK,TRIM2#

sub55846-17040

main55401-17030-04iSW20..RHD198912-199311

DARK BLUE,TRIM8#

sub55846-17040

main55401-17030-C0iSW20..RHD199311-199603

BLACK,TRIM2#

sub55846-17040

main55401-17040-01iSW20..LHD198912-199311

BLACK,TRIM2#

main55401-17040-04iSW20..LHD198912-199311

DARK BLUE,TRIM8#

main55401-17040-C0iSW20..LHD199311

BLACK,TRIM2#

main55401-17060-C0iSW20..RHD199603

BLACK,TRIM2#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-17020iSW20..RHD198912-199512

main55404-17030iSW20..LHD198912

main55404-17040iSW20..RHD199606

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-17040iSW20..ARL198912

main55405-17060iSW20..RHD..(G,W)198912

main55405-17070iSW20..LHD198912-199512

main55405-17071iSW20..LHD199512

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-17060iSW20..RHD198912

main55411-17070iSW20..LHD198912

55416ARETAINER, METER HOOD, NO.1

main55416-17020iSW20198912

55417ARETAINER, METER HOOD, NO.2

main55417-17010iSW20198912

55419ACUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-14020×2iSW20..RHD..G199311-199405

HONG KONG SPEC

55432DPANEL, INSTRUMENT PANEL FINISH, LOWER NO.1

main55432-17030-01iSW20..RHD198912-199311

BLACK,TRIM2#

main55432-17030-04iSW20..RHD198912-199311

DARK BLUE,TRIM8#

main55432-17030-C0iSW20..RHD199311

BLACK,TRIM2#

main55432-17040-01iSW20..LHD198912-199311

BLACK,TRIM2#

main55432-17040-04iSW20..LHD198912-199311

DARK BLUE,TRIM8#

main55432-17040-22iSW20..LHD199311

BLACK,TRIM2#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-17040-01iSW20..RHD198912-199311

BLACK,TRIM2#

main55433-17040-04iSW20..RHD198912-199311

DARK BLUE,TRIM8#

main55433-17040-22iSW20..RHD199311

BLACK,TRIM2#

main55433-17050-01iSW20..LHD198912-199311

BLACK,TRIM2#

main55433-17050-04iSW20..LHD198912-199311

DARK BLUE,TRIM8#

main55433-17050-22iSW20..LHD199311

BLACK,TRIM2#

55441BOX, INSTRUMENT PANEL

main55440-17020-01iSW20..RHD198912-199311

BLACK,TRIM2#

main55440-17020-04iSW20..RHD198912-199311

DARK BLUE,TRIM8#

main55440-17020-C0iSW20..RHD199311

BLACK,TRIM2#

55441CBOX, INSTRUMENT PANEL COIN

main55441-20140-11iSW20..LHD..W;SW20..RHD..TWC198912-199311

BLACK,TRIM2#

main55441-20140-34iSW20..LHD..W;SW20..RHD..TWC198912-199311

DARK BLUE,TRIM8#

main55441-20140-C0iSW20..RHD199311-199506

BLACK,TRIM2#

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-17020iSW20199606

main55445-22090iSW20..ARL199512-199606

55446DSHAFT, INSTRUMENT PANEL BOX

main55446-17020×2iSW20..RHD198912

55460CLOCK ASSY, INSTRUMENT PANEL BOX

main55460-17010iSW20..RHD198912

55477DCOVER, CIGARETTE LIGHTER HOLE

main55477-17030iSW20..LHD198912

main55477-17040iSW20..RHD198912

sub55477-12080

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-17030-01iSW20198912-199311

BLACK,TRIM2#

main55550-17030-04iSW20198912-199311

DARK BLUE,TRIM8#

main55550-17030-22iSW20199311

BLACK,TRIM2#

55521CCOVER, STEREO OPENING

main55022-17010iSW20..G,W198912

main55521-16030iSW20..RHD..G199311

HONG KONG SPEC

55522BCOVER, RADIO TUNER OPENING

main55522-20070iSW20..RHD..G199405

HONG KONG SPEC

main55522-32010iSW20..RHD..G199311-199405

HONG KONG SPEC

55538ACOVER, COOLER SWITCH HOLE

main55538-32020-01iSW20..RHD198912-199311

BLACK,TRIM2#

main55538-32020-04iSW20..RHD198912-199311

DARK BLUE,TRIM8#

main55538-32020-22iSW20..RHD199311

BLACK,TRIM2#

55539COVER, SPARE SWITCH HOLE

main55539-20080-01iSW20198912-199311

BLACK,TRIM2#

sub55539-12130

sub55539-32010

main55539-20080-04iSW20198912-199311

DARK BLUE,TRIM8#

sub55539-12130

sub55539-32010

main55539-20080-C0iSW20199311

BLACK,TRIM2#

sub55539-12130

sub55539-32010

55539CCOVER, SPARE SWITCH HOLE

main55539-20080-01iSW20198912-199311

BLACK,TRIM2#

sub55539-12130

sub55539-32010

main55539-20080-04iSW20198912-199311

DARK BLUE,TRIM8#

sub55539-12130

sub55539-32010

main55539-20080-C0iSW20..ARL199311

BLACK,TRIM2#

sub55539-12130

sub55539-32010

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-17020iSW20198912

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-20070-01iSW20198912-199311

BLACK,TRIM2#

main55565-20070-04iSW20198912-199311

DARK BLUE,TRIM8#

main55565-20070-22iSW20199311

BLACK,TRIM2#

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iSW20198912

55636BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1

main55636-17010iSW20198912-199302

55642COVER, INSTRUMENT PANEL UNDER, NO.2

main55642-17010-01iSW20..RHD198912-199302

BLACK,TRIM2#

main55642-17010-04iSW20..RHD198912-199302

DARK BLUE,TRIM8#

main55642-17020-01iSW20..LHD198912-199302

BLACK,TRIM2#

main55642-17020-04iSW20..LHD198912-199302

DARK BLUE,TRIM8#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-17020iSW20..RHD198912

main55650-17030iSW20..LHD198912

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-17030iSW20..RHD..G199311

HONG KONG SPEC

main55660-17040iSW20..G,W198912

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-17050-01iSW20..RHD198912-199311

BLACK,TRIM2#

main55670-17050-04iSW20..RHD198912-199311

DARK BLUE,TRIM8#

main55670-17050-22iSW20..RHD199311

BLACK,TRIM2#

main55670-17060-01iSW20..LHD198912-199311

BLACK,TRIM2#

main55670-17060-04iSW20..LHD198912-199311

DARK BLUE,TRIM8#

main55670-17060-22iSW20..LHD199311

BLACK,TRIM2#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-17050-01iSW20198912-199311

BLACK,TRIM2#

main55680-17050-04iSW20198912-199311

DARK BLUE,TRIM8#

main55680-17050-22iSW20199311

BLACK,TRIM2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-17010-01iSW20..RHD198912-199311

BLACK,TRIM2#

main55962-17010-04iSW20..RHD198912-199311

DARK BLUE,TRIM8#

main55962-17010-22iSW20..RHD199311

BLACK,TRIM2#

main55962-17020-01iSW20..LHD198912-199311

BLACK,TRIM2#

main55962-17020-04iSW20..LHD198912-199311

DARK BLUE,TRIM8#

main55962-17020-22iSW20..LHD199311

BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-17010-01iSW20..RHD198912-199311

BLACK,TRIM2#

main55981-17010-04iSW20..RHD198912-199311

DARK BLUE,TRIM8#

main55981-17010-22iSW20..RHD199311

BLACK,TRIM2#

main55981-17020-01iSW20..LHD198912-199311

BLACK,TRIM2#

main55981-17020-04iSW20..LHD198912-199311

DARK BLUE,TRIM8#

main55981-17020-22iSW20..LHD199311

BLACK,TRIM2#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-17010-01iSW20..RHD198912-199311

BLACK,TRIM2#

main55982-17010-04iSW20..RHD198912-199311

DARK BLUE,TRIM8#

main55982-17010-22iSW20..RHD199311

BLACK,TRIM2#

main55982-17020-01iSW20..LHD198912-199311

BLACK,TRIM2#

main55982-17020-04iSW20..LHD198912-199311

DARK BLUE,TRIM8#

main55982-17020-22iSW20..LHD199311

BLACK,TRIM2#

9011906106

main90119-06106

9016850041

main90168-50041

9017906239

main90179-06239

9017908025

main90179-08025

9018305027

main90183-05027

9018305094

main90183-05094

9018305103

main90183-05103

9018306009

main90183-06009

9046714013

main90467-14013

9046804152

main90468-04152

9046804157

main90468-04157

9046807020

main90468-07020

9054103015

main90541-03015

9165160816

main91651-60816

9356013008

main93560-13008

9356614512

main93566-14512

9356755016

main93567-55016

9356755020

main93567-55020

9356855016

main93568-55016

58 parts on this diagram · 2 diagrams in section
